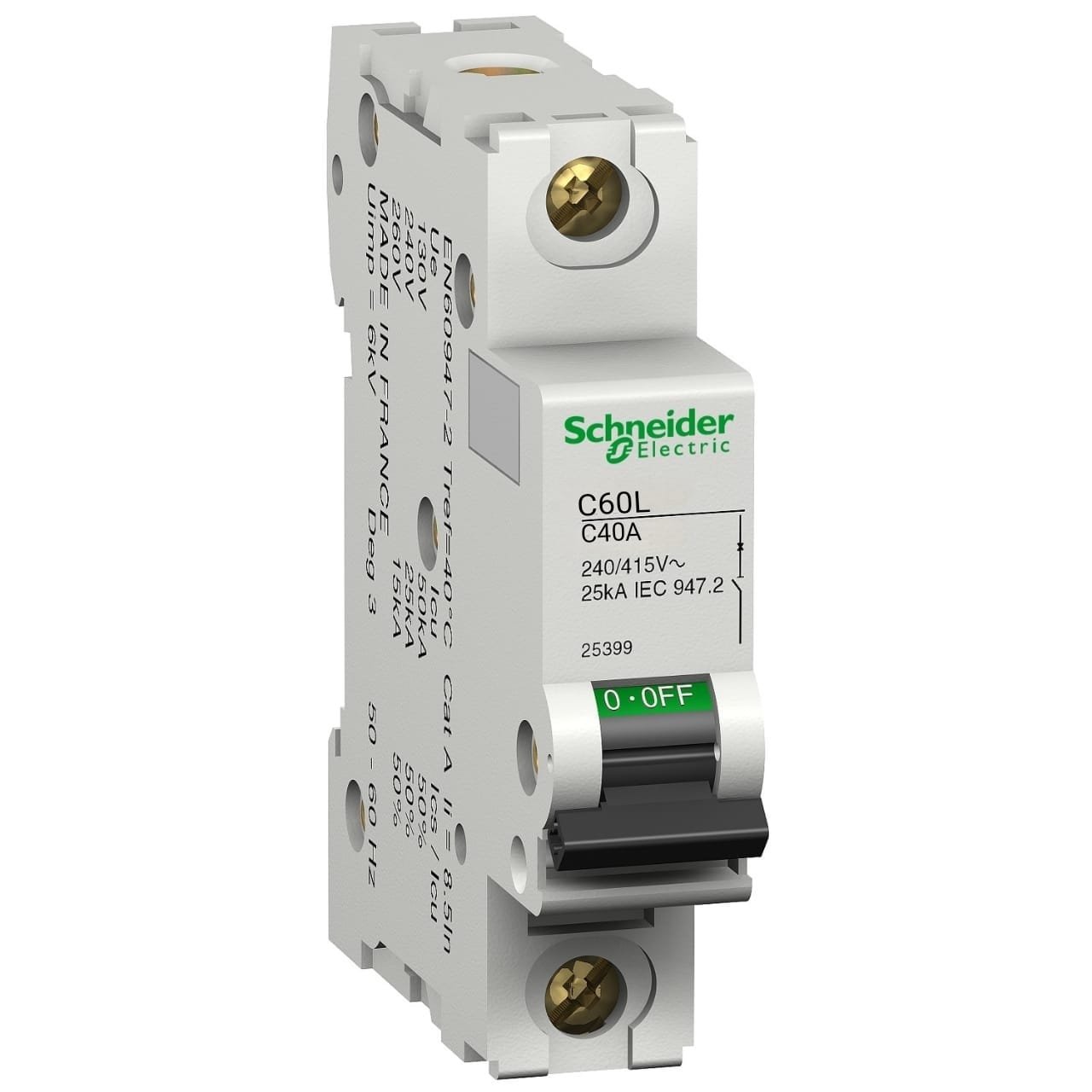

Schneider 25402 | C60 – circuit breaker – C60L – 1P – 40A – C curve
Schneider 25402 | C60 – circuit breaker – C60L – 1P – 40A – C curve
Description
Schneider 25402 | C60 – circuit breaker – C60L – 1P – 40A – C curve
The Schneider 25402 | C60 circuit breaker is a high-quality electrical protection device from Schneider Electric, widely used in various applications to safeguard circuits against overloads and short circuits. This breaker is known for its reliability and efficiency, making it ideal for residential, commercial, and industrial installations.
Technical Specifications
- Model: Schneider 25402 | C60 – C60L
- Poles: 1P (Single Pole)
- Rated Current: 40A
- Tripping Curve: C Curve (suitable for moderate inductive loads)
- Rated Voltage: Up to 240/415V AC
- Breaking Capacity: 10kA
- Mounting Type: DIN Rail
- Protection Class: IP20 when installed inside a distribution board
Features
- High-Performance Protection
- Effectively safeguards circuits from overloads and short circuits.
- Quick response time for disconnection in case of faults.
- Reliable & Standards-Compliant Design
- Complies with IEC 60898-1 standards for safety and quality.
- Built with heat- and fire-resistant materials for enhanced durability.
- Easy Installation & Maintenance
- Compact design for easy mounting on DIN Rail systems.
- User-friendly toggle switch for simple operation.
- Efficient Electrical Distribution
- Ideal for low-voltage electrical systems.
- Reduces the risk of electrical failures and protects connected equipment.
Applications
Residential Buildings: Protecting household electrical wiring.
Commercial Facilities: Ensuring electrical safety in offices and retail spaces.
Industrial Installations: Safeguarding circuits powering machinery and equipment.
Electrical Distribution Panels: A crucial component in power distribution systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | C60 |
|---|---|
| Range | Multi9 |
| product name | C60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | C60L |
| Device application | Distribution |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 40 A at 40 °C |
| network type | AC DC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 6 kA Icu at 400...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 230...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 60 V DC 1P conforming to EN/IEC 60947-2 50 kA Icu at 130 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 230...240 V AC 50/60 Hz 400...415 V AC 50/60 Hz 130 V AC 50/60 Hz |
| Magnetic tripping limit | 7...10 x In |
| [Ics] rated service breaking capacity | 25 kA conforming to EN/IEC 60947-2 - 130 V AC 50/60 Hz 3 kA conforming to EN/IEC 60947-2 - 400...415 V AC 50/60 Hz 12.5 kA conforming to EN/IEC 60947-2 - 230...240 V AC 50/60 Hz |
| Limitation class | 3 conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | NO |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 73 mm |
| Product weight | 0.12 kg |
| Mechanical durability | 20000 cycles |
| Connections - terminals | Tunnel type terminals25 mm² flexible Tunnel type terminals35 mm² rigid |
| Tightening torque | Power circuit: 3.5 N.m upside 3.5 N.m downside |
| Product compatibility | C60 accessories C60 auxiliary |
| Standards | EN 60898 EN/IEC 60947-2 |
|---|---|
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 1.7 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 0.118 kg |
| Warranty | 18 months |
|---|
