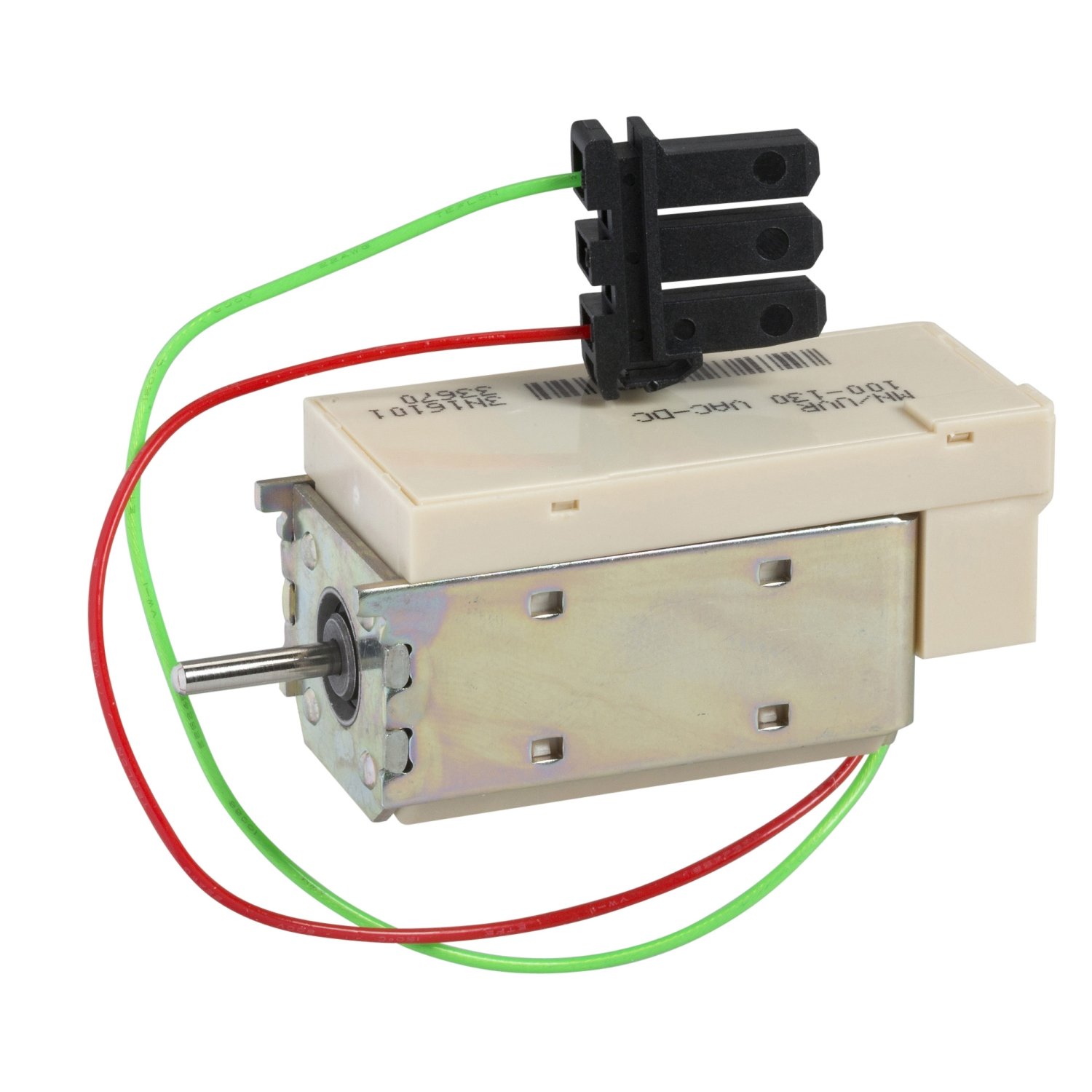

Schneider 33662 | voltage release MX or XF – 200..250 V DC/AC 50/60 Hz

1. Technical Specifications

• Model: Schneider 33662
• Type: Voltage Release Unit (MX or XF)
• Operating Voltage: 200-250V AC/DC
• Frequency: 50/60Hz
• Functionality:
  • MX (Shunt Trip): Trips the circuit breaker when voltage is applied.
  • XF (Closing Release): Closes the circuit breaker when voltage is applied.
• Compatibility: Works with Compact and Masterpact circuit breakers
• Connection Type: Direct connection to breaker control circuits
• Power Consumption: Low energy usage for efficient operation
• Standards Compliance: IEC 60947-2

2. Key Features

A. Enhanced Electrical Control and Safety

• Allows remote tripping or closing of circuit breakers, ensuring improved safety and operational efficiency.

B. Wide Compatibility with Circuit Breakers

• Designed to work with various Schneider Electric circuit breakers, offering flexibility in electrical installations.

C. Supports Multiple Voltage Systems

• Operates on both AC and DC power (200-250V), making it suitable for different applications and electrical grids.

D. Low Power Consumption

• Optimized for energy-efficient performance, minimizing power waste while maintaining reliability.

E. Durable and Reliable Performance

• Built with high-quality electrical components to ensure long-term operation in industrial and commercial environments.

3. Applications and Uses

The Schneider 33662 Voltage Release Unit is widely used in various electrical systems, including:

A. Electrical Protection Systems

• Ensures automatic circuit breaker tripping when required, enhancing electrical safety.

B. Remote Control of Circuit Breakers

• Can be integrated into control and automation systems for remote breaker operation.

C. Industrial Safety Mechanisms

• Helps disconnect power during emergencies, reducing electrical hazards.

D. Smart Power Distribution Panels

• Used in modern power distribution networks requiring automatic and remote-controlled breaker operation

4. Key Benefits of Schneider 33662

Safe and precise circuit breaker control
Compatible with AC (200-250V) and DC (200-250V) systems
Robust design for long-lasting performance
Low power consumption for energy efficiency
Easy installation with various breaker models
Complies with global electrical safety standards (IEC 60947-2)
