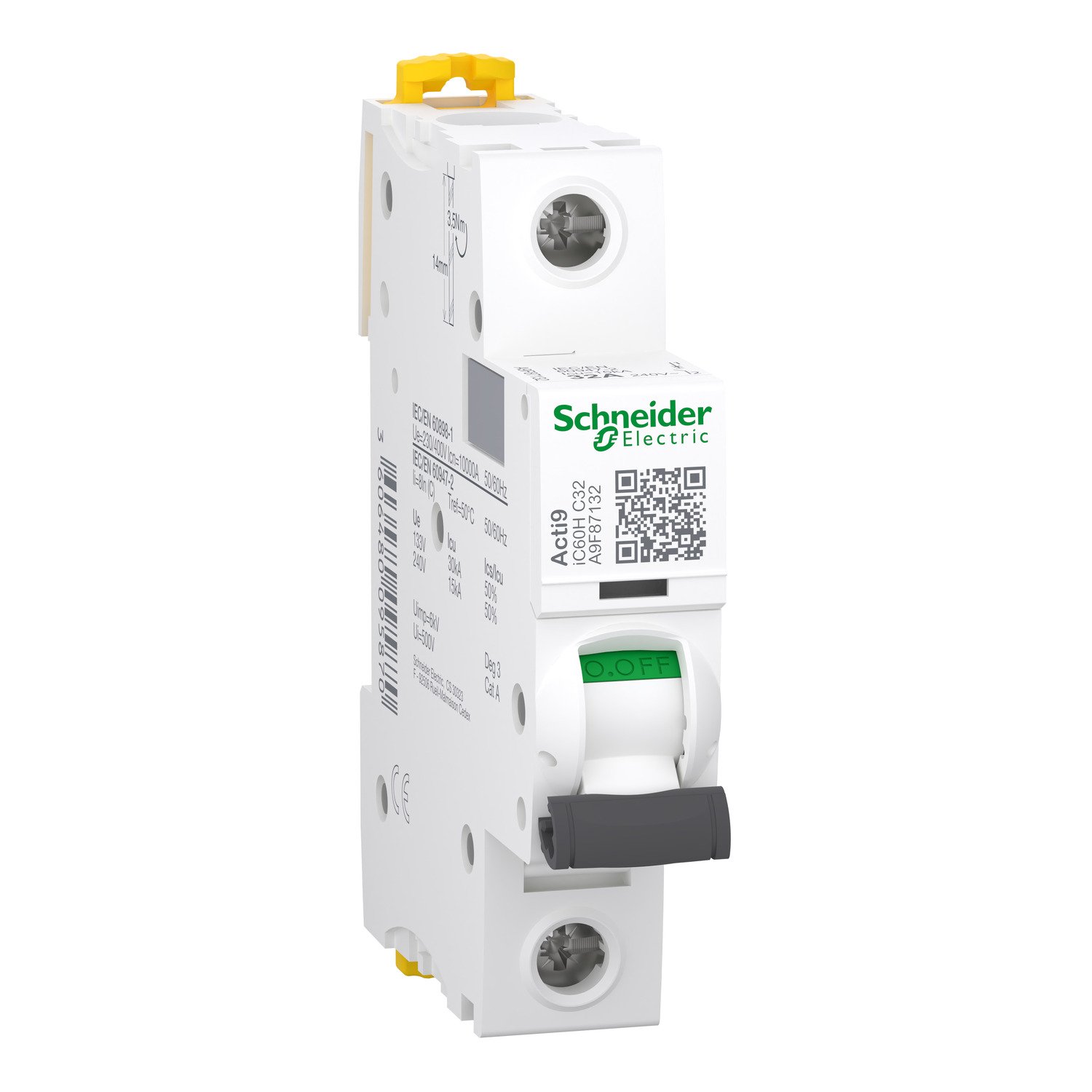

Schneider A9F87132 | Miniature circuit-breaker, Acti9 iC60H, 1P, 32 A, C curve, 10000 A (IEC 60898-1), 15 kA (IEC 60947-2)

2. Technical Specifications A9F87132

• Product Type: Miniature Circuit Breaker (MCB)

• Model Number: A9F87132

• Product Series: Acti9 iC60H

• Poles: 1P (Single Pole)

• Rated Current: 32 A

• Tripping Curve: Type C

• Breaking Capacity (IEC 60898-1): 10,000 A

• Breaking Capacity (IEC 60947-2): 15,000 A

• Rated Operating Voltage: Up to 240/415 V AC

• Frequency: 50/60 Hz

• Mechanical Endurance: Up to 20,000 cycles

• Electrical Endurance: Up to 10,000 cycles

• Insulation Voltage: 500 V

• Degree of Protection: IP20 (inside enclosure)

• Operating Temperature Range: -25°C to +70°C

• Mounting Type: DIN rail

• Conformity to Standards: IEC 60898-1, IEC 60947-2

3. Key Features

High Breaking Capacity: Withstands fault currents up to 15 kA, making it suitable for areas with potential high short-circuit risks.

1. C Curve Tripping: Ideal for general loads with moderate inrush current like lighting, HVAC units, and motor-driven appliances.

2. Compact and Modular Design: Saves space and simplifies installation in standard distribution boards using DIN rails.

3. Durable Construction: Built to endure frequent switching operations in demanding environments.

4. Clear Status Indicator: Enables fast diagnostics and improved maintenance efficiency.

5. Versatile Application Range: Supports wide operating voltages and environmental conditions.

6. Enhanced Safety: Offers consistent, reliable circuit protection aligned with international safety standards.

4. Applications

• Commercial Buildings: Protection for power sockets, lighting, HVAC circuits, and other general-purpose loads.

• Industrial Panels: Suitable for motor starters, control panels, and equipment protection in light-duty industrial setups.

• Residential Use: Can be used for high-load appliances like water heaters, electric ovens, or air conditioning units.

• Sub-distribution Boards: Effective in both main and sub-distribution boards, especially where higher current loads are present.

• Renewable Energy and Backup Systems: Compatible with circuits in solar installations or UPS setups where 32 A load circuits are common.
