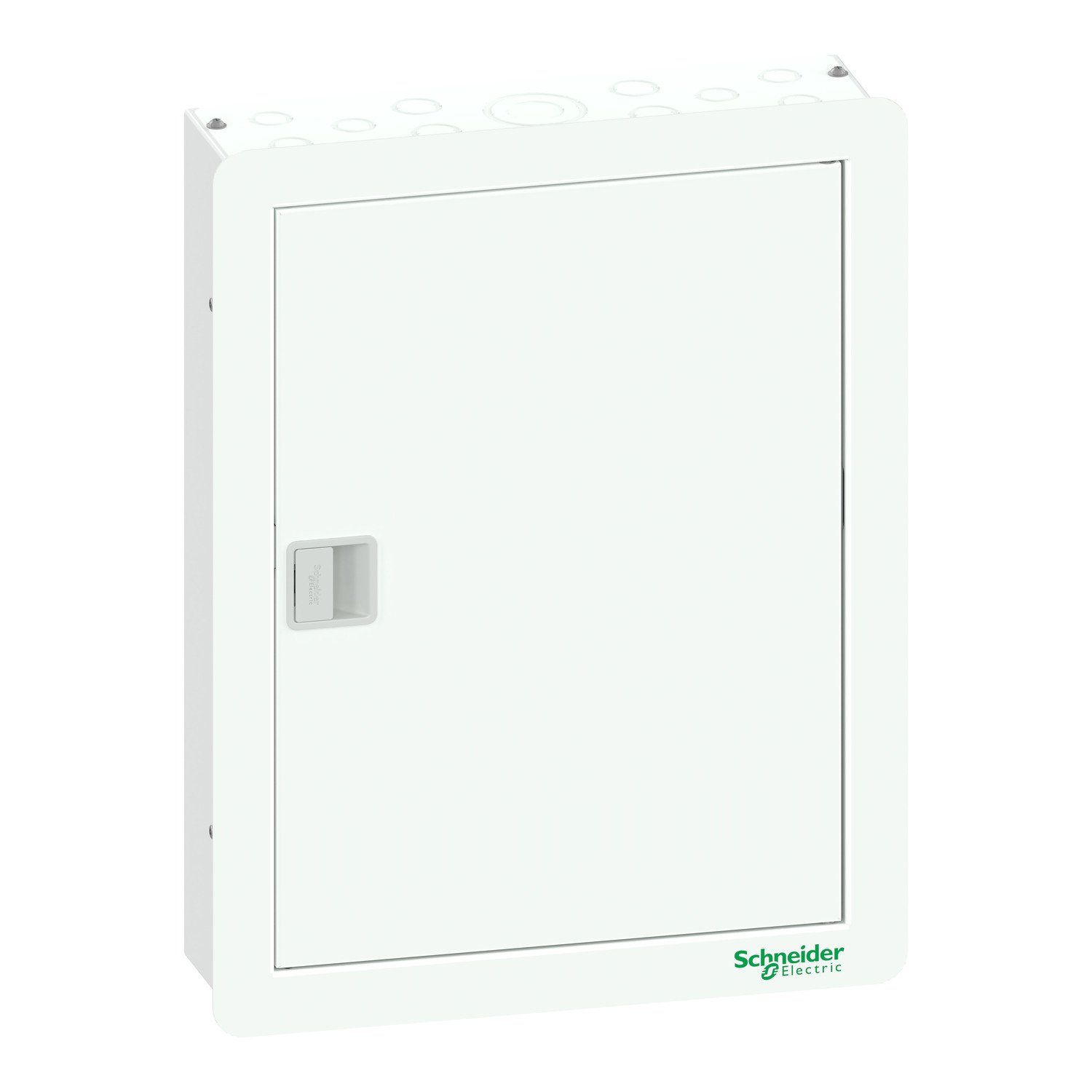

Schneider A9HD324XIR125 | Acti 9 Vertical TPN 24way with 3P 125A Dual incomer provision

Technical Specifications

1. Product Type: TPN Distribution Board

2. Brand Series: Acti9

3. Model: A9HD324XIR125

4. Mounting Type: Wall-mounted

5. Orientation: Vertical

6. Number of Ways: 24 outgoing ways

7. Main Incomer Rating: 125 Amperes

8. Poles: Three-phase + Neutral (TPN)

9. Incomer Type: Dual incomer provision (supports 2 incoming sources, such as mains and generator)

10. Busbar Type: Copper busbar, fully shrouded

11. Enclosure Material: Sheet steel, powder-coated finish

12. Degree of Protection: IP43 (can vary based on installation location and accessories)

13. Rated Operational Voltage: Up to 415V AC, 50/60 Hz

14. Compliance Standards:

    • IEC 61439-3

    • IEC 60947-1

15. Provision for Metering: Optional, depending on configuration and accessories

16. Dimensions and Weight: Varies by configuration, but designed to save space while offering ample wiring room

17. Color: Light grey (RAL 7035)

18. Cable Entry: Top and bottom knockouts for easy cable management

Key Features

• Dual Incomer Capability: Enables connection of two power sources, such as utility and backup generator or dual utility feeds, with optional interlock for safety.

• Spacious Design: Allows for easy wiring and maintenance, even when fully loaded with devices.

• High Reliability: Designed for durability and long service life under demanding conditions.

• Modular Construction: Compatible with Schneider Acti9 modular devices, such as MCBs, RCDs, and RCBOs.

• User Safety: Internal segregation of busbars and terminals ensures safety during operation and maintenance.

• Future Expansion: Extra space for additional modules and accessories allows for flexibility in future upgrades.

• Efficient Heat Dissipation: Ventilation slots are provided to prevent overheating in high-load environments.

• Clean and Professional Appearance: Suitable for use in front-of-house or commercial applications where aesthetics matter.

• Factory-assembled Quality: Fully assembled and tested by Schneider to ensure consistency and compliance.

Applications

The Schneider A9HD324XIR125 TPN distribution board is engineered for a wide range of applications where power reliability and structured distribution are critical:

• Commercial Buildings: Offices, retail outlets, and shopping complexes requiring centralized distribution of 3-phase loads.

• Industrial Installations: Small to medium-scale manufacturing units with machinery, lighting, and motor control.

• Hospitals and Clinics: Where power backup via dual incomer is critical for sensitive equipment.

• Educational Institutions: For campus-wide power distribution with multiple circuits and backup.

• Data Centers: Ensures uninterrupted supply through dual incomer configurations.

• Residential Towers: Suitable for main panels distributing to sub-panels on each floor.

• Infrastructure Projects: Ideal for installations like airports, metro stations, and large public facilities.
