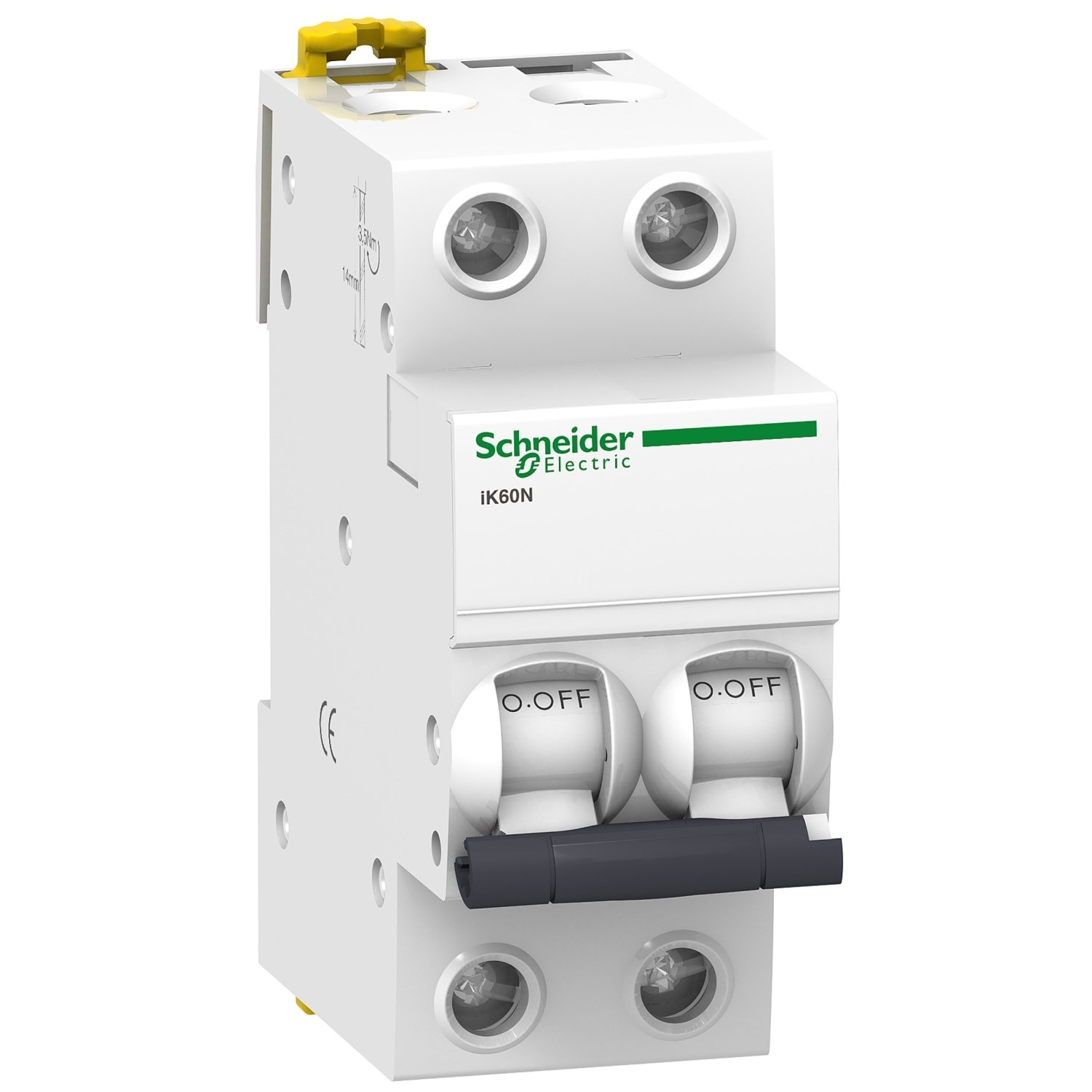

Schneider A9K24216 | Miniature circuit-breaker, Acti9 iK60N, 2P, 16 A, C curve, 6000 A (IEC 60898-1)

Technical Specifications

• Product Series: Acti9 iK60N

• Model Number: A9K24216

• Device Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 2P (Phase + Neutral)

• Rated Current (In): 16 A

• Tripping Curve: C Curve (trips at 5 to 10 times the rated current)

• Rated Operational Voltage: 230/400 V AC

• Frequency: 50/60 Hz

• Breaking Capacity: 6000 A (IEC 60898-1)

• Installation Type: DIN rail mounting (modular design)

• Terminal Connection:

  • Top and bottom tunnel terminals

  • Wire capacity:

    • Rigid: 1.5 to 25 mm²

    • Flexible: 1.5 to 16 mm²

• IP Protection: IP20 (up to IP40 when installed in a suitable enclosure)

• Operating Temperature Range: -25°C to +70°C

• Storage Temperature Range: -40°C to +85°C

• Standards Compliance: IEC 60898-1

• Certifications: CE, RoHS, and other international approvals

• Dimensions (H x W x D): Approx. 85 x 36 x 78 mm

Key Features

• C Curve Tripping: Ideal for general-purpose applications where moderate inrush currents are expected, such as in lighting and outlet circuits.

• Dual Pole Protection: Disconnects both live and neutral conductors simultaneously, enhancing electrical safety and ensuring full isolation.

• Compact Modular Design: Enables quick installation in distribution boards and electrical panels using standard DIN rails.

• Reliable Operation: Fast and precise tripping in the event of short circuits or overloads, ensuring long-term safety of the installation.

• Durability: Long mechanical and electrical life—designed for frequent switching operations.

• Enhanced Safety: Flame-retardant housing and robust construction reduce risk in high-demand environments.

Applications

The A9K24216 miniature circuit breaker is widely used in:

• Residential Installations: Protection of lighting, socket outlets, and household appliances.

• Commercial Environments: Power distribution in small shops, offices, or cafés.

• Small Industrial Setups: Protection of control circuits, small motors, or lighting panels.

• Backup Systems: Integration in UPS or generator panels for downstream circuit protection.

• Renovation Projects: Suitable for both new installations and upgrades in existing systems.
