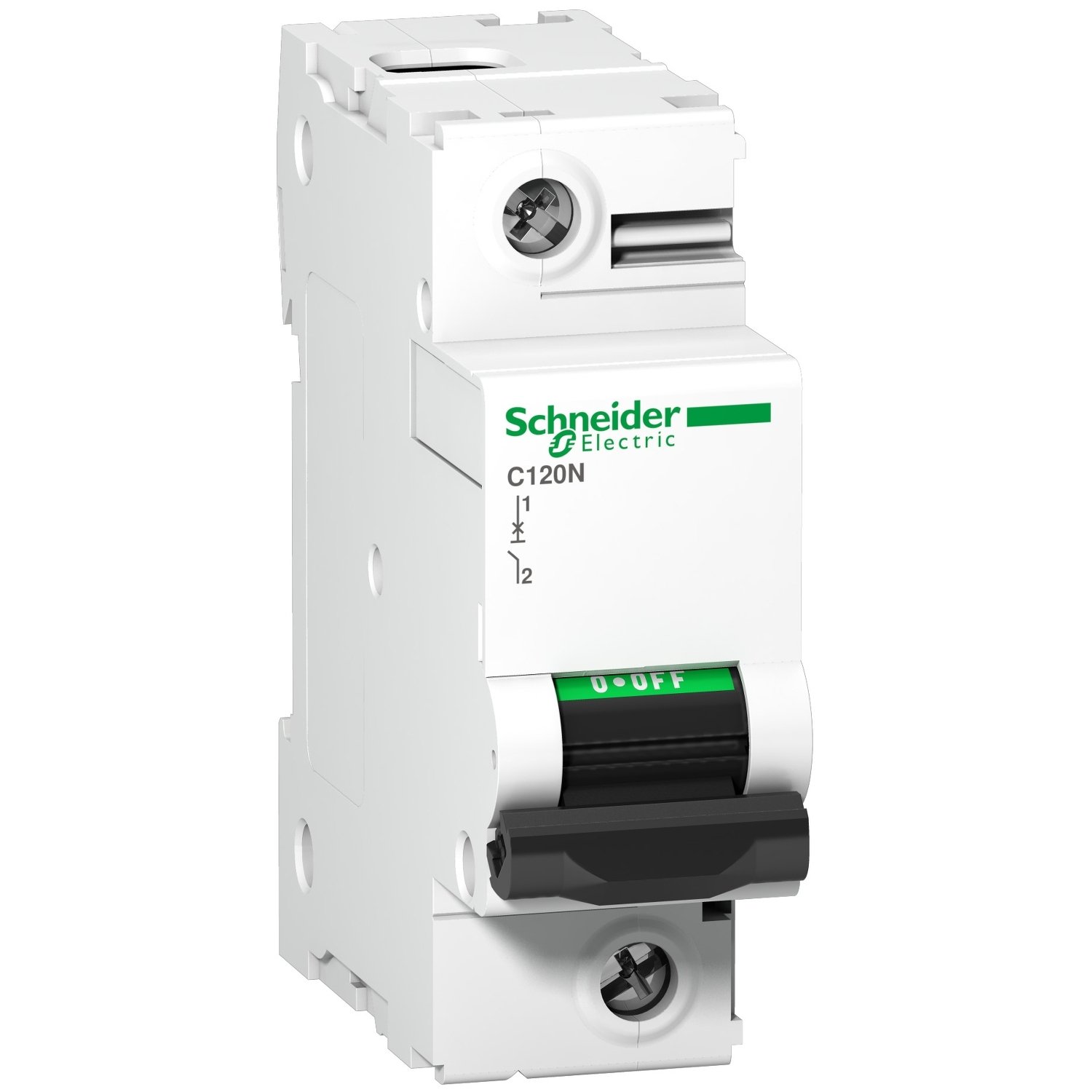

Schneider A9N18358 | Miniature circuit-breaker, Acti9 C120N, 1P, 100 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2)

1. Technical Specifications of Schneider A9N18358

• Brand: Schneider Electric
• Series: Acti9 C120N
• Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 1P (Single Pole)
• Rated Current: 100A
• Tripping Curve: C Curve (suitable for moderate inrush currents)
• Breaking Capacity:
  • 10,000A (10kA) according to IEC 60898-1
  • 10kA according to IEC 60947-2
• Mounting: DIN Rail compatible
• Operating Voltage: Suitable for both residential and industrial voltages
• Application Standard: Complies with IEC 60898-1 and IEC 60947-2

2. Key Features of Schneider A9N18358

1. Reliable Overload and Short Circuit Protection – Ensures safety in electrical installations.
2. C Curve Tripping – Ideal for protecting circuits with moderate inrush currents, such as lighting and general power outlets.
3. High Breaking Capacity (10kA) – Suitable for high-energy electrical networks.
4. Compact and Durable Design – Optimized for space-saving panel installations.
5. Easy Installation on DIN Rail – Quick and secure mounting.
6. Compliance with International Standards – Certified for safe and reliable operation.
7. Long-Lasting Performance – Engineered for extended service life with minimal maintenance.

3. Common Applications

• Residential Electrical Panels – Protects home circuits from overloads and short circuits.
• Commercial Buildings – Ensures electrical safety in offices, malls, and retail spaces.
• Industrial Installations – Used for machinery and electrical distribution protection.
• Lighting Circuits – Suitable for moderate inrush current applications.
• General-Purpose Power Circuits – Provides protection for electrical outlets and appliances.
