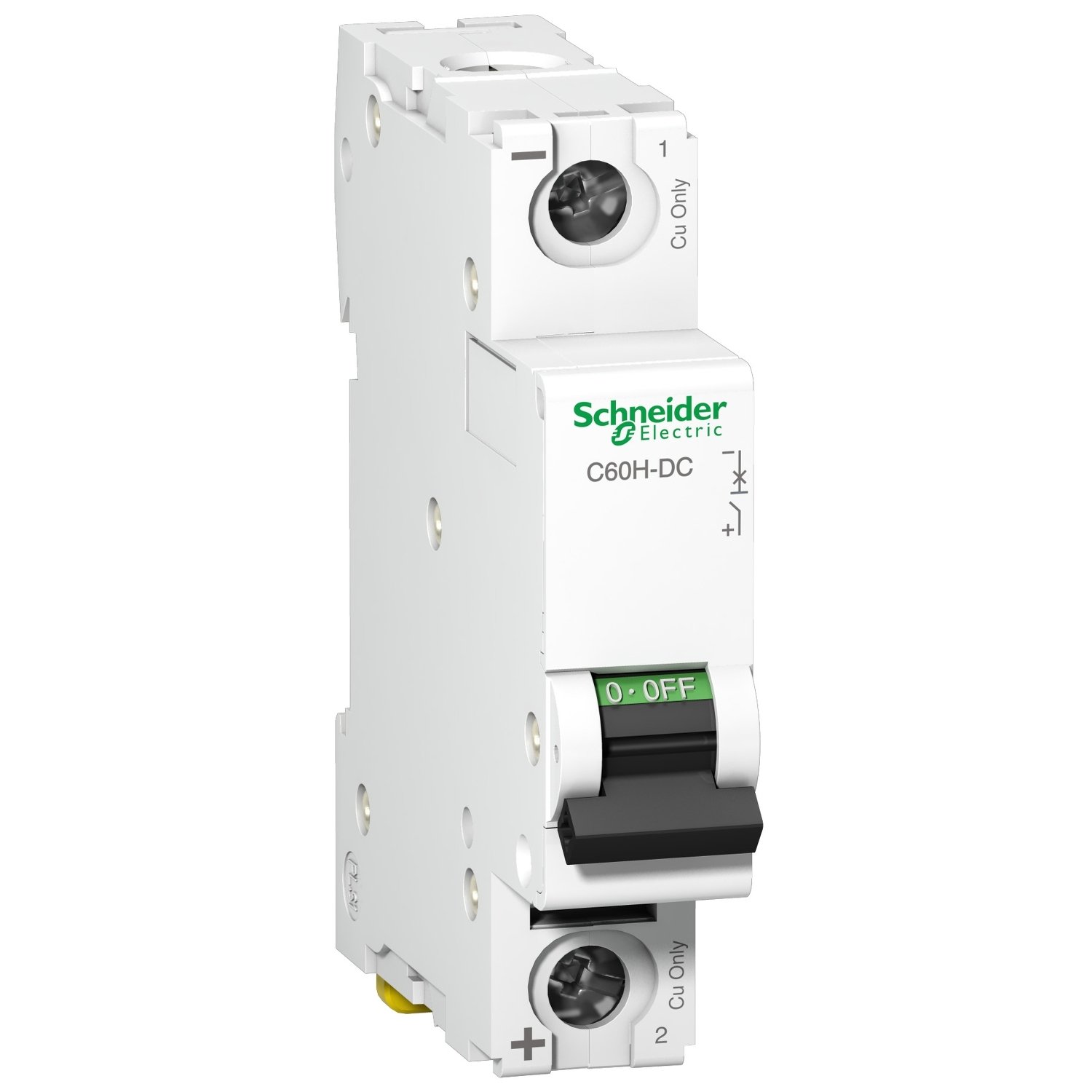

Schneider A9N61512 | miniature circuit breaker – C60H – 1 pole – 20 A – C curve

Technical Specifications A9N61512

• Brand: Schneider Electric

• Product Code: A9N61512

• Product Series: Acti9 C60H

• Device Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 1 Pole

• Rated Current (In): 20 A

• Tripping Curve: Type C (Trips at 5–10 times rated current)

• Rated Operational Voltage: 230/400 V AC

• Rated Frequency: 50/60 Hz

• Breaking Capacity:

  • 6 kA according to IEC/EN 60898-1

• Mounting Style: Clip-on DIN rail (35 mm)

• Terminal Type: Screw clamp (top and bottom)

• Protection Degree: IP20 (with proper installation)

• Standards Compliance:

  • IEC/EN 60898-1

  • IEC/EN 60947-2

• Operating Temperature: -25°C to +60°C

• Mechanical Durability: > 20,000 operations

• Electrical Durability: > 10,000 operations

Key Features:

• Reliable 20A Overload and Short Circuit Protection
  Provides precise disconnection during fault conditions, preventing equipment damage and electrical fires.

• C Curve Tripping Characteristics
  Suitable for circuits with moderate inrush current such as power outlets, lighting, and small motors.

• Compact Modular Construction
  Saves panel space and integrates easily with other modular components in Schneider distribution systems.

• High Durability and Longevity
  Designed for extended operation with minimal maintenance.

• Quick and Safe Installation
  DIN rail mounting and screw terminal connections ensure efficient setup and wiring.

• Enhanced Safety and Insulation
  IP20 touch protection with optional terminal covers for safer handling.

Applications:

Residential Installations

• Power protection for lighting, plug circuits, and kitchen appliances.

• Integration into home distribution boards and consumer units.

Commercial Buildings

• Electrical safety in office buildings, shops, and schools.

• Ideal for computer systems, lighting networks, and HVAC controls.

Industrial Settings

• Auxiliary circuits in light industrial machinery.

• General protection for small equipment and panelboard components.

Public Infrastructure

• Hospitals, malls, and hotels.

• Backup circuits and essential low-load systems.
