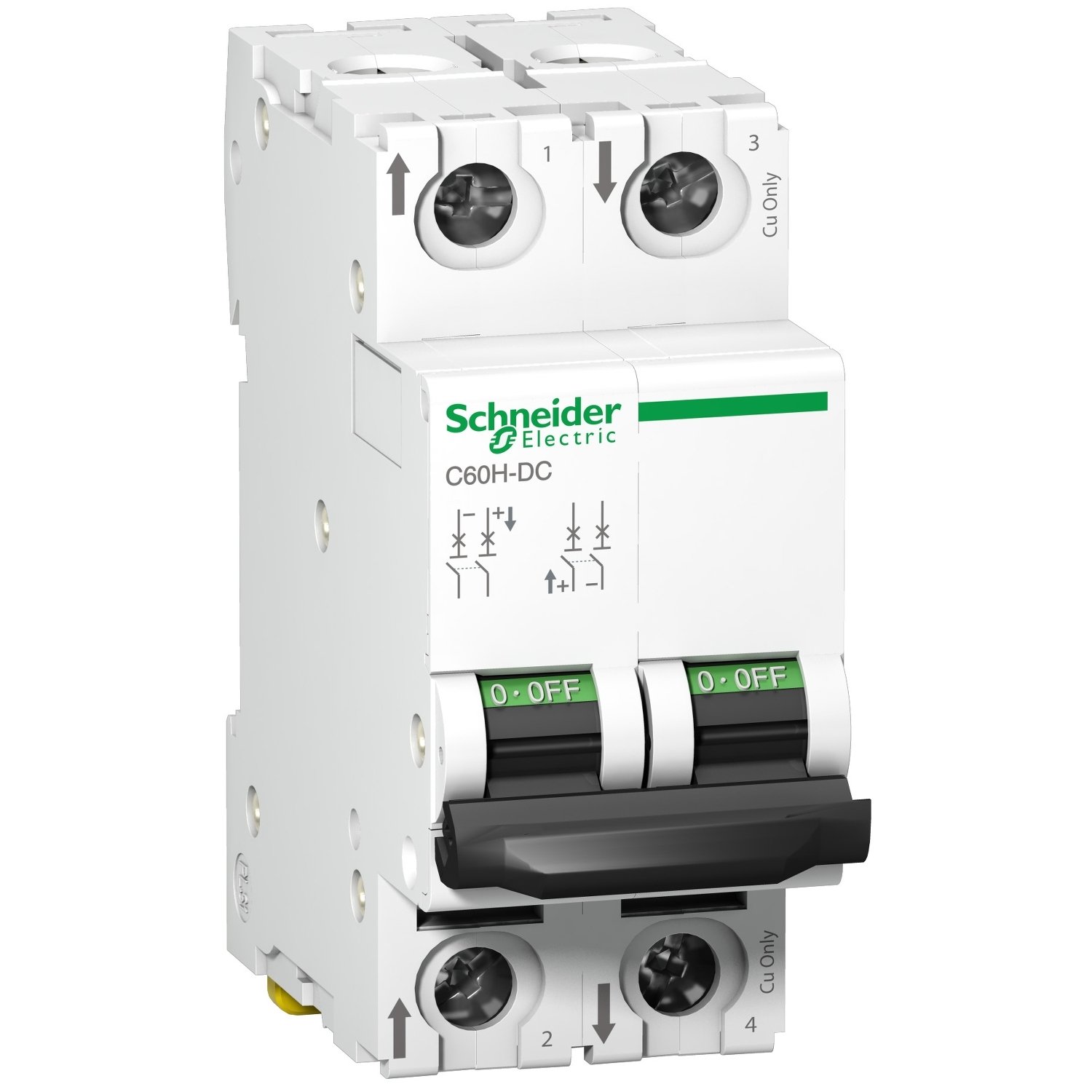

Schneider A9N61532 | miniature circuit breaker – C60H – 2 poles – 20 A – C curve

. Technical Specifications A9N61532

• Manufacturer: Schneider Electric

• Model Number: A9N61532

• Product Series: Acti9 C60H

• Product Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 2 Poles

• Rated Current (In): 20 Amperes

• Tripping Curve: C Curve

• Rated Operational Voltage (Ue): Up to 240/415V AC

• Breaking Capacity: 6 kA (compliant with IEC/EN 60898-1)

• Mounting Type: DIN rail mountable

• Degree of Protection: IP20 (with enclosure)

• Operating Temperature Range: -25°C to +60°C

• Width: 36 mm (2 modules)

• Electrical Durability: Up to 10,000 operations

• Standard Compliance: IEC/EN 60898-1

. Key Features

• Two-Pole Protection: Provides disconnection and protection for both live and neutral conductors (or two-phase conductors), enhancing safety.

• 20A Rated Current: Ideal for medium-load circuits, offering protection for lighting systems, outlets, small appliances, and control circuits.

• C Curve Response: Allows for handling of moderate inrush currents typically found in inductive loads like fans and pumps.

• Compact and Modular Design: Takes only 2 modules of width (36 mm), saving space in distribution panels.

• High Reliability: Combines thermal and magnetic trip mechanisms for accurate fault detection.

• Easy Installation: Quick snap-on mounting on DIN rails without special tools.

• Visual Status Indicator: Clear ON/OFF position makes monitoring simple.

• Long Life Cycle: Built to last with minimal maintenance under normal operating conditions.

. Applications

The Schneider A9N61532 is highly versatile and can be used in a wide range of applications, including:

• Residential Electrical Systems: Protects lighting, sockets, or air conditioning circuits with two-pole switching for full disconnection.

• Commercial Spaces: Offices, shops, and public buildings requiring enhanced protection and reliability.

• Control Panels: Suitable for protecting control circuits and small automation panels in industrial settings.

• Sub-Distribution Boards: Used for protection of branch circuits requiring both poles to be disconnected in the event of a fault.

• Renewable Energy Systems: Ideal for AC output protection in solar inverter setups or backup power systems.
