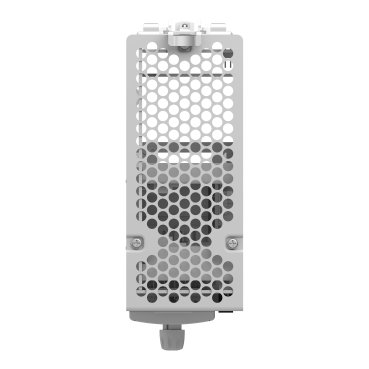

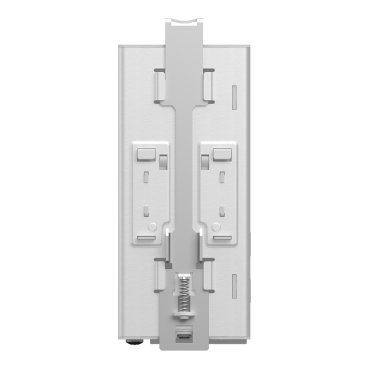

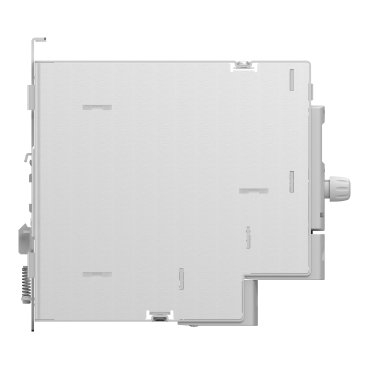

Schneider ABL8BBU24200 | battery control module, phaseo ABL7 ABL8, 24 to 28.8V DC, phaseo ABL7 ABL8, 24V, 20A, for regulated SMPS
Schneider ABL8BBU24200 | battery control module, phaseo ABL7 ABL8, 24 to 28.8V DC, phaseo ABL7 ABL8, 24V, 20A, for regulated SMPS
Original price was: EGP 448,625.00.EGP 246,744.00Current price is: EGP 246,744.00.
Description
Schneider ABL8BBU24200 | battery control module, phaseo ABL7 ABL8, 24 to 28.8V DC, phaseo ABL7 ABL8, 24V, 20A, for regulated SMPS
1. Technical Specifications
- Manufacturer: Schneider Electric
- Type: Battery Control Module
- Voltage Range: 24V – 28.8V DC
- Maximum Current: 20A
- Compatibility: Designed for regulated SMPS (Switched Mode Power Supplies)
- Function: Controls battery charging and ensures uninterrupted power supply during outages
2. Key Features
Smart Battery Management to extend battery lifespan
Fast and Reliable Switching between main power and battery to prevent disruptions
High Reliability for industrial applications and critical control systems
Eco-Friendly Design with packaging made from 70% recycled materials
Stable Power Supply to protect sensitive electronic systems
3. Applications
Industrial Automation: Ensures continuous operation of control units
Data Centers: Protects servers from unexpected power failures
Building Automation & Smart Systems: Supports uninterrupted power for electronic systems
UPS & Emergency Systems: Works as part of backup power solutions
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Phaseo |
|---|---|
| Product or Component Type | Battery control module |
| Input voltage | 24...28.8 V DC |
| Output voltage | (Ubattery-0.5) V battery mode DC (Uin-0.25) V nominal mode DC |
| Maximum output current | 20 A |
| Input voltage limits | 22...30 V |
|---|---|
| Maximum power dissipation in W | 7 W |
| Activation threshold | Adjustable 22...36 V |
| Number of output channels | 1 |
| Current consumption | 0.6 A on load 0.1 mA no load <= 40.6 A |
| Output protection type | Against overload 1.5 x In Against short-circuits battery-backed mode, automatic reset Against short-circuits power-supplied mode |
| Connections - terminals | Diagnostic relay removable screw terminal block 1 x 0.75 mm² Input connection screw type terminals 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 Output connection screw type terminals 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 |
| Fixing mode | By clips 35 mm symmetrical DIN rail horizontal By clips 35 mm symmetrical DIN rail vertical |
| Operating altitude | 6561.68 ft (2000 m) |
| Marking | CE |
| Name of test | Electrostatic discharges IEC 61000-4-2 Emission IEC 61000-6-3 Induced electromagnetic field IEC 61000-4-6 level 3 Radiated electromagnetic field IEC 61000-4-3 level 3 Rapid transient IEC 61000-4-4 level 3 Surge IEC 61000-4-5 level 2 Conducted/radiated emissions EN 55022 Class B, 20 % |
| Local signalling | for alarm status 1 C/O relay for battery status 1 C/O relay for power supply status 1 C/O relay for module status LCD screen |
| Width | 2.4 in (60 mm) |
| Height | 4.9 in (125 mm) |
| Depth | 6.3 in (160 mm) |
| Net Weight | 1.1 lb(US) (0.5 kg) |
| Product Certifications | RCM EAC |
|---|---|
| Standards | UL 508 CSA C22.2 No 60950-1 |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Environmental characteristic | EMC IEC 61000-6-3 EMC IEC 61000-6-2 Safety IEC 60950-1 Safety EN/IEC 61204-3 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 500 V between input and ground 500 V between output and ground |
| Overvoltage category | Class II VDE 0106-1 |
| Relative Humidity | 0…90 % during operation 0…95 % during storage |
| MTBF reliability | 718708 H at 24 V DC with UTE C80-810 calculation method |
| Vibration resistance | 2 gn 11.9…150 Hz)IEC 61131-2 3.5 mm 3…11.9 Hz)IEC 61131-2 |
| Category | US1CP1222525 |
|---|---|
| Discount Schedule | CP12 |
| GTIN | 3389119406826 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.5 in (9 cm) |
| Package 1 Width | 7.7 in (19.5 cm) |
| Package 1 Length | 7.7 in (19.5 cm) |
| Package 1 Weight | 3.236 lb(US) (1.468 kg) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 26.299 lb(US) (11.929 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 31.5 in (80 cm) |
| Package 3 Width | 31.5 in (80 cm) |
| Package 3 Length | 23.6 in (60 cm) |
| Package 3 Weight | 261.7 lb(US) (118.7 kg) |
| Warranty | 18 months |
|---|
