Altivar Soft Starter ATS480

Schneider ATS480D38Y | Soft starter, Altistart 480, 38A, 208 to 690V AC, control supply 110 to 230V AC

Compare

Product Code:

ATS480D38Y

Tags:

208 to 690V AC, 38A, Altistart 480, control supply 110 to 230V AC, Soft starter

Brand: Schneider Electric

Schneider ATS480D38Y| Soft starter, Altistart 480, 38A, 208 to 690V AC, control supply 110 to 230V AC

Name: Schneider ATS480D38Y | Soft starter, Altistart 480, 38A, 208 to 690V AC, control supply 110 to 230V AC
Brand: Schneider Electric
SKU: ATS480D38Y
Availability: OutOfStock

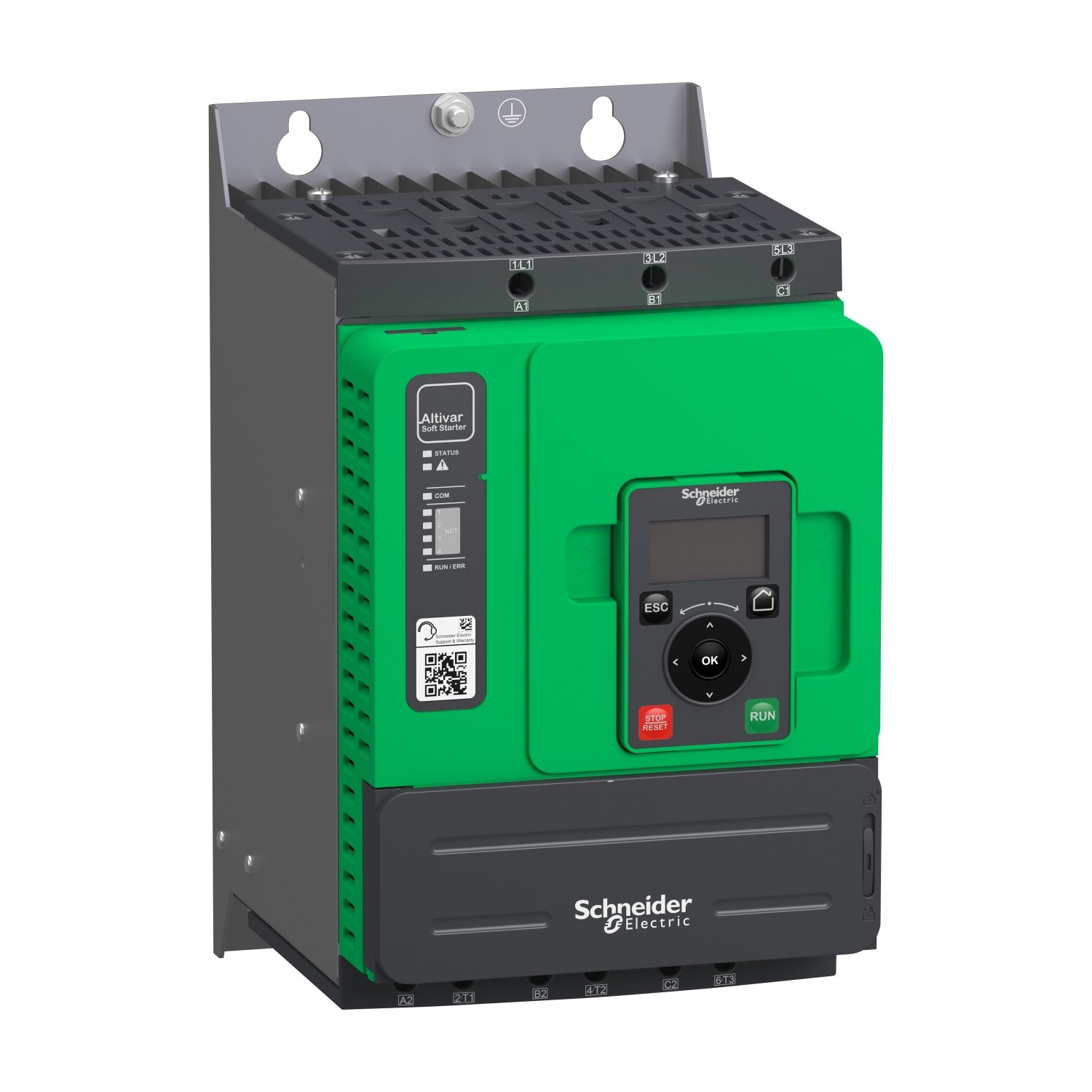

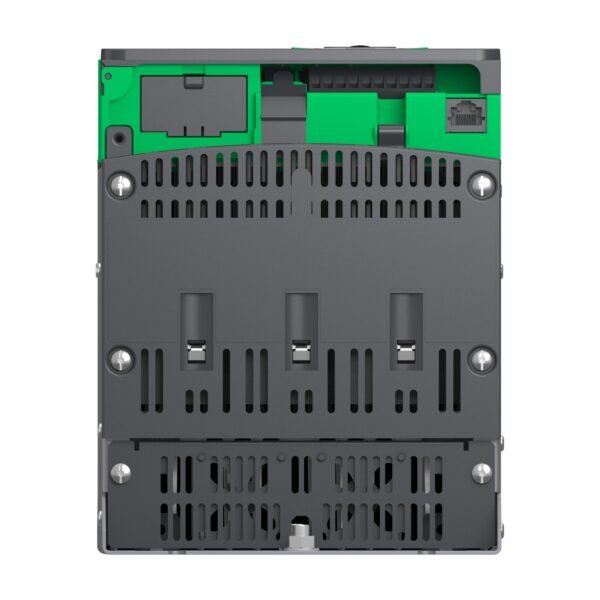

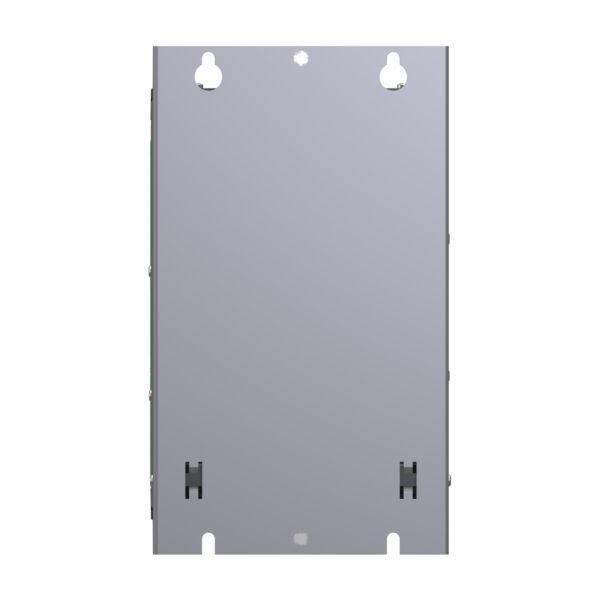

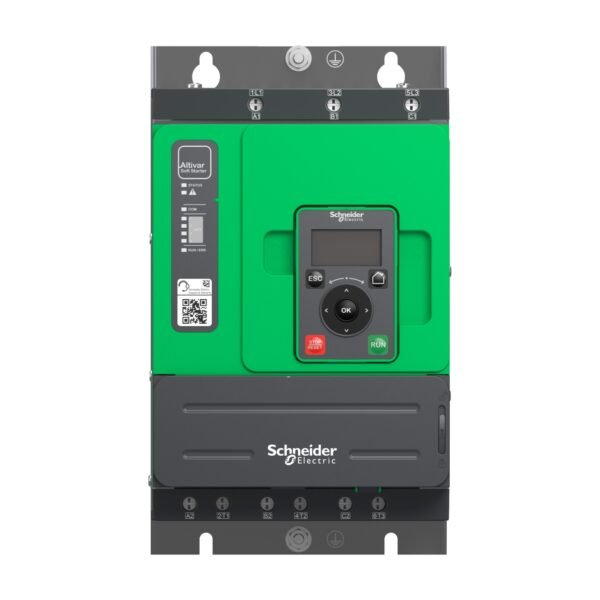

Schneider ATS480D38Y | Soft Starter Overview

The Schneider ATS480D38Y is a soft starter from the Altistart 480 series, designed to provide controlled motor acceleration and deceleration. It helps reduce mechanical stress, optimize energy efficiency, and enhance the lifespan of motors in industrial applications.

1. General Specifications

Product Name: Schneider ATS480D38Y
Series: Altistart 480
Function: Soft Starter
Rated Current: 38A
Operating Voltage: 208V to 690V AC
Control Supply Voltage: 110V to 230V AC

2. Key Features & Benefits

Smooth Motor Start & Stop: Minimizes mechanical wear and tear.
Wide Voltage Range: Supports 208V to 690V AC for flexible applications.
Energy Efficiency: Reduces power surges and improves overall system efficiency.
Built-in Motor Protection: Guards against overloads, short circuits, and overheating.
User-Friendly Interface: Digital display for easy monitoring and configuration.
Seamless Integration: Compatible with industrial automation networks.

3. Applications

🔹 Pumps & Compressors – Prevents sudden pressure surges and enhances system durability.
🔹 Fans & Blowers – Ensures smooth acceleration for HVAC systems.
🔹 Conveyors & Material Handling – Provides controlled motor startup and reduces mechanical stress.
🔹 Industrial Machinery – Ideal for crushers, mixers, and processing equipment.
🔹 Water & Wastewater Treatment – Ensures stable and reliable motor operation.

4. Protection & Safety Features

Overload Protection – Prevents excessive current draw and overheating.
Short Circuit Protection – Enhances system reliability and safety.
Overtemperature Protection – Protects against excessive heat buildup.
Phase Loss & Imbalance Detection – Ensures stable motor performance and longevity.

5. Installation & Maintenance

Easy Setup & Wiring – Simplifies installation in electrical panels.
Advanced Diagnostics & Monitoring – Enables real-time fault detection.
Low Maintenance Design – Reduces downtime and operational costs.

brands	Schneider Electric

Main
Range of Product	Altivar Soft Starter ATS480
Product or Component Type	Soft starter
Product destination	Asynchronous motors
Product Specific Application	Process and infrastructures
Device short name	ATS480
Phase	3 phase
Utilisation category	AC-3A AC-53A
Ue power supply voltage	208...690 V - 15...10 %
power supply frequency	50...60 Hz - 20...20 %
[Ie] rated operational current	Normal duty 38.0 A 104 °F (40 °C))
rated current in heavy duty	32.0 A at 104 °F (40 °C) heavy duty
Torque control	True
IP Degree of Protection	IP20
Motor power kW	9.0 kW 230 V in the motor supply line normal duty 7.5 kW 230 V in the motor supply line heavy duty 18.5 kW 400 V in the motor supply line normal duty 15.0 kW 400 V in the motor supply line heavy duty 18.5 kW 440 V in the motor supply line normal duty 15.0 kW 440 V in the motor supply line heavy duty 22.0 kW 500 V in the motor supply line normal duty 18.5 kW 500 V in the motor supply line heavy duty 22.0 kW 525 V in the motor supply line normal duty 18.5 kW 525 V in the motor supply line heavy duty 30.0 kW 660 V in the motor supply line normal duty 22.0 kW 660 V in the motor supply line heavy duty 30.0 kW 690 V in the motor supply line normal duty 22.0 kW 690 V in the motor supply line heavy duty 18.5 kW 230 V to the motor delta terminals normal duty 15.0 kW 230 V to the motor delta terminals heavy duty 30.0 kW 400 V to the motor delta terminals normal duty 22.0 kW 400 V to the motor delta terminals heavy duty
Maximum Horse Power Rating	10.0 hp 208 V normal duty 7.5 hp 208 V heavy duty 10.0 hp 230 V heavy duty 25.0 hp 460 V normal duty 20.0 hp 460 V heavy duty 30.0 hp 575 V normal duty 25.0 hp 575 V heavy duty
Option card	Communication module Profibus DP V1 Communication module Modbus TCP/EtherNet/IP Communication module CANopen daisy chain Communication module CANopen Sub-D Communication module CANopen open style

Complementary
Device connection	In the motor supply line To the motor delta terminals
[Us] control circuit voltage	110...230 V AC 50/60 Hz - 15...10 %
Apparent power	0.09 kVA
Integrated motor overload protection	True
motor thermal protection class	Class 10E
Protection type	Phase failure line Integrated thermal protection motor Thermal protection starter Current overload motor Underload motor Excessive starting time, locked rotor motor Motor phase loss motor Line supply phase loss line Line supply phase loss motor Thermal protection motor
current limiting %In (5 x Ie maximum)	150…700 %
[In] Rated current pwr loss specifctn	38.0 A
Power loss static current independent	25.0 W
Power loss per device current dependent	96.0 W
Standards	IEC 60947-4-2 UL 60947-4-2 IEC 60664-1
Product Certifications	CE cULus CCC UKCA RCM EAC DNV ABS BV CCS
Marking	CE CCC UKCA EAC RCM CULus
[Uc] control circuit voltage	24 V DC
Discrete input number	4
Discrete input type	STOP) logic inputs, 3500 Ohm RUN) logic inputs, 3500 Ohm DI3) programmable as logic input, 3500 Ohm DI4) programmable as logic input, 3500 Ohm
Input compatibility	STOP discrete input level 1 PLC IEC 61131-2 RUN discrete input level 1 PLC IEC 61131-2 DI3 discrete input level 1 PLC IEC 61131-2 DI4 discrete input level 1 PLC IEC 61131-2
Discrete input logic	Programmable digital input < 5 V
Relay output number	3
Relay output type	Relay outputs R1A 1 NO Relay outputs R1B 1 NO Relay outputs RIC NO/NC programmable
Minimum switching current	100 mA 12 V DC relay outputs
Maximum switching current	Relay outputs 2 A 250 V AC Relay outputs 2 A 30 V DC
Discrete output number	2
Discrete output type	DQ1) programmable digital output <= 30 V DQ2) programmable digital output <= 30 V
Output compatibility	Open collector level 1 PLC IEC 65A-68
Analogue input number	1
Analogue input type	AI1/PTC PTC/Pt 100 temperature probe PTC2 PTC/Pt 100 temperature probe PTC3 PTC/Pt 100 temperature probe
Analogue output number	1
Analogue output type	Current output AQ1 0...20 mA or 0...10 V 500 Ohm
Communication Port Protocol	Modbus serial
Connector Type	1 RJ45
Communication data link	Serial
Physical interface	2-wire RS 485
Transmission Rate	1200...256000 bit/s
Transmission frame	RTU
Data format	8 bits, configurable odd, even or no parity
Type of polarization	No impedance Modbus serial
Number of addresses	0…227 Modbus serial
Method of access	Slave Modbus serial
Function Available	External bypass control Pre-heating Smoke extraction Multi-motor cascade Second motor set User management Ports and services hardening Security event logging Cybersecure firmware update Single direction
Display screen available	True
Operating position	Vertical +/- 10 degree
Height	10.8 in (275.0 mm)
Width	6.3 in (160.0 mm)
Depth	8.0 in (203.0 mm)
Net Weight	10.8 lb(US) (4.9 kg)

Environment
Electromagnetic compatibility	Conducted and radiated emissions level A conforming to IEC 60947-4-2 Conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-11 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5
pollution degree	Level 3
[Uimp] rated impulse withstand voltage	6 kV
[Ui] Rated Insulation Voltage	690 V
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3
Relative humidity	0…95 % without condensation or dripping water IEC 60068-2-3
Ambient air temperature for operation	104…140 °F (40…60 °C) (with current derating of 2 % per °C) 5…104 °F (-15…40 °C) (without derating)
Ambient Air Temperature for Storage	-13…158 °F (-25…70 °C)
Operating altitude	<= 3280.84 ft (1000 m) without derating > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Maximum deflection under vibratory load (during storage)	1.75 mm at 2...9 Hz
Maximum deflection under vibratory load (during transport)	1.75 mm at 2...9 Hz
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum acceleration under vibratory load (during storage)	15 m/s² at 200...500 Hz 10 m/s² at 9...200 Hz
Maximum acceleration under vibratory load (during transport)	15 m/s² at 200...500 Hz 10 m/s² at 9...200 Hz
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under shock load (during storage)	100 m/s² at 11 ms
Maximum acceleration under shock load (during transport)	100 m/s² at 11 ms

Ordering and shipping details
Category	US1CP1G22588
Discount Schedule	CP1G
GTIN	3606481089021
Returnability	Yes
Country of origin	ID

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.69 in (29.700 cm)
Package 1 Width	10.55 in (26.800 cm)
Package 1 Length	14.37 in (36.500 cm)
Package 1 Weight	13.545 lb(US) (6.144 kg)
Unit Type of Package 2	S06
Number of Units in Package 2	8
Package 2 Height	29.53 in (75.000 cm)
Package 2 Width	23.62 in (60.000 cm)
Package 2 Length	31.50 in (80.000 cm)
Package 2 Weight	144.954 lb(US) (65.750 kg)
