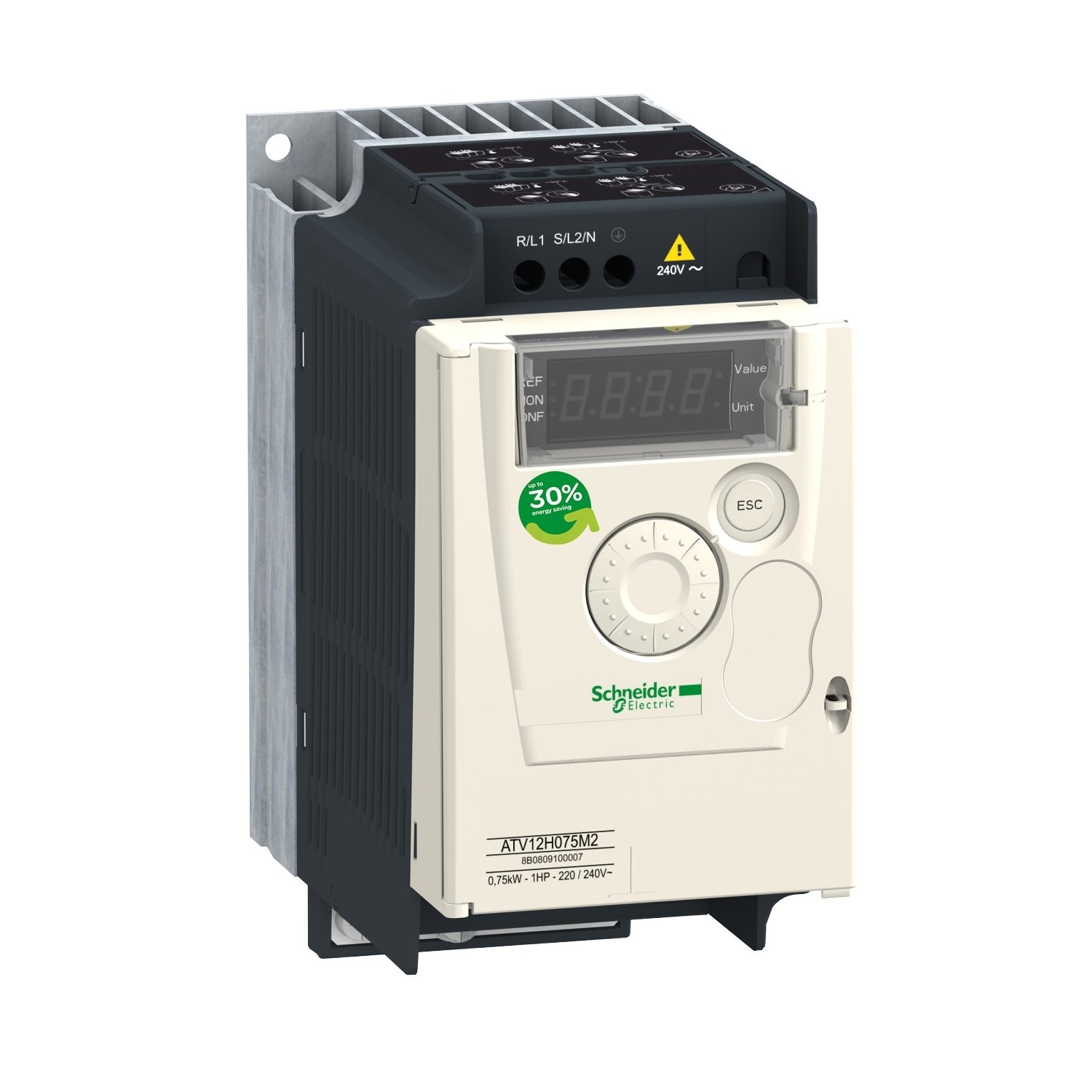

Schneider ATV12H055M2 | variable speed drive, Altivar 12, 0.55kW, 0.75hp, 200 to 240V, 1 phase, with heat sink
Schneider ATV12H055M2 | variable speed drive, Altivar 12, 0.55kW, 0.75hp, 200 to 240V, 1 phase, with heat sink
Original price was: EGP 159,372.00.EGP 87,655.00Current price is: EGP 87,655.00.
Description
Schneider ATV12H055M2 | variable speed drive, Altivar 12, 0.55kW, 0.75hp, 200 to 240V, 1 phase, with heat sink
Specifications:
-
Product Type: Variable Speed Drive (VSD)
-
Model: Schneider ATV12H055M2
-
Series: Altivar 12
-
Power Rating: 0.55 kW (0.75 hp)
-
Voltage Rating: 200 to 240V AC, 1-phase
-
Frequency Range: 0 to 400 Hz
-
Control Mode: V/F (Volts/Frequency) control, with precise speed regulation
-
Cooling: Equipped with an integrated heat sink to enhance thermal performance and extend drive lifespan
-
Enclosure Type: Compact, with a slim and space-saving design
-
Mounting: DIN rail or wall mounting for ease of installation
-
Protection: Features built-in protection against overload, short circuits, and overheating
-
Communication: Optional Modbus RTU for remote monitoring and control
-
Dimensions (L x W x H): Compact size for integration into tight spaces
Features:
-
Energy Efficiency:
The ATV12H055M2 is designed to optimize motor performance, providing efficient speed control that helps reduce energy consumption and operational costs. It adjusts the motor speed according to the load, preventing unnecessary energy waste. -
Compact and Space-Saving:
Its compact design allows for easy integration into various applications with limited space. It is perfect for machines and systems where space is at a premium. -
Built-in Heat Sink:
The integrated heat sink ensures optimal cooling of the drive, even during extended operation. This helps maintain stable performance and prevents overheating, thus enhancing the longevity and reliability of the drive. -
User-Friendly Interface:
The Altivar 12 series is equipped with a simple and intuitive user interface for quick configuration and easy adjustments. The drive also includes an optional digital keypad for local control. -
Flexible Control Options:
The ATV12H055M2 offers various control methods, such as manual control via the drive’s interface or remote control via Modbus communication. This allows for more flexible operation in different applications. -
Advanced Motor Protection:
The drive includes built-in protections for the connected motor, such as overload protection, short circuit protection, and thermal protection, ensuring that both the drive and motor remain safe during operation. -
Reduced Maintenance Needs:
By providing smooth and accurate motor control, this drive reduces mechanical stress on the motor, lowering maintenance requirements and extending the lifespan of both the drive and the motor.
Applications:
-
Pumps: Ideal for controlling the speed of water or fluid pumps, helping to maintain consistent flow rates and energy savings.
-
Fans and Blowers: Perfect for applications in HVAC systems, ventilation, and air handling units, where variable fan speeds are necessary.
-
Conveyor Systems: Suitable for small conveyor belts and material handling systems where the speed of movement needs to be controlled for optimal efficiency.
-
Compressors: The ATV12H055M2 is a good choice for controlling the speed of small air compressors, offering precise speed adjustments to match the demand.
-
Small Machines: Its compact design makes it perfect for small machine tools and automation systems, where variable speed control is required for enhanced productivity.
-
Industrial Applications: Used in light industrial settings where energy-efficient motor control and speed regulation are essential.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Altivar 12 |
|---|---|
| Product or Component Type | Variable speed drive |
| Product Specific Application | Simple machine |
| Mounting Mode | Cabinet mount |
| communication port protocol | Modbus |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| Nominal output current | 3.5 A |
| Maximum Horse Power Rating | 0.75 hp |
| Motor power kW | 0.55 kW |
| Maximum Horse Power Rating | 0.75 hp |
| EMC filter | Integrated |
| IP degree of protection | IP20 |
| Discrete input number | 4 |
|---|---|
| Discrete output number | 2 |
| analogue input number | 1 |
| analogue output number | 1 |
| Relay output number | 1 |
| Physical interface | 2-wire RS 485 |
| Connector Type | 1 RJ45 |
| Continuous output current | 3.5 A 4 kHz |
| Method of access | Server Modbus serial |
| Speed drive output frequency | 0.5…400 Hz |
| Speed range | 1…20 |
| Sampling duration | 20 ms +/- 1 ms logic input 10 ms analogue input |
| Linearity error | +/- 0.3 % of maximum value analogue input |
| Frequency resolution | Analog input converter A/D, 10 bits Display unit 0.1 Hz |
| Time constant | 20 ms +/- 1 ms for reference change |
| Transmission Rate | 9.6 kbit/s 19.2 kbit/s 38.4 kbit/s |
| Transmission frame | RTU |
| Number of addresses | 1…247 |
| Data format | 8 bits, configurable odd, even or no parity |
| Communication service | Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43) |
| Type of polarization | No impedance |
| 4 quadrant operation possible | False |
| Asynchronous motor control profile | Voltage/frequency ratio (V/f) Quadratic voltage/frequency ratio Sensorless flux vector control |
| maximum output frequency | 4 kHz |
| Transient overtorque | 150…170 % of nominal motor torque depending on drive rating and type of motor |
| Acceleration and deceleration ramps | Linear from 0 to 999.9 s S U |
| Motor slip compensation | Preset in factory Adjustable |
| Switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Braking to standstill | By DC injection |
| Brake chopper integrated | False |
| Line current | 8.0 A 100 V heavy duty) 6.7 A 120 V heavy duty) |
| Maximum Input Current per Phase | 6.7 A |
| Maximum output voltage | 240 V |
| Apparent power | 1.6 kVA 240 V heavy duty) |
| Maximum transient current | 5.3 A 60 s heavy duty) 5.8 A 2 s heavy duty) |
| Network Frequency | 50-60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Prospective line Isc | 1 kA |
| Base load current at high overload | 3.5 A |
| Power dissipation in W | Natural 34.0 W |
| With safety function Safely Limited Speed (SLS) | False |
| With safety function Safe brake management (SBC/SBT) | False |
| With safety function Safe Operating Stop (SOS) | False |
| With safety function Safe Position (SP) | False |
| With safety function Safe programmable logic | False |
| With safety function Safe Speed Monitor (SSM) | False |
| With safety function Safe Stop 1 (SS1) | False |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe torque off (STO) | False |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Direction (SDI) | False |
| Protection type | Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t |
| Tightening torque | 7.08 lbf.in (0.8 N.m) |
| insulation | Electrical between power and control |
| Quantity per Set | Set of 1 |
| Width | 2.83 in (72 mm) |
| Height | 5.63 in (143 mm) |
| Depth | 5.17 in (131.2 mm) |
| Net Weight | 1.76 lb(US) (0.8 kg) |
| Operating altitude | > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m <= 3280.84 ft (1000 m) without derating |
|---|---|
| Operating position | Vertical +/- 10 degree |
| Product Certifications | NOM CSA C-tick UL GOST RCM KC |
| Marking | CE |
| Standards | UL 508C UL 618000-5-1 IEC 61800-5-1 IEC 61800-3 |
| Assembly style | With heat sink |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test level 4 IEC 61000-4-4 Electrostatic discharge immunity test level 3 IEC 61000-4-2 Immunity to conducted disturbances level 3 IEC 61000-4-6 Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 Surge immunity test level 3 IEC 61000-4-5 Voltage dips and interruptions immunity test IEC 61000-4-11 |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Overvoltage category | Class III |
| Regulation loop | Adjustable PID regulator |
| Electromagnetic emission | Radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable Conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <16.40 ft (5 m) Conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2...12 kHz shielded motor cable <16.40 ft (5 m) Conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2, 4 and 16 kHz shielded motor cable <32.81 ft (10 m) Conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <65.62 ft (20 m) Conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <164.04 ft (50 m) Conducted emissions with additional EMC filter environment 2 category C3 IEC 61800-3 4...12 kHz shielded motor cable <164.04 ft (50 m) |
| Vibration resistance | 1 gn 13…200 Hz)IEC 60068-2-6 1.5 mm peak to peak 3…13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation IEC 60068-2-3 5…95 % without dripping water IEC 60068-2-3 |
| Noise level | 0 dB |
| Pollution degree | 2 |
| Ambient air transport temperature | -13…158 °F (-25…70 °C) |
| Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating 104…140 °F (40…60 °C) with current derating 2.2 % per °C |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Category | US1CP4B22042 |
|---|---|
| Discount Schedule | CP4B |
| GTIN | 3606480071065 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.17 in (10.600 cm) |
| Package 1 Width | 7.32 in (18.600 cm) |
| Package 1 Length | 7.32 in (18.600 cm) |
| Package 1 Weight | 2.46 lb(US) (1.117 kg) |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 45 |
| Package 2 Height | 28.94 in (73.500 cm) |
| Package 2 Width | 23.62 in (60.000 cm) |
| Package 2 Length | 31.50 in (80.000 cm) |
| Package 2 Weight | 139.57 lb(US) (63.310 kg) |
| Warranty | 18 months |
|---|
