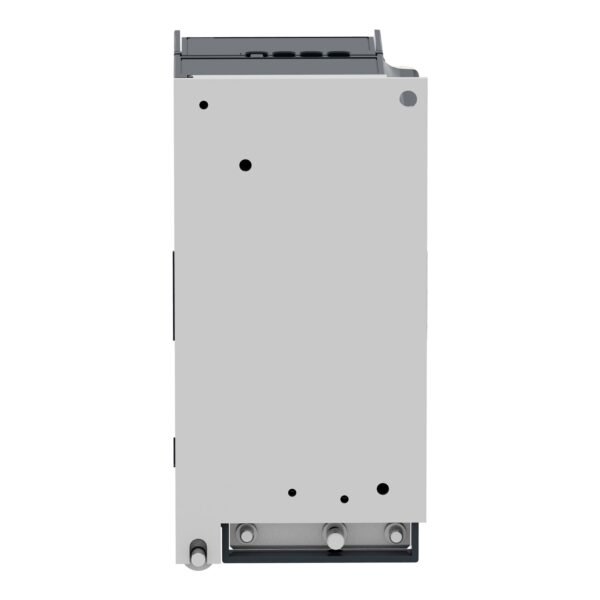

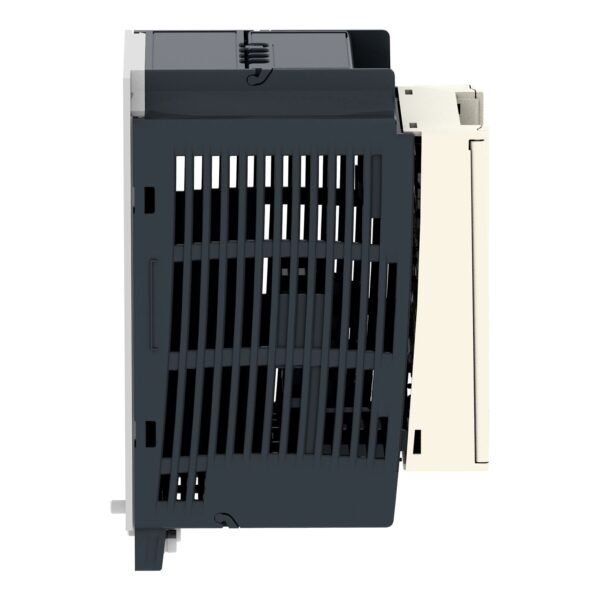

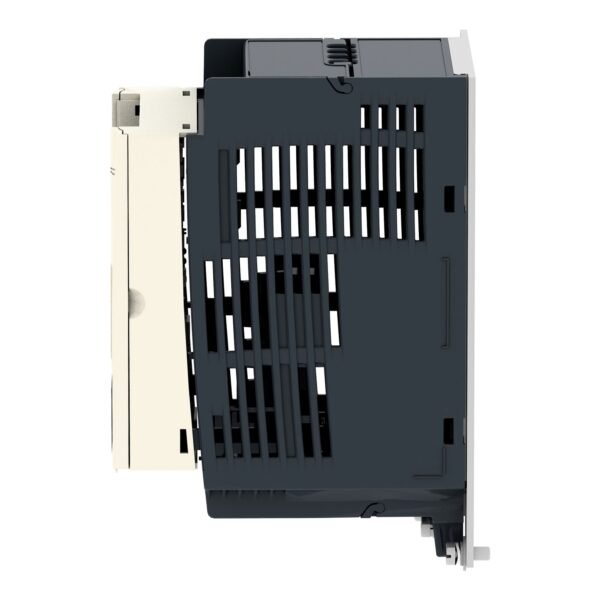

Schneider ATV12HU15M2 Altivar |variable speed drive ATV12 – 1.5kW – 2hp – 200..240V – 1ph – with heat sink
Schneider ATV12HU15M2 Altivar
Original price was: EGP 193,914.00.EGP 106,653.00Current price is: EGP 106,653.00.
Description
Schneider ATV12HU15M2 Altivar
Introduction
Understanding the Schneider ATV12HU15M2 Altivar
Schneider ATV12HU15M2 Altivar is a powerful variable speed drive manufactured by Schneider Electric, designed to control the speed of asynchronous motors in various industrial applications. It offers precise speed regulation, energy efficiency, and advanced features, making it an essential component in modern automation systems.
Importance of Altivar Drives in Industrial Applications
Altivar drives play a crucial role in industrial automation by providing accurate control over motor speed, which is essential for optimizing energy consumption, improving process efficiency, and ensuring equipment longevity. They are widely used in manufacturing plants, HVAC systems, water treatment facilities, and more.
What Makes Schneider ATV12HU15M2 Altivar Stand Out?
Innovative Features
Variable Speed Control
The ATV12HU15M2 Altivar allows users to adjust the speed of the connected motor according to specific requirements, enabling precise control over the production process and reducing energy wastage.
Compact Design
With its compact and space-saving design, the Altivar drive can be easily integrated into existing control panels or installed in confined spaces, maximizing flexibility in system design.
Easy Installation
Schneider Electric has designed the ATV12HU15M2 Altivar with user convenience in mind, simplifying the installation process with intuitive wiring diagrams, clear instructions, and plug-and-play functionality.
Applications of Schneider ATV12HU15M2 Altivar
Industrial Automation
In industrial automation, the Altivar drive is used to regulate the speed of conveyor belts, pumps, fans, and other equipment, allowing for precise control over production processes and reducing energy consumption.
HVAC Systems
Altivar drives are widely employed in heating, ventilation, and air conditioning (HVAC) systems to regulate the speed of motors driving compressors, blowers, and pumps, resulting in improved energy efficiency and comfort control.
Pump and Fan Control
In water treatment plants, Schneider ATV12HU15M2 Altivar drives are utilized to control the speed of pumps and fans, ensuring optimal flow rates, pressure levels, and energy usage while minimizing operational costs.
Advantages of Using Schneider ATV12HU15M2 Altivar
Energy Efficiency
By adjusting the speed of motors based on actual load requirements, the Altivar drive reduces energy consumption and lowers utility costs, contributing to sustainability goals and environmental conservation efforts.
Enhanced Performance
The precise speed control offered by the Altivar drive enhances the performance of industrial equipment, resulting in smoother operation, reduced wear and tear, and increased overall productivity.
Cost Savings
With its energy-saving features, extended equipment lifespan, and minimal maintenance requirements, Schneider ATV12HU15M2 Altivar helps businesses save money in the long term, offering a favorable return on investment.
Installation and Setup Guide
Pre-installation Preparations
Before installing the ATV12HU15M2 Altivar, ensure that the installation location is suitable, considering factors such as ambient temperature, ventilation, and access for maintenance.
Choosing the Right Location
Select a dry, well-ventilated area with adequate clearance around the drive for airflow and service access. Avoid locations exposed to direct sunlight, excessive humidity, or corrosive atmospheres.
Electrical Requirements
Ensure that the electrical supply meets the specifications of the Altivar drive, including voltage, frequency, and current ratings. Use appropriate wiring materials and follow local electrical codes and regulations.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Altivar 12 |
|---|---|
| Product or component type | Variable speed drive |
| Product specific application | Simple machine |
| Mounting mode | Cabinet mount |
| communication port protocol | Modbus |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| Nominal output current | 7.5 A |
| Motor power hp | 2 hp |
| Motor power kW | 1.5 kW |
| Motor power hp | 2 hp |
| EMC filter | Integrated |
| IP degree of protection | IP20 |
| Discrete input number | 4 |
|---|---|
| Discrete output number | 2 |
| analogue input number | 1 |
| analogue output number | 1 |
| Relay output number | 1 |
| Physical interface | 2-wire RS 485 |
| Connector type | 1 RJ45 |
| Continuous output current | 7.5 A at 4 kHz |
| Method of access | Server Modbus serial |
| Speed drive output frequency | 0.5…400 Hz |
| Speed range | 1…20 |
| Sampling duration | 20 ms, tolerance +/- 1 ms for logic input 10 ms for analogue input |
| Linearity error | +/- 0.3 % of maximum value for analogue input |
| Frequency resolution | Analog input: converter A/D, 10 bits Display unit: 0.1 Hz |
| Time constant | 20 ms +/- 1 ms for reference change |
| Transmission rate | 9.6 kbit/s 19.2 kbit/s 38.4 kbit/s |
| Transmission frame | RTU |
| Number of addresses | 1…247 |
| Data format | 8 bits, configurable odd, even or no parity |
| Communication service | Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43) |
| Type of polarization | No impedance |
| 4 quadrant operation possible | False |
| Asynchronous motor control profile | Sensorless flux vector control Quadratic voltage/frequency ratio Voltage/frequency ratio (V/f) |
| Maximum output frequency | 4 kHz |
| Transient overtorque | 150…170 % of nominal motor torque depending on drive rating and type of motor |
| Acceleration and deceleration ramps | U S Linear from 0 to 999.9 s |
| Motor slip compensation | Adjustable Preset in factory |
| Switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Braking to standstill | By DC injection |
| Brake chopper integrated | False |
| Line current | 17.8 A at 100 V (heavy duty) 14.9 A at 120 V (heavy duty) |
| Maximum input current | 14.9 A |
| Maximum output voltage | 240 V |
| Apparent power | 3.6 kVA at 240 V (heavy duty) |
| Maximum transient current | 11.2 A during 60 s (heavy duty) 12.4 A during 2 s (heavy duty) |
| Network frequency | 50...60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Prospective line Isc | 1 kA |
| Base load current at high overload | 7.5 A |
| Power dissipation in W | Forced cooling: 72.0 W |
| With safety function Safely Limited Speed (SLS) | False |
| With safety function Safe brake management (SBC/SBT) | False |
| With safety function Safe Operating Stop (SOS) | False |
| With safety function Safe Position (SP) | False |
| With safety function Safe programmable logic | False |
| With safety function Safe Speed Monitor (SSM) | False |
| With safety function Safe Stop 1 (SS1) | False |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe torque off (STO) | False |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Direction (SDI) | False |
| Protection type | Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t |
| tightening torque | 1.2 N.m |
| insulation | Electrical between power and control |
| Quantity per set | Set of 1 |
| Width | 105 mm |
| height | 142 mm |
| Depth | 156.2 mm |
| Net weight | 1.4 kg |
| Operating altitude | > 1000...2000 m with current derating 1 % per 100 m <= 1000 m without derating |
|---|---|
| Operating position | Vertical +/- 10 degree |
| product certifications | NOM CSA C-Tick UL GOST RCM KC |
| Marking | CE |
| Standards | UL 508C UL 618000-5-1 EN/IEC 61800-5-1 EN/IEC 61800-3 |
| Assembly style | With heat sink |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 Immunity to conducted disturbances level 3 conforming to EN/IEC 61000-4-6 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3 Surge immunity test level 3 conforming to EN/IEC 61000-4-5 Voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11 |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Volume of cooling air | 16 m3/h |
| Overvoltage category | Class III |
| Regulation loop | Adjustable PID regulator |
| Electromagnetic emission | Radiated emissions environment 1 category C2 conforming to EN/IEC 61800-3 2...16 kHz shielded motor cable Conducted emissions with integrated EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m Conducted emissions with additional EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <20 m Conducted emissions with additional EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m Conducted emissions with additional EMC filter environment 2 category C3 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m Conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4...16 kHz shielded motor cable <5 m Conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <10 m |
| Vibration resistance | 1 gn (f = 13…200 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f = 3…13 Hz) - drive unmounted on symmetrical DIN rail - conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn conforming to EN/IEC 60068-2-27 for 11 ms |
| Relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3 5…95 % without dripping water conforming to IEC 60068-2-3 |
| Noise level | 45 dB |
| Pollution degree | 2 |
| Ambient air transport temperature | -25…70 °C |
| Ambient air temperature for operation | -10…50 °C without derating 50…60 °C with current derating 2.2 % per °C |
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 23.000 cm |
| Package 1 Width | 20.000 cm |
| Package 1 Length | 21.500 cm |
| Package 1 Weight | 1.716 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 64.840 kg |
| Warranty | 18 months |
|---|
