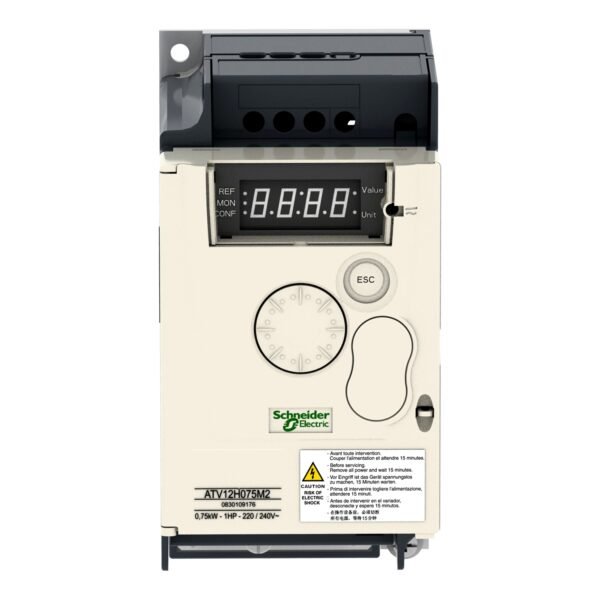

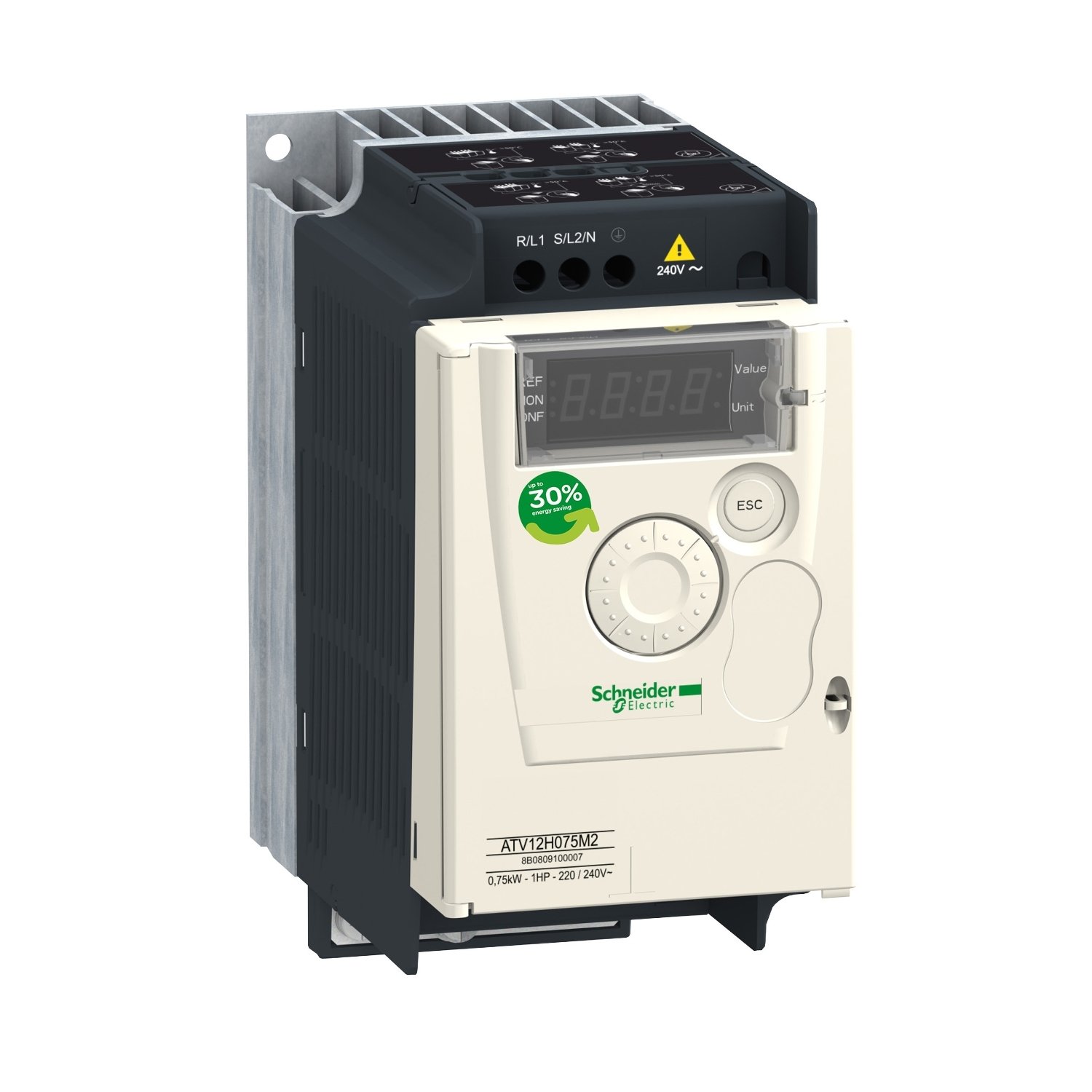

Name: Schneider ATV12H075M2 Altivar |variable speed drive ATV12 - 0.75kW - 1hp - 200..240V - 1ph - with heat sink
Brand: Schneider Electric
SKU: ATV12H075M2
Availability: InStock

Altivar 12

Schneider ATV12H075M2 Altivar |variable speed drive ATV12 – 0.75kW – 1hp – 200..240V – 1ph – with heat sink

Schneider ATV12H075M2 Altivar

Compare

Product Code:

ATV12H075M2

Brand: Schneider Electric

Schneider ATV12H075M2 Altivar ATV12 Variable Speed Drive

TheSchneider ATV12H075M2 is part of the Altivar ATV12 series, offering variable speed control for a range of applications. This model is designed for driving electric motors in industrial and commercial environments, providing precise control over speed and torque while improving energy efficiency.

Key Features

Product Type: Variable Speed Drive
Part Number: ATV12H075M2
Power Rating: 0.75 kW (1 hp)
Input Voltage: 200–240V AC, Single-phase
Motor Compatibility: Suitable for small to medium motors
Cooling: Equipped with a heat sink for efficient heat dissipation
Control Mode: Speed control for continuous and precise operation
Dimensions: Compact design for easy integration in control panels

Technical Specifications

Power Rating: 0.75 kW (1 hp)
Voltage: 200V to 240V AC, Single-phase input
Current Rating: Suitable for 1-phase motor applications
Frequency: 50/60 Hz
Cooling Method: Integrated heat sink for passive cooling
Operating Temperature: Typically operates within a range of -10°C to +50°C
Enclosure Rating: Designed for indoor use with IP20 (limited protection against solid objects)
Control Options: Can be controlled via digital inputs, allowing for integration into automation systems
Mounting: Designed for panel or wall mounting
Communication: Supports Modbus RTU for easy communication with other devices

Advantages

Precise Speed Control: Ensures smooth and energy-efficient motor control
Efficient Cooling: Built-in heat sink for effective temperature management
Energy Savings: Reduces energy consumption by adjusting motor speed according to load requirements
Compact and Easy to Install: Small form factor makes it ideal for tight spaces in control panels
Cost-Effective Solution: Ideal for small machines and applications with simple motor control needs
Global Compatibility: Designed to operate in a range of voltages for different regions

Typical Applications

Small pumps and fans
Conveying systems
HVAC systems
Compressors
Conveyor belts
Small machinery requiring variable speed control
Applications in both industrial and commercial environments

brands	Schneider Electric

Main
range of product	Altivar 12
Product or component typee	Variable speed drive
Product specific application	Simple machine
Mounting mode	Cabinet mount
communication port protocol	Modbus
Supply frequency	50/60 Hz +/- 5 %
[Us] rated supply voltage	200...240 V - 15...10 %
Nominal output current	4.2 A
Motor power hp	1 hp
Motor power kW	0.75 kW
Motor power hp	1 hp
EMC filter	Integrated
IP degree of protection	IP20

Complementary
Discrete input number	4
Discrete output number	2
analogue input number	1
analogue output number	1
Relay output number	1
Physical interface	2-wire RS 485
Connector type	1 RJ45
Continuous output current	4.2 A at 4 kHz
Method of access	Server Modbus serial
Speed drive output frequency	0.5…400 Hz
Speed range	1…20
Sampling duration	20 ms, tolerance +/- 1 ms for logic input 10 ms for analogue input
Linearity error	+/- 0.3 % of maximum value for analogue input
Frequency resolution	Analog input: converter A/D, 10 bits Display unit: 0.1 Hz
Time constant	20 ms +/- 1 ms for reference change
Transmission rate	9.6 kbit/s 19.2 kbit/s 38.4 kbit/s
Transmission frame	RTU
Number of addresses	1…247
Data format	8 bits, configurable odd, even or no parity
Communication service	Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43)
Type of polarization	No impedance
4 quadrant operation possible	False
Asynchronous motor control profile	Quadratic voltage/frequency ratio Voltage/frequency ratio (V/f) Sensorless flux vector control
Maximum output frequency	4 kHz
Transient overtorque	150…170 % of nominal motor torque depending on drive rating and type of motor
Acceleration and deceleration ramps	Linear from 0 to 999.9 s U S
Motor slip compensation	Preset in factory Adjustable
Switching frequency	2...16 kHz adjustable 4...16 kHz with derating factor
Nominal switching frequency	4 kHz
Braking to standstill	By DC injection
Brake chopper integrated	False
Line current	10.2 A at 100 V (heavy duty) 8.5 A at 120 V (heavy duty)
Maximum input current	8.5 A
Maximum output voltage	240 V
Apparent power	2.0 kVA at 240 V (heavy duty)
Maximum transient current	6.3 A during 60 s (heavy duty) 6.9 A during 2 s (heavy duty)
Network frequency	50...60 Hz
Relative symmetric network frequency tolerance	5 %
Prospective line Isc	1 kA
Base load current at high overload	4.2 A
Power dissipation in W	Natural: 44.0 W
With safety function Safely Limited Speed (SLS)	False
With safety function Safe brake management (SBC/SBT)	False
With safety function Safe Operating Stop (SOS)	False
With safety function Safe Position (SP)	False
With safety function Safe programmable logic	False
With safety function Safe Speed Monitor (SSM)	False
With safety function Safe Stop 1 (SS1)	False
With sft fct Safe Stop 2 (SS2)	False
With safety function Safe torque off (STO)	False
With safety function Safely Limited Position (SLP)	False
With safety function Safe Direction (SDI)	False
Protection type	Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t
tightening torque	0.8 N.m
insulation	Electrical between power and control
Quantity per set	Set of 1
Width	72 mm
height	143 mm
Depth	131.2 mm
Net weight	0.8 kg

Environment
Operating altitude	> 1000...2000 m with current derating 1 % per 100 m <= 1000 m without derating
Operating position	Vertical +/- 10 degree
product certifications	NOM CSA C-Tick UL GOST RCM KC
Marking	CE
Standards	UL 508C UL 618000-5-1 IEC 61800-5-1 IEC 61800-3
Assembly style	With heat sink
Electromagnetic compatibility	Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Immunity to conducted disturbances level 3 conforming to IEC 61000-4-6 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Surge immunity test level 3 conforming to IEC 61000-4-5 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Overvoltage category	Class III
Regulation loop	Adjustable PID regulator
Electromagnetic emission	Radiated emissions environment 1 category C2 conforming to IEC 61800-3 2...16 kHz shielded motor cable Conducted emissions with integrated EMC filter environment 1 category C1 conforming to IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m Conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 2...12 kHz shielded motor cable <5 m Conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m Conducted emissions with additional EMC filter environment 1 category C1 conforming to IEC 61800-3 4...12 kHz shielded motor cable <20 m Conducted emissions with additional EMC filter environment 1 category C2 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m Conducted emissions with additional EMC filter environment 2 category C3 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m
Vibration resistance	1 gn (f = 13…200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f = 3…13 Hz) - drive unmounted on symmetrical DIN rail - conforming to IEC 60068-2-6
Shock resistance	15 gn conforming to IEC 60068-2-27 for 11 ms
Relative humidity	5…95 % without condensation conforming to IEC 60068-2-3 5…95 % without dripping water conforming to IEC 60068-2-3
Noise level	0 dB
Pollution degree	2
Ambient air transport temperature	-25…70 °C
Ambient air temperature for operation	-10…40 °C without derating 40…60 °C with current derating 2.2 % per °C
Ambient air temperature for storage	-25…70 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.700 cm
Package 1 Width	19.000 cm
Package 1 Length	19.500 cm
Package 1 Weight	1.118 kg
Unit Type of Package 2	P06
Number of Units in Package 2	45
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	63.085 kg

Contractual warranty
Warranty	18 months
