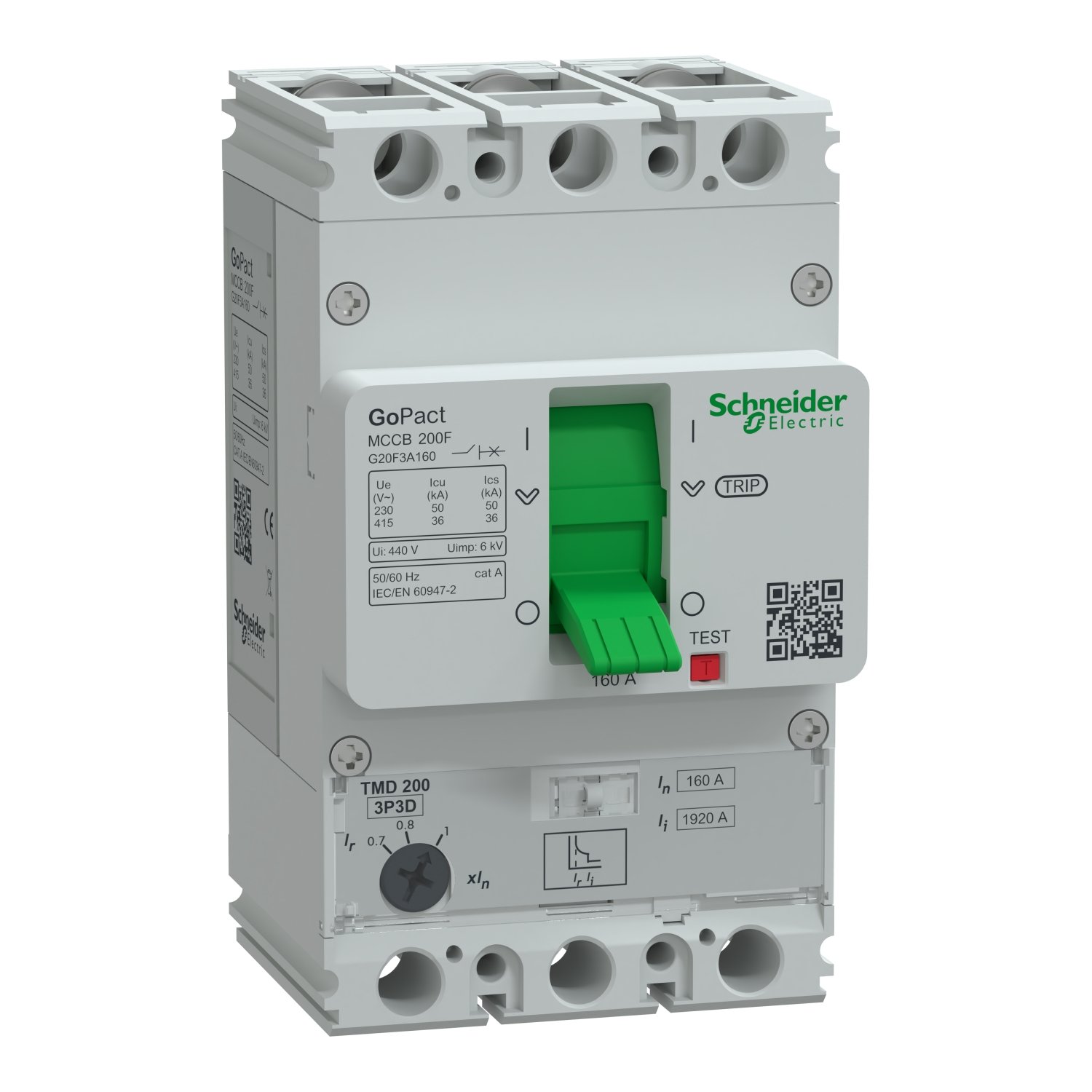

Schneider G20F3A160 | Circuit breaker, GoPact MCCB 200, 3 poles, 36kA at 415VAC, 160A rating, TMD trip unit, adjustable thermal protection

Schneider G20F3A160 | Circuit Breaker, GoPact MCCB 200, 3 poles, 36kA at 415VAC, 160A rating, TMD trip unit, adjustable thermal protection description

The Schneider G20F3A160 circuit breaker is a crucial component in electrical systems, offering advanced protection and control features. Let’s delve into its specifications, functionalities, and why it’s a preferred choice in various industries.

Introduction to Schneider G20F3A160 Circuit Breaker

The G20F3A160 is part of Schneider Electric’s GoPact MCCB series, designed to handle high currents and protect electrical circuits from overloads and short circuits. Its robust construction and intelligent features make it a reliable choice for commercial and industrial applications.

Understanding GoPact MCCB and its Features

GoPact MCCBs are Molded Case Circuit Breakers that combine compact design with high performance. They offer features like thermal-magnetic trip units, adjustable thermal protection, and quick response times to ensure optimal safety and reliability in electrical installations.

Specifications of Schneider G20F3A160

The Schneider G20F3A160 is a 3-pole circuit breaker with a breaking capacity of 36kA at 415VAC, suitable for handling heavy loads and fault currents. With a rating of 160A, it can safeguard electrical systems against overloads and short circuits effectively.

Functionality of TMD Trip Unit

The G20F3A160 comes equipped with a Thermal-Magnetic (TMD) trip unit, which monitors both thermal and magnetic properties to trip the breaker when abnormal conditions are detected. This ensures timely interruption of power in case of faults, preventing damage to equipment and ensuring personnel safety.

Importance of Adjustable Thermal Protection

One of the standout features of the G20F3A160 is its adjustable thermal protection. This allows users to customize the trip settings based on specific application requirements, providing flexibility and enhanced protection tailored to varying load conditions.

Applications and Industries Using G20F3A160

The G20F3A160 finds widespread use in industries such as manufacturing, commercial buildings, data centers, and renewable energy installations. Its versatility and robustness make it suitable for diverse applications where reliable circuit protection is essential.

Benefits of Using Schneider G20F3A160

• Enhanced protection against overloads and short circuits
• Customizable trip settings for specific applications
• Compact design for space-saving installations
• Reliable performance and durability
• Compatibility with various electrical systems and configurations

Future Developments in Circuit Breaker Technology

As technology evolves, circuit breaker manufacturers like Schneider Electric are continually innovating to enhance performance, integrate smart features, and improve energy efficiency. Future developments may include IoT connectivity, predictive maintenance capabilities, and enhanced diagnostics for proactive fault management.

Conclusion

In conclusion, the Schneider G20F3A160 circuit breaker offers advanced protection, customizable settings, and reliability, making it a preferred choice for a wide range of applications. Understanding its features, specifications, and maintenance requirements is essential for ensuring safe and efficient electrical systems.
