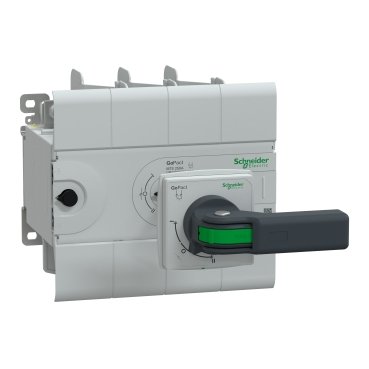

Schneider GM32D4N2504BEE | GoMTS 250 Amps – Extended Rotary Handle – 4 Poles – 415 Vx

Key Specifications

• Product Type: Manual Transfer Switch

• Series: GoPact MTS

• Frame Size: 315

• Number of Poles: 4 poles (three-phase + neutral)

• Rated Current: 250 A

• Rated Voltage: 415 V AC (50/60 Hz)

• Breaking Capacity: 18 kA for 1 second

• Making Capacity: 36 kA peak

• Thermal Current: 250 A at 40°C

• Handle Type: Extended rotary handle for manual operation

• Mounting Type: Fixed, designed for backplate installation

• Protection Rating: IP54 (front face when installed within an enclosure)

Features

• Manual Operation: The GM32D4N2504BEE features an extended rotary handle, allowing for easy manual switching between two power sources. This provides reliable control over electrical systems in situations where automatic transfer is not required.

• High Breaking Capacity: With a breaking capacity of 18 kA, the switch can safely interrupt high fault currents, ensuring protection against short circuits and electrical faults.

• Safety Mechanisms: Includes mechanical interlocking to prevent simultaneous connection to both power sources, and padlocking options in the OFF position for added safety during maintenance or service.

• Environmental Protection: The IP54 rating protects against dust and splashes of water, making it suitable for use in a variety of environments, including industrial and commercial settings.

• Compact Design: The switch’s compact size makes it easy to install in electrical panels, saving space and ensuring a neat setup.

Applications

• Industrial Facilities: Ideal for plants and factories where uninterrupted power supply is critical and manual source switching is required.

• Commercial Buildings: Suitable for offices, retail environments, and other commercial spaces to ensure reliable power transitions.

• Critical Infrastructure: Used in data centers, hospitals, and other facilities where maintaining a continuous power supply is vital.
