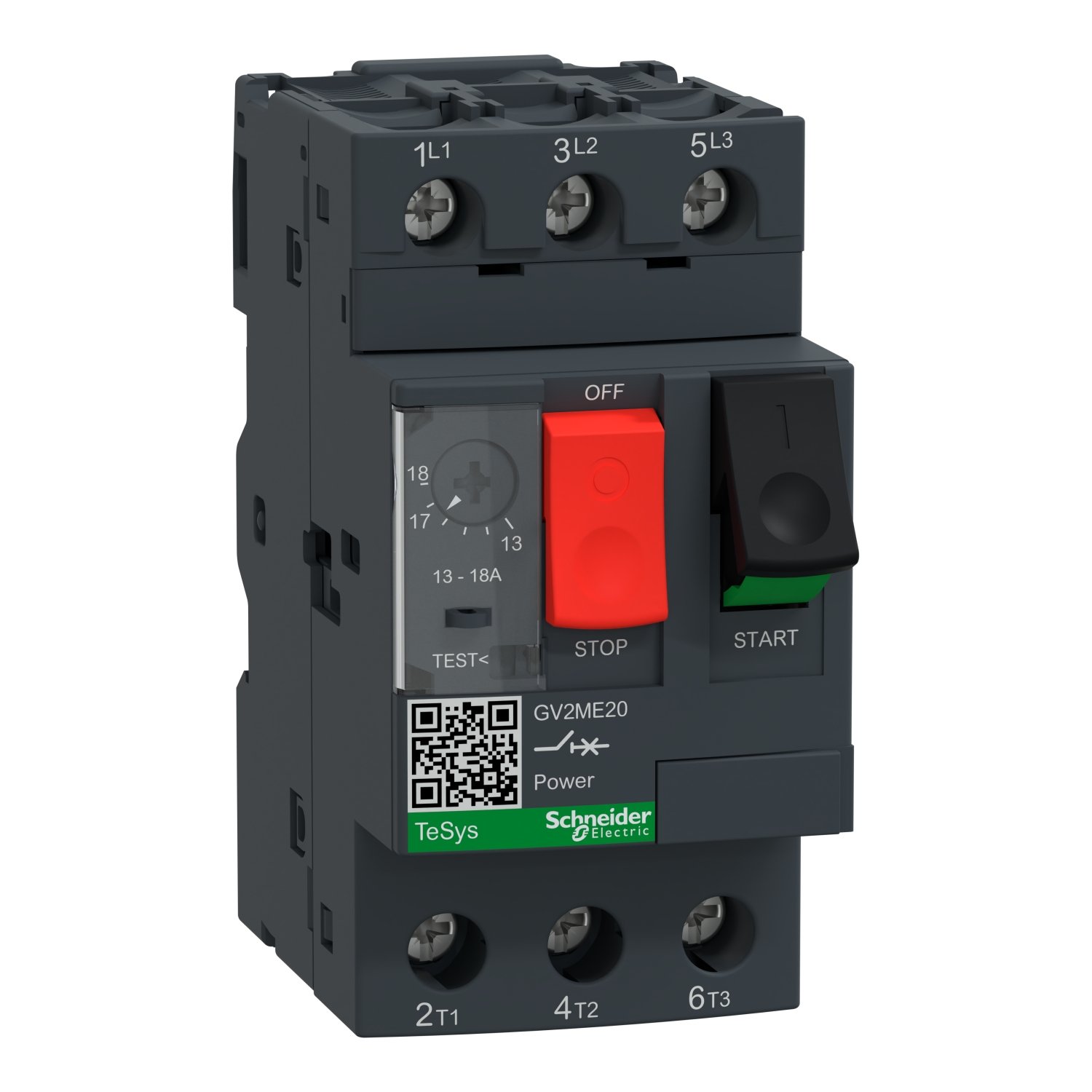

Schneider GV2ME20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals
Schneider GV2ME20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals
Original price was: EGP 54,635.00.EGP 29,503.00Current price is: EGP 29,503.00.
Description
Schneider GV2ME20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals
The Schneider GV2ME20 is a durable and compact motor circuit breaker from the trusted TeSys GV2 series, designed to provide efficient protection for motors within the 13 to 18 Ampere range. It offers both thermal and magnetic protection, making it ideal for a wide range of industrial and commercial motor applications.
Key Features:
-
Product Reference: GV2ME20
-
Brand: Schneider Electric
-
Series: TeSys GV2
-
Device Type: Motor Circuit Breaker
-
Protection Type: Thermal-magnetic
-
Number of Poles: 3P (Three poles)
-
Adjustable Current Range: 13 to 18 A
-
Terminals: Screw clamp terminals
-
Manual Operation: ON/OFF push-buttons on the front panel
Primary Applications:
-
Designed for motor protection
-
Ideal for industrial control panels, HVAC systems, compressors, fans, and pumps
-
Widely used in machine automation and building infrastructure
Key Advantages:
-
Thermal Protection: Prevents overheating from motor overloads
-
Magnetic Protection: Instantaneous trip for short-circuit events
-
Compact Design: Saves space in panels and MCCs
-
Manual Reset: With clear trip indicator
-
Easy Adjustment: Dial to set precise current range
-
Robust Construction: Built for reliable and long-term operation
Technical Specifications:
-
Current Range: 13 – 18 A
-
Rated Insulation Voltage: 690V
-
Rated Operational Voltage: Up to 690V AC
-
Frequency: 50/60 Hz
-
Breaking Capacity: High, suited for industrial environments
-
Mounting: DIN rail or screw mount
-
Standards Compliance: IEC 60947-2 and IEC 60947-4-1
Use Case Examples:
-
Control cabinets for industrial machines
-
Pump and fan motor protection
-
Conveyor systems and automated production lines
-
Electrical distribution in HVAC setups
User Benefits:
-
All-in-One Protection: Combines overload and short-circuit protection
-
Quick and Easy Installation with standard screw terminals
-
Expandable System: Can be equipped with auxiliary contacts, shunt trip, and more
-
Visual Status Display helps in fast diagnostics
-
Reliable Motor Start/Stop Control directly from the front panel
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV2 TeSys Deca |
| Product or component typee | Motor circuit breaker |
| Device short name | GV2ME |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) |
| Motor power kW | 7.5 kW at 400/415 V AC 50/60 Hz 9 kW at 500 V AC 50/60 Hz 15 kW at 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 6 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| control type | Push-button |
| [In] rated current | 18 A |
| Thermal protection adjustment range | 13…18 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 223 A |
| [Ith] conventional free air thermal current | 18 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| height | 89 mm |
| Depth | 78.5 mm |
| Net weight | 0.26 kg |
| Colour | Dark grey |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 |
|---|---|
| product certifications | CCC UL CSA EAC ATEX LROS (Lloyds register of shipping) BV RINA DNV-GL UKCA |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | Conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.300 cm |
| Package 1 Width | 4.800 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 282.900 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.142 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 124.452 kg |
| Warranty | 18 months |
|---|
