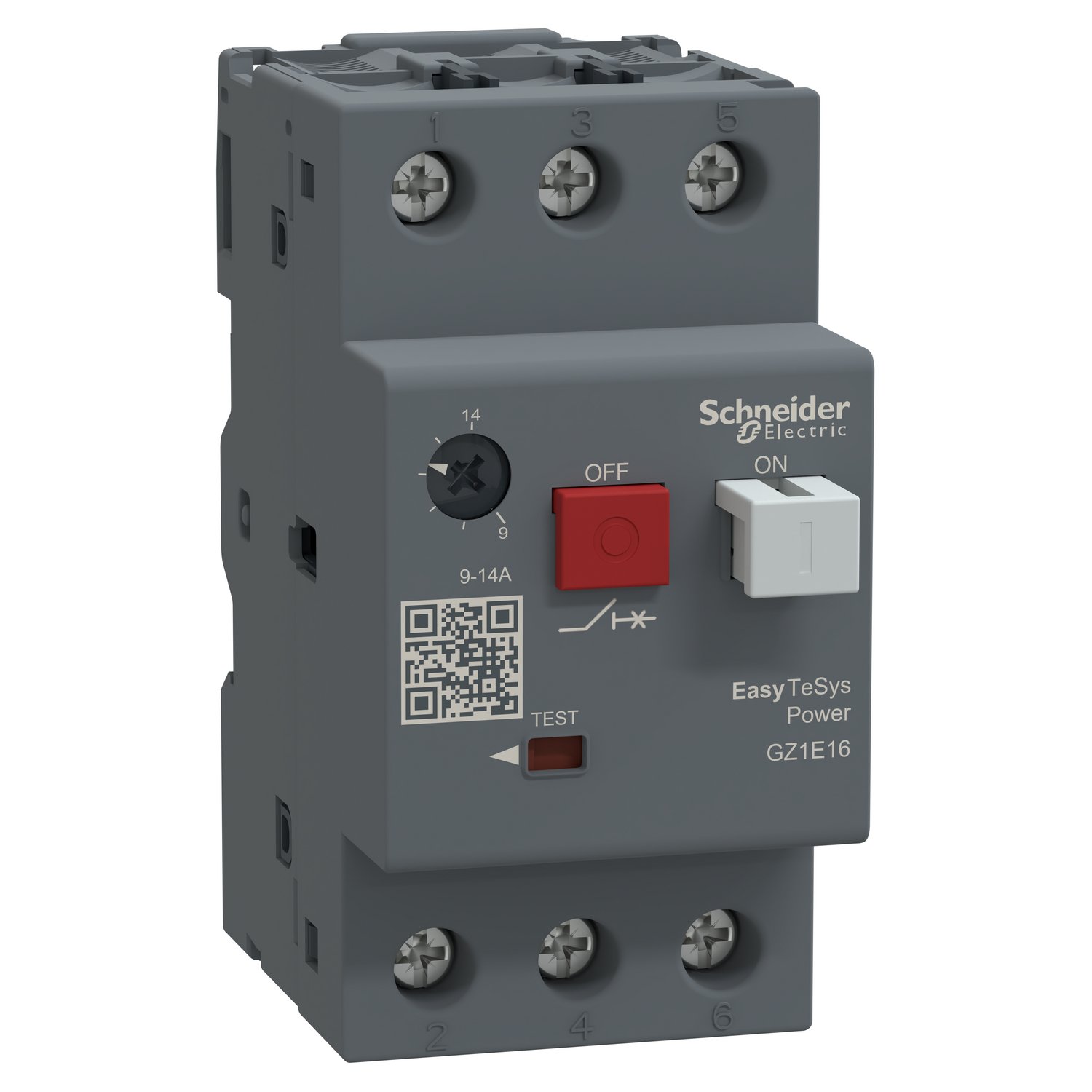

Schneider GZ1E16 | Motor circuit breaker,Easy TeSys Power,GZ1E,AC-3,3P,9..14A,thermal magnetic trip
Original price was: EGP 24,582.00.EGP 13,275.00Current price is: EGP 13,275.00.
Description
Schneider GZ1E16 | Motor circuit breaker, EasyPact, TVS GZ1E, AC-3, 3P, 9..14A, thermal magnetic detection
Schneider GZ1E16 Motor Circuit Breaker: Ensuring Reliable Motor Protection
In the world of industrial electrical systems, ensuring the safety and efficient operation of motors is paramount. One essential component in this realm is the motor circuit breaker, with the Schneider GZ1E16 standing out as a reliable and advanced solution for motor protection needs.
Introduction to Schneider GZ1E16 Motor Circuit Breaker
The Schneider GZ1E16 is a motor circuit breaker designed to provide robust protection for motors against overloads, short circuits, and phase failures. It combines advanced technology with ease of use, making it a preferred choice in various industries.
Understanding EasyPact and TVS GZ1E
The GZ1E16 is part of Schneider Electric’s EasyPact TVS range, known for its high-performance circuit protection solutions. The TVS GZ1E series offers a wide range of current ratings and features, catering to diverse industrial applications.
Specifications of Schneider GZ1E16
The GZ1E16 is a 3-pole circuit breaker with an AC-3 rating, suitable for motor control in the range of 9 to 14 amps. Its thermal magnetic detection system ensures quick and accurate response to faults, enhancing motor safety.
AC-3 Rating and Thermal Magnetic Detection
The AC-3 rating signifies the GZ1E16’s capability to handle motor loads during normal running conditions. The thermal magnetic detection mechanism monitors both thermal and magnetic effects, providing comprehensive protection.
Importance of Motor Circuit Breakers in Industrial Applications
Motor circuit breakers play a crucial role in preventing damage to motors, reducing downtime, and ensuring operational continuity in industrial setups. They safeguard equipment and personnel while optimizing performance.
Installation and Maintenance of Schneider GZ1E16
Installing and maintaining the GZ1E16 is straightforward, thanks to its user-friendly design and clear instructions provided by Schneider Electric. Regular inspections and testing contribute to its long-term reliability.
Benefits of Using Schneider GZ1E16 in Motor Protection
- Enhanced motor longevity and performance
- Rapid fault detection and isolation
- Compatibility with various motor types and configurations
- Compliance with industry standards for electrical safety
Real-Life Applications and Industries Using GZ1E16
The GZ1E16 finds applications in diverse sectors such as manufacturing, HVAC systems, water treatment plants, and commercial facilities. Its versatility and reliability make it a preferred choice across different industries.
Differences Between Thermal Magnetic and Electronic Motor Protection
While thermal magnetic protection relies on temperature and current variations, electronic motor protection offers more precise monitoring and control, suited for advanced motor management systems.
Common Issues and Troubleshooting Tips
- Overload trips: Check motor load and adjust settings if necessary.
- Short circuits: Inspect wiring and connections for faults.
- Phase failures: Verify phase balance and electrical supply integrity.
Advantages of AC-3 Rated Circuit Breakers
AC-3 rated circuit breakers like the GZ1E16 ensure stable operation under typical motor loads, contributing to system efficiency and safety. They are integral components in motor control panels and switchgear assemblies.
Future Trends in Motor Circuit Breaker Technology
The evolution of motor circuit breakers includes features like remote monitoring, predictive maintenance algorithms, and enhanced connectivity with automation systems, aligning with Industry 4.0 trends.
Sustainability and Energy Efficiency Considerations
Modern motor circuit breakers prioritize energy efficiency, reducing power losses and environmental impact. Schneider Electric’s solutions align with sustainability goals while maintaining high performance standards.
Conclusion
The Schneider GZ1E16 motor circuit breaker offers a comprehensive solution for motor protection, combining reliability, advanced technology, and user-friendly features. Its application versatility and adherence to safety standards make it a valuable asset in various industrial settings.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| range of product | Easy TeSys Power |
| product or component type | Circuit breaker |
| Device short name | GZ1E |
| device application | Motor |
| Trip unit technology | Thermal-magnetic |
| Suitability for isolation | Yes conforming to IEC 60947-1 appendix 7.1.6 |
| Colour | Grey (RAL 7011) |
| Poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | AC-3 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| mounting mode | By clips By screws |
| mounting support | Rail |
| Mounting position | Any position |
| Motor power kW | 5.5 kW at 400 V AC 50/60 Hz 5.5 kW at 440 V AC 50/60 Hz 9 kW at 500 V AC 50/60 Hz 11 kW at 690 V AC 50/60 Hz |
| Breaking capacity | Icu: >= 100 kA at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Push-button |
| Thermal protection adjustment range | 9…14 A |
| Magnetic tripping current | 170 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Power dissipation | 2.5 W (per pole) |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 |
| Maximum operating rate | 25 cyc/h |
| Connections - terminals | Screw clamp terminals 2 1…6 mm² - cable stiffness: solid Screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end Screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
| Height | 89 mm |
| Width | 44.5 mm |
| Depth | 78 mm |
| net weight | 0.26 kg |
| Standards | IEC 60947-4 IEC 60947-2 |
|---|---|
| Protective treatment | TH |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 274.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.909 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 115.000 kg |
