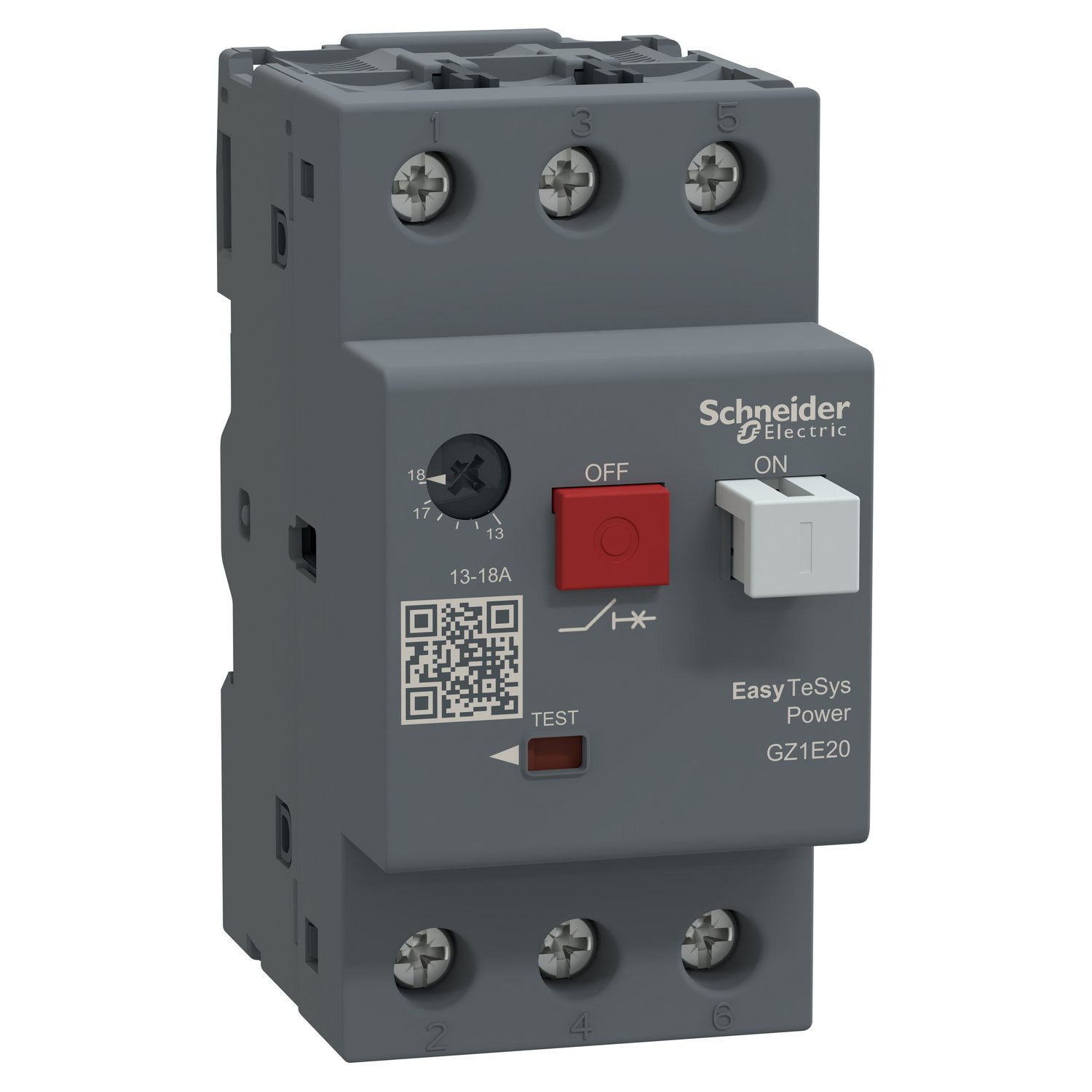

Schneider GZ1E20 | Motor circuit breaker,Easy TeSys Power,GZ1E,AC-3,3P,13..18A,thermal magnetic trip
Original price was: EGP 24,582.00.EGP 13,275.00Current price is: EGP 13,275.00.
Description
Schneider GZ1E20 | Motor circuit breaker, EasyPact, TVS GZ1E, AC-3, 3P, 13..18A, thermal magnetic detection
Schneider GZ1E20: Comprehensive Overview
Introduction
The Schneider GZ1E20 is a robust and versatile enclosure accessory designed for compatibility with various Schneider Electric motor circuit breakers and contactors. Engineered to offer protection and ease of use, the GZ1E20 ensures reliable operation in industrial and commercial environments.
This article highlights the technical specifications, features, applications, and benefits of the Schneider GZ1E20.
Technical Specifications
- Model Number: GZ1E20
- Type: Enclosure for motor circuit breakers and contactors
- Material: High-grade thermoplastic, offering durability and insulation
- Dimensions: Compact design to fit standard motor protection devices
- Mounting Type: Surface or panel-mounted
- IP Rating: Provides protection against dust and water (specific rating depends on product configuration)
- Standards Compliance: Adheres to IEC 60947 for low-voltage switchgear and controlgear
Key Features
- Durable Construction:
- Made of impact-resistant materials to ensure longevity in harsh environments.
- Compact and Ergonomic Design:
- Offers easy integration into control panels without consuming excessive space.
- Enhanced Safety:
- Protects internal components from external factors such as dust, moisture, and accidental contact.
- Ease of Installation:
- Features pre-drilled mounting points for fast and secure setup.
- Versatile Compatibility:
- Designed to accommodate Schneider motor circuit breakers and other devices within the same range.
Applications
The Schneider GZ1E20 is ideal for:
- Industrial Motor Protection: Housing motor circuit breakers to safeguard motors from overloads and short circuits.
- Power Distribution Systems: Ensuring secure and organized installation of protection devices.
- Control Panels: Providing a safe enclosure for critical control components.
- Outdoor Applications: Protecting electrical devices from environmental factors when used with higher IP-rated variants.
Benefits
- Improved Safety: Shields personnel and equipment from electrical hazards.
- Longevity: Ensures the durability of housed components by protecting them from physical and environmental damage.
- Streamlined Maintenance: Designed for easy access to internal components during servicing.
- Cost-Effective: Combines durability and functionality, reducing long-term replacement and maintenance costs.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| range of product | Easy TeSys Power |
| product or component type | Circuit breaker |
| Device short name | GZ1E |
| device application | Motor |
| Trip unit technology | Thermal-magnetic |
| Suitability for isolation | Yes conforming to IEC 60947-1 appendix 7.1.6 |
| Colour | Grey (RAL 7011) |
| Poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | AC-3 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| mounting mode | By clips By screws |
| mounting support | Rail |
| Mounting position | Any position |
| Motor power kW | 4 kW at 230 V AC 50/60 Hz 7.5 kW at 400 V AC 50/60 Hz 9 kW at 440 V AC 50/60 Hz 10 kW at 500 V AC 50/60 Hz 15 kW at 690 V AC 50/60 Hz |
| Breaking capacity | Icu: >= 100 kA at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 2 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 10 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 6 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Push-button |
| Thermal protection adjustment range | 13…18 A |
| Magnetic tripping current | 223 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Power dissipation | 2.5 W (per pole) |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 |
| Maximum operating rate | 25 cyc/h |
| Connections - terminals | Screw clamp terminals 2 1…6 mm² - cable stiffness: solid Screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end Screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
| Height | 89 mm |
| Width | 44.5 mm |
| Depth | 78 mm |
| net weight | 0.26 kg |
| Standards | IEC 60947-2 IEC 60947-4 |
|---|---|
| Protective treatment | TH |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.800 cm |
| Package 1 Width | 8.400 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 272.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.884 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 118.644 kg |
