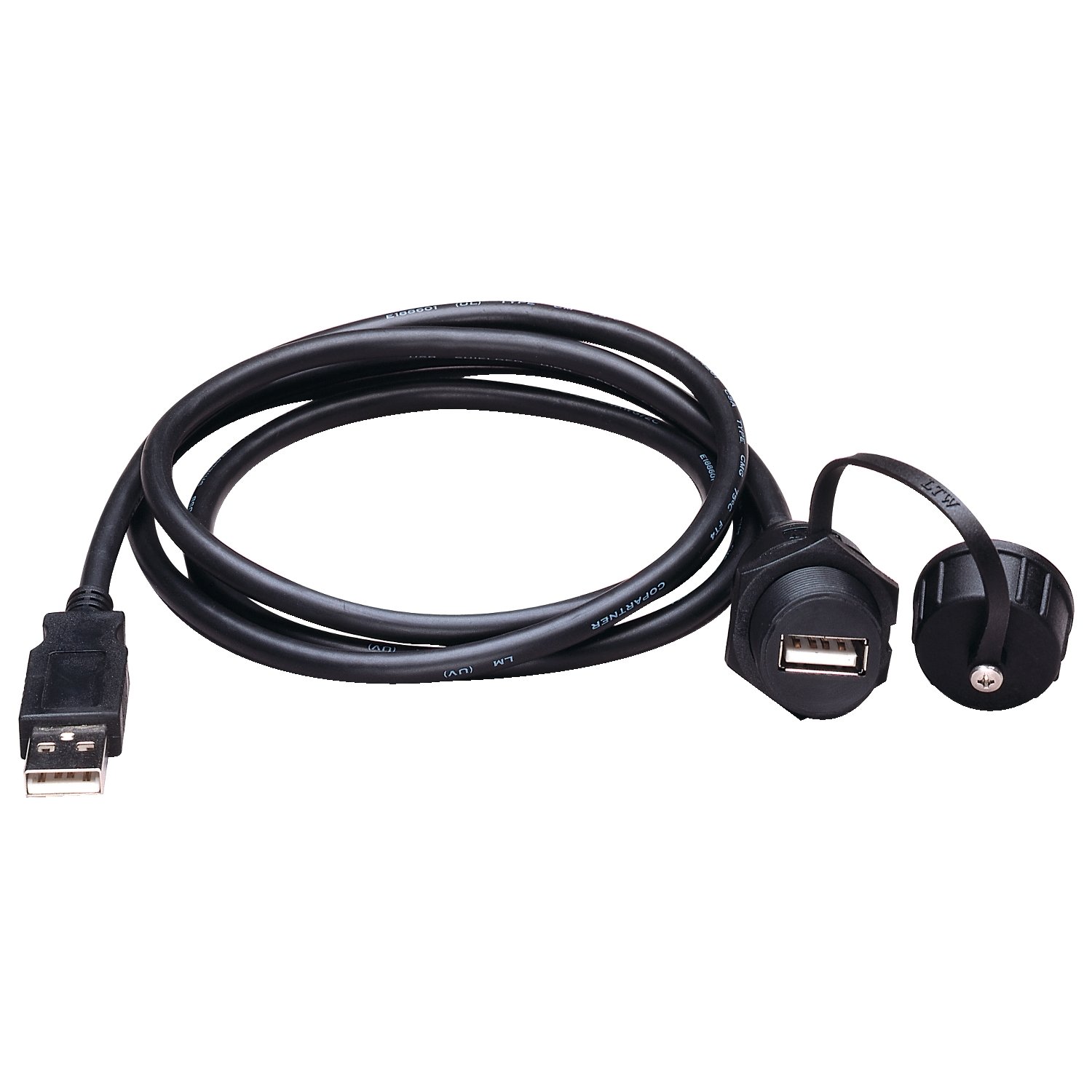

Schneider HMIZSUSBB2 | Extension cable, Harmony ST6, USB Panel mount
- Schneider HMIZSUSBB2 | Extension cable, Harmony ST6, USB Panel mount
Designed for Harmony ST6 HMIs to ensure reliable front panel USB access
IP65-rated panel mount protects against dust and liquids
Improves safety by allowing USB use without opening enclosures
Industrial-grade cable suitable for demanding environments
Simple plug-and-play installation for quick deployment
Description
Schneider HMIZSUSBB2 | Extension cable, Harmony ST6, USB Panel mount
The Schneider HMIZSUSBB2 is a robust industrial-grade USB extension cable designed for the Harmony ST6 human-machine interface (HMI) series. It offers a secure and user-friendly method for adding a panel-mounted USB port to an HMI system, allowing easy access to USB functionality without needing to open the electrical cabinet.
This cable enhances operator convenience and system maintenance efficiency by enabling external access to USB devices such as flash drives, configuration tools, or programming equipment.
Technical Specifications HMIZSUSBB2
-
Product Type: USB extension cable
-
Mounting Type: Panel mount (front side installation)
-
Connectors:
-
Internal: USB Type A male
-
External: USB Type A female (panel side)
-
-
Compatibility: Harmony ST6 HMI panels
-
Cable Length: Approx. 2 meters (refer to datasheet for exact value)
-
IP Rating: Up to IP65 when correctly installed
-
Operating Environment: Industrial, suitable for harsh conditions
-
Material: Rugged industrial-grade plastic and metal components
Key Features HMIZSUSBB2
-
Easy USB Access – Provides direct access to USB ports from the front of the panel, useful for uploading programs, extracting logs, or connecting external devices.
-
High Protection Level – When properly mounted, the panel port achieves IP65 protection, guarding against dust and water ingress.
-
Time-Saving Installation – Plug-and-play design with no special tools required.
-
Enhanced Safety – Operators can access the USB without opening the enclosure, reducing electrical hazard exposure.
-
Dedicated Compatibility – Tailored for Harmony ST6 series, ensuring mechanical and functional compatibility.
Applications:
-
Industrial control panels in manufacturing plants
-
HMI operator workstations requiring external USB ports
-
Machinery with Harmony ST6 HMIs for routine configuration or updates
-
OEM systems where easy USB access is frequently needed
-
Environments where control cabinet access is restricted or regulated
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony ST6 |
|---|---|
| Product or component type | Extension cable |
| Accessory / separate part category | Connection accessory |
| Accessory / separate part type | Connecting cable |
| Accessory / separate part destination | STM6 display |
| Cable length | 1 m |
|---|---|
| Electrical connection | 1 male connector micro B USB 1 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.0 cm |
| Package 1 Width | 2.1 cm |
| Package 1 Length | 4.0 cm |
| Package 1 Weight | 74.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.015 kg |
