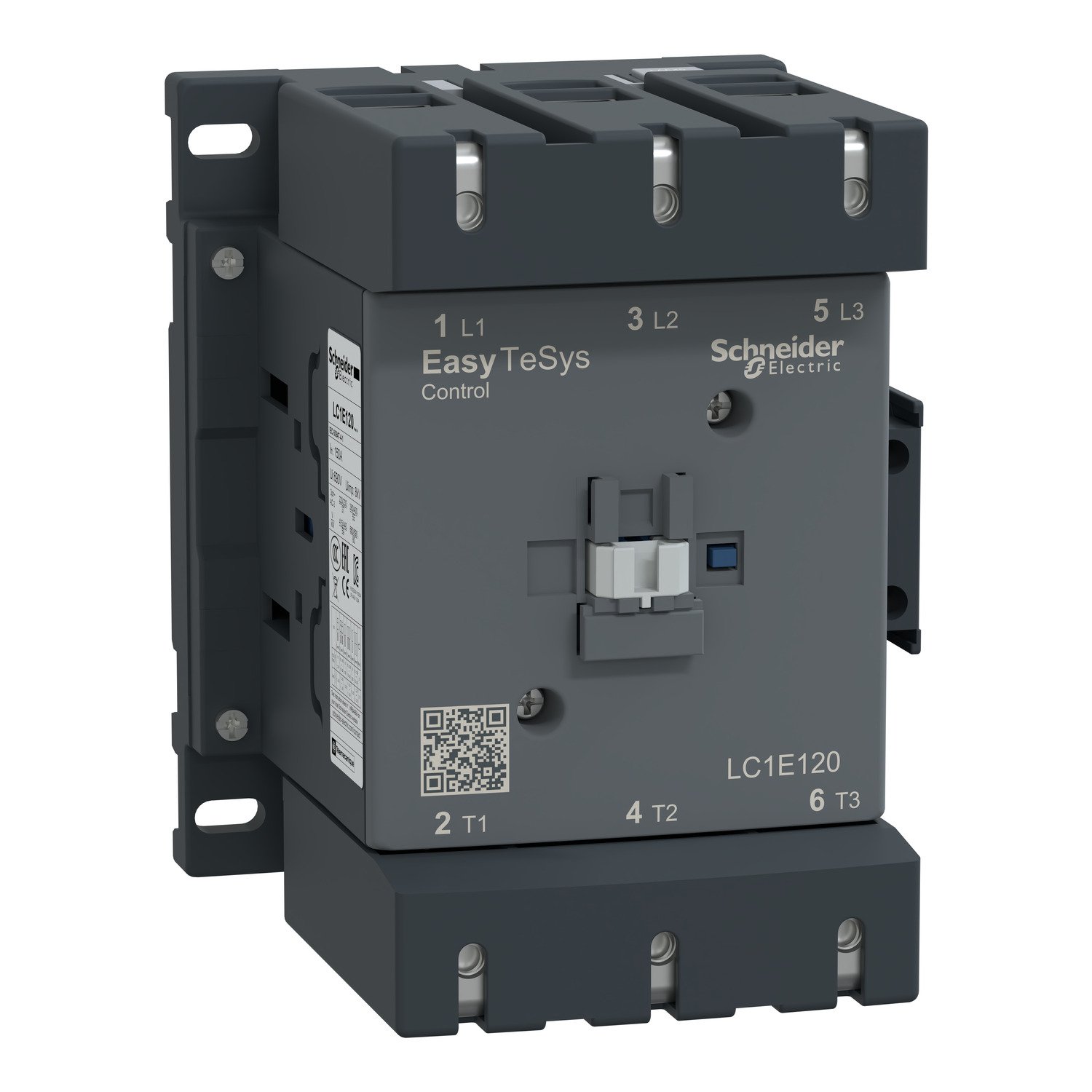

Schneider LC1E120M5 | Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,120A,220V AC coil,50Hz

Product Code:

LC1E120M5

Tags:

120A, 220V AC coil, 3P(3NO), 50Hz, AC-3, APC Essential SurgeArrest 1 Outlet 2 USB Ports Black 230V Germany, Contactor, EasyPact TVS

Brand: Schneider Electric

Schneider LC1E120M5| Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,120A,220V AC coil,50Hz

Name: Schneider LC1E120M5 | Contactor,EasyPact TVS,3P(3NO),AC-3,&lt;=440V,120A,220V AC coil,50Hz
Brand: Schneider Electric
SKU: LC1E120M5
Availability: OutOfStock

Schneider LC1E120M5 | EasyPact TVS Contactor, 3P (3NO), AC-3, ≤440V, 120A, 220V AC Coil, 50Hz

1. Introduction

The Schneider LC1E120M5 is a 3-pole (3NO) contactor from the EasyPact TVS series, designed for motor control and power switching in industrial applications. It supports AC-3 applications up to 440V with a current rating of 120A and operates with a 220V AC coil (50Hz). This contactor is engineered for reliable performance, ensuring efficient switching of high-power loads.

2. Key Features

Rated Current: 120A (AC-3)
Voltage Rating: ≤440V
Number of Poles: 3P (3 Normally Open – 3NO)
Coil Voltage: 220V AC, 50Hz
High Electrical & Mechanical Endurance
Durable Industrial Design
Compatible with Overload Relays for enhanced motor protection
Easy Installation & Maintenance

3. Technical Specifications

Product Series: EasyPact TVS
Utilization Category: AC-3 (Motor Control Applications)
Rated Current (Ie): 120A
Operating Voltage: ≤440V
Coil Voltage: 220V AC, 50Hz
Number of Poles: 3P (3NO)
Mechanical Durability: Up to 10 million operations
Electrical Durability: Up to 1 million operations (AC-3)
Operating Temperature: -5°C to +55°C
Compliance Standards: IEC 60947-4-1

4. Applications

The LC1E120M5 contactor is widely used in heavy industrial and commercial applications, such as:

Motor Control – Efficient switching for high-power motors
HVAC Systems – Controls air conditioning units and compressors
Pumping Systems – Ideal for industrial water and fluid pumps
Power Distribution – Manages high-current loads in electrical panels
Heavy Machinery – Supports automation in manufacturing plants

5. Benefits

High-Performance & Reliable Operation – Designed for industrial environments
Compact & Space-Saving Design – Fits well in control panels
Versatile Application Range – Suitable for multiple industrial needs
Quick Installation & Maintenance – Reduces system downtime
Seamless Compatibility – Works with Schneider overload relays for motor protection

brands	Schneider Electric

Main
Range	Easy TeSys
Range of product	Easy TeSys Control
Product or component type	Contactor
Device short name	LC1E
Contactor application	Motor control Resistive load
Utilisation category	AC-3 AC-3e AC-1
Poles description	3P
[Ue] rated operational voltage	Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current	120 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 96 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 150 A (at <40 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage	220 V AC 50 Hz

Complementary
Motor power kW	37 kW at 220...230 V AC 50/60 Hz 55 kW at 380...400 V AC 50/60 Hz 59 kW at 415 V AC 50/60 Hz 59 kW at 440 V AC 50/60 Hz 75 kW at 500 V AC 50/60 Hz 80 kW at 660...690 V AC 50/60 Hz
Pole contact composition	3 NO
[Ith] conventional free air thermal current	150 A (at 40 °C) for power circuit
Irms rated making capacity	1200 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity	960 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current	1100 A 40 °C - 10 s for power circuit
Associated fuse rating	250 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 10 A gG at <= 690 V coordination type 1 for power circuit
Average impedance	0.6 mOhm - Ith 150 A 50 Hz for power circuit
Power dissipation per pole	8.6 W AC-3 14 W AC-1
[Ui] rated insulation voltage	690 V conforming to IEC 60947-4-1
Overvoltage category	III
pollution degree	3
[Uimp] rated impulse withstand voltage	8 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability	4000000 cycles
Electrical durability	800000 cycles AC-3 250000 cycles AC-1
Control circuit type	AC at 50 Hz
Control circuit voltage limits	0.85...1.1 Uc (-5…55 °C):operational 50 Hz 0.35...0.55 Uc (-5…55 °C):drop-out 50 Hz
Inrush power in VA	300 VA 50 Hz cos phi 0.8 (at 20 °C) 300 VA 60 Hz cos phi 0.8 (at 20 °C)
Hold-in power consumption in VA	22 VA 50 Hz cos phi 0.3 (at 20 °C) 22 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation	3…8 W for control circuit
Operating time	20...50 ms on closing 6...20 ms on opening
Maximum operating rate	1200 cyc/h 55 °C
Connections - terminals	Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 10…120 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 20…170 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 10…120 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 20…170 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end
Tightening torque	Power circuit: 12 N.m Control circuit: 1.2 N.m
Auxiliary contact composition	1 NO + 1 NC
Minimum switching voltage	17 V for control circuit
Minimum switching current	5 mA for control circuit
Insulation resistance	> 10 MOhm for control circuit
Non-overlap time	1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact
Mounting support	DIN rail Plate

Environment
Standards	IEC 60947-5-1 IEC 60947-4-1 IEC 60947-1
Product certifications	EAC CE
IP degree of protection	IP2X conforming to IEC 60529
Protective treatment	TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Permissible ambient air temperature around the device	-20…70 °C at Uc -60…80 °C storage -5…55 °C operation
Operating altitude	3000 m without derating
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Height	158 mm
Width	120 mm
Depth	132 mm
Net weight	2.3 kg

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	16.500 cm
Package 1 Width	17.500 cm
Package 1 Length	21.000 cm
Package 1 Weight	2.420 kg
Unit Type of Package 2	S06
Number of Units in Package 2	24
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	70.500 kg

Contractual warranty
Warranty	18 months

Main Document

Data Sheet : LC1E120M5
