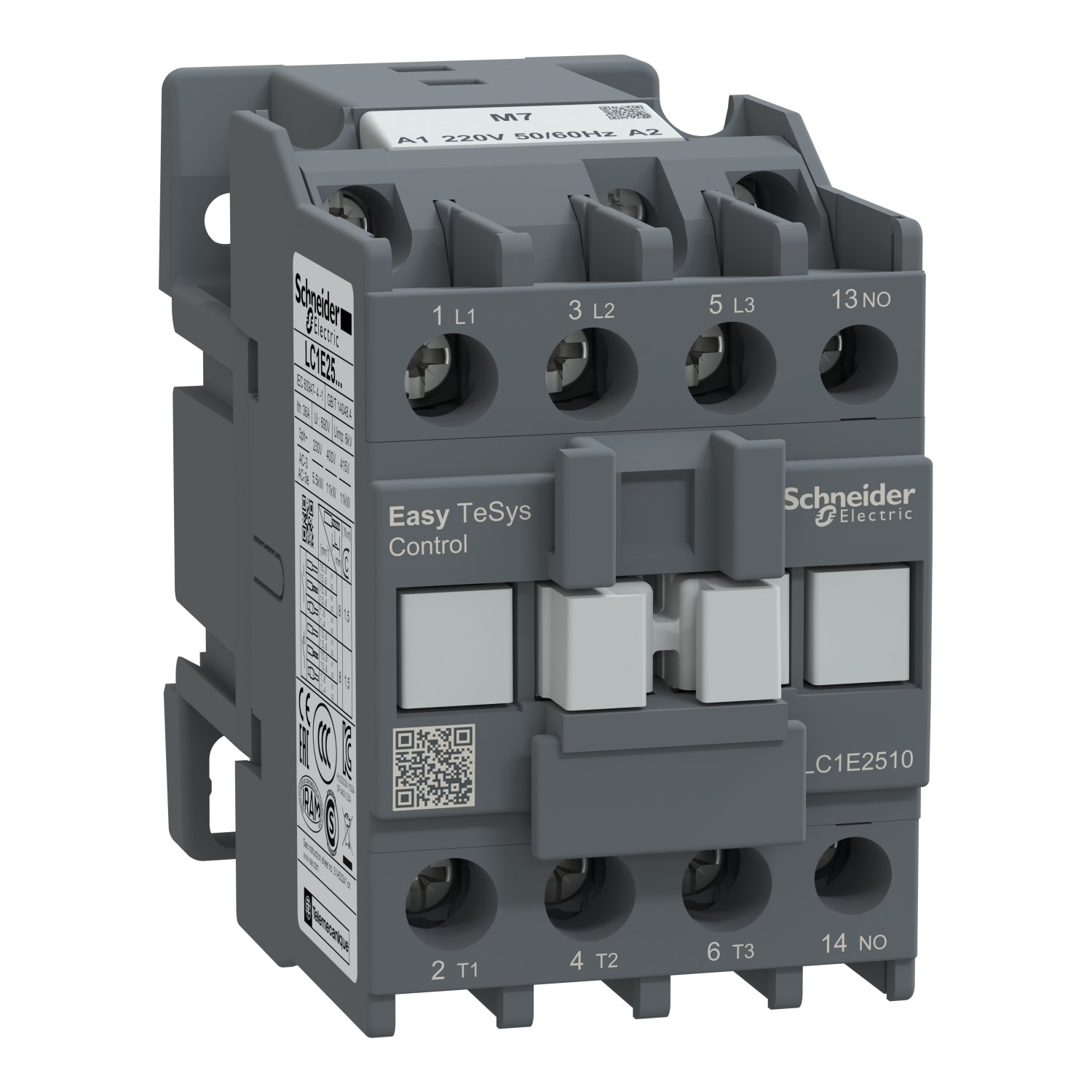

Schneider LC1E2510M7 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,25A,220V AC coil,50/60Hz,1NO auxiliary contact
Original price was: EGP 21,068.00.EGP 11,377.00Current price is: EGP 11,377.00.
Description
Schneider LC1E2510M7 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,25A,220V AC coil,50/60Hz,1NO auxiliary contact
Technical Specifications
- Model Number: LC1E2510M7
- Series: Easy TeSys LC1E
- Contactor Type: Electromagnetic Contactor
- Number of Poles: 3P (Three-Pole)
- Main Contact Configuration: 3 Normally Open (3NO)
- Auxiliary Contact Configuration: 1 Normally Open (1NO)
- Utilization Category: AC-3
- Rated Operational Voltage (Ue): ≤ 440V AC
- Rated Current (Ie) for AC-3: 25A
- Coil Voltage: 220V AC (50/60Hz)
- Coil Consumption: 9VA (holding), 70VA (inrush)
- Mechanical Durability: Up to 10 million operations
- Electrical Durability: Up to 1 million operations at rated load
- Operating Temperature Range: -5°C to +55°C
- Mounting Type: DIN Rail or Panel Mounting
- Connection Type: Screw Terminals
- Certifications & Standards: IEC 60947-4-1, UL, CSA, CE
Key Features
-
Reliable Motor Control
- Suitable for direct motor starting, reversing, and switching operations in AC-3 applications.
-
High Durability and Longevity
- Offers up to 10 million mechanical operations and 1 million electrical operations, ensuring long-term reliability.
-
Compact and Space-Saving Design
- Optimized for control panels and industrial motor control centers, reducing panel space usage.
-
Versatile Auxiliary Contact (1NO)
- Allows for feedback signaling, interlocking, and control circuit integration.
-
Efficient Coil Performance (220V AC, 50/60Hz)
- Operates on a standard voltage, making it suitable for various industrial power systems.
-
Flexible Mounting Options
- Supports both DIN rail and panel mounting, making installation easy and adaptable.
-
Robust and Industrial-Grade Build
- Designed for harsh environments, withstanding high temperatures and electrical loads.
-
Compliant with Global Standards
- Certified under IEC 60947-4-1, UL, CSA, and CE, ensuring safe and efficient operation worldwide.
Applications
- Motor Control & Automation
- Used in motor starters, pump control systems, conveyor systems, and compressors.
- Industrial Machinery & Equipment
- Controls motors in manufacturing, material handling, and industrial automation systems.
- HVAC Systems
- Ideal for air conditioning units, ventilation systems, and heating systems.
- Power Distribution & Control Panels
- Ensures reliable switching in electrical distribution boards.
- Lighting & Heating Circuits
- Used in commercial and industrial lighting and heating applications.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| contactor application | Motor control Resistive load |
| Utilisation category | AC-1 AC-3 |
| poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 25 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 36 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Motor power kW | 5.5 kW at 220...230 V AC 50/60 Hz 11 kW at 380...400 V 11 kW at 415 V 11 kW at 440 V 15 kW at 500 V 15 kW at 660...690 V |
|---|---|
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 36 A (at 55 °C) |
| Irms rated making capacity | 250 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 200 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 240 A 40 °C - 10 s for power circuit 120 A 40 °C - 60 s for power circuit 50 A 40 °C - 600 s for power circuit |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 40 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 2.5 mOhm - Ith 36 A 50 Hz for power circuit |
| Power dissipation per pole | 1.6 W AC-3 3.2 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 1200000 cycles AC-3 350000 cycles AC-1 |
| Control circuit type | AC at 50/60 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5…55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5…55 °C):drop-out 50/60 Hz |
| Inrush power in VA | 95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W for control circuit |
| Operating time | 12...22 ms on closing 4...19 ms on opening |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 1.5 N.m |
| Auxiliary contact composition | 1 NO |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| mounting support | DIN rail Plate |
| Standards | IEC 60947-1 IEC 60947-4-1 IEC 60947-5-1 |
|---|---|
| Product certifications | EAC CE |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Permissible ambient air temperature around the device | -20…70 °C at Uc -60…80 °C storage -5…55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor closed (10 Gn for 11 ms) Shocks contactor open (6 Gn for 11 ms) |
| Height | 74 mm |
| Width | 45 mm |
| Depth | 85 mm |
| Net weight | 0.36 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 5.000 cm |
| Package 1 Weight | 363.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 13.646 kg |
