Schneider LC1E3810M7 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,38A,220V AC coil,50/60Hz,1NO auxiliary contact
Schneider LC1E3810M7 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,38A,220V AC coil,50/60Hz,1NO auxiliary contact
Original price was: EGP 37,221.00.EGP 2,010.00Current price is: EGP 2,010.00.
Description

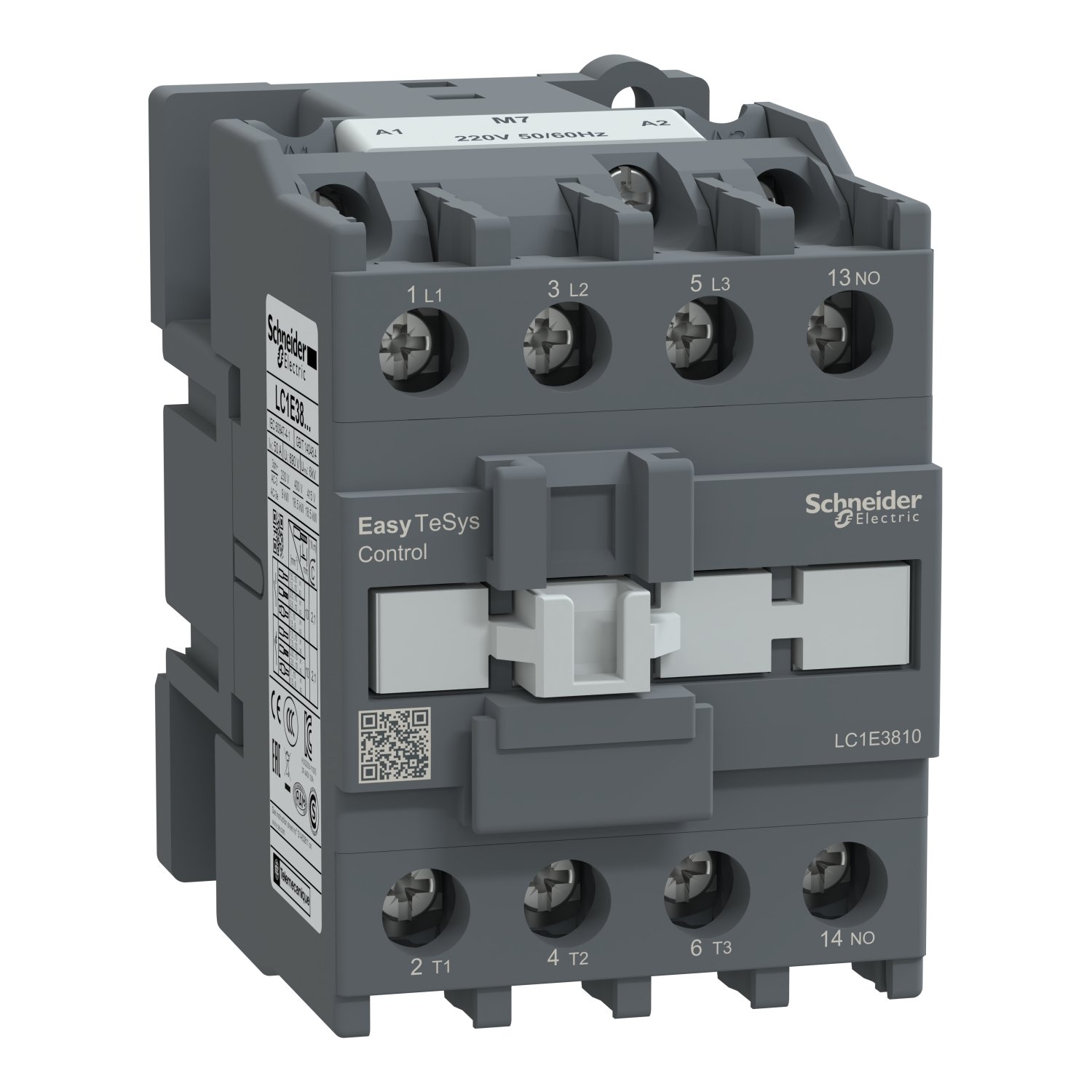

Schneider LC1E3810M7 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,38A,220V AC coil,50/60Hz,1NO auxiliary contact
The Schneider LC1E3810M7 is a high-performance contactor from the Easy TeSys series, designed for reliable switching and control of electrical circuits in industrial applications. With a 38A rated current capacity and 220V AC coil voltage, this contactor ensures efficient operation, making it ideal for various electrical control systems.
Technical Specifications
Below are the key technical details of the LC1E3810M7 contactor:
- Model: LC1E3810M7
- Brand: Schneider Electric
- Number of Poles: 3P (3NO)
- Maximum Operating Voltage (AC-3/AC-3e): Up to 440V
- Rated Current (AC-3): 38A
- Coil Voltage: 220V AC
- Frequency: 50/60Hz
- Auxiliary Contact: 1NO (Normally Open)
- Design: Compact and robust for easy installation
- Compliance: Meets IEC 60947-4-1 standards
Key Features
The Schneider LC1E3810M7 contactor comes with several advantages that make it a preferred choice for professionals:
- High Performance – Ensures stable and efficient control of electrical loads.
- Compact and Sturdy Design – Optimized for installation in tight spaces while maintaining durability.
- Easy Wiring – Simplifies installation with well-structured terminal connections.
- Long Lifespan – Built with high-quality materials resistant to electrical wear and heat.
- Energy Efficient – Reduces power consumption while maintaining reliable performance.
- Versatile Compatibility – Supports 50/60Hz power networks, making it suitable for global applications.
- Enhanced Safety – Includes a 1NO auxiliary contact for additional circuit control flexibility.
Applications
The LC1E3810M7 contactor is widely used in various industrial and commercial applications, such as:
- Motor Control – Ideal for switching and controlling electric motors in industrial processes.
- Control Panels – Used in electrical control panels to manage operational start/stop functions.
- Lighting Systems – Suitable for switching high-power lighting circuits in commercial and industrial environments.
- Industrial Automation – Applied in automated systems for controlling different types of machinery.
- HVAC Systems – Used in heating, ventilation, and air conditioning systems for improved energy efficiency.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 38 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 38 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 50 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Motor power kW | 18.5 kW at 500 V 18.5 kW at 660...690 V 9 kW at 220...230 V AC 50/60 Hz 18.5 kW at 380...400 V 18.5 kW at 415 V 18.5 kW at 440 V |
|---|---|
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 50 A (at 55 °C) for power circuit |
| Irms rated making capacity | 380 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 304 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 60 A 40 °C - 600 s for power circuit 310 A 40 °C - 10 s for power circuit 150 A 40 °C - 60 s for power circuit |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 2.5 mOhm - Ith 50 A 50 Hz for power circuit |
| Power dissipation per pole | 2.9 W AC-3 5 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| overvoltage category | III |
| pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 8000000 cycles |
| Electrical durability | 350000 cycles AC-1 900000 cycles AC-3 |
| Control circuit type | AC at 50/60 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5…55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5…55 °C):drop-out 50/60 Hz |
| Inrush power in VA | 95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W for control circuit |
| Operating time | 12...22 ms on closing 4...19 ms on opening |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 2.1 N.m |
| Auxiliary contact composition | 1 NO |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| Mounting support | DIN rail Plate |
| Standards | IEC 60947-1 IEC 60947-5-1 IEC 60947-4-1 |
|---|---|
| Product certifications | EAC CE |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Permissible ambient air temperature around the device | -20…70 °C at Uc -60…80 °C storage -5…55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor closed (10 Gn for 11 ms) Shocks contactor open (6 Gn for 11 ms) |
| Height | 84 mm |
| Width | 56 mm |
| Depth | 86 mm |
| Product weight | 0.45 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.700 cm |
| Package 1 Width | 8.600 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 444.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 11.192 kg |
