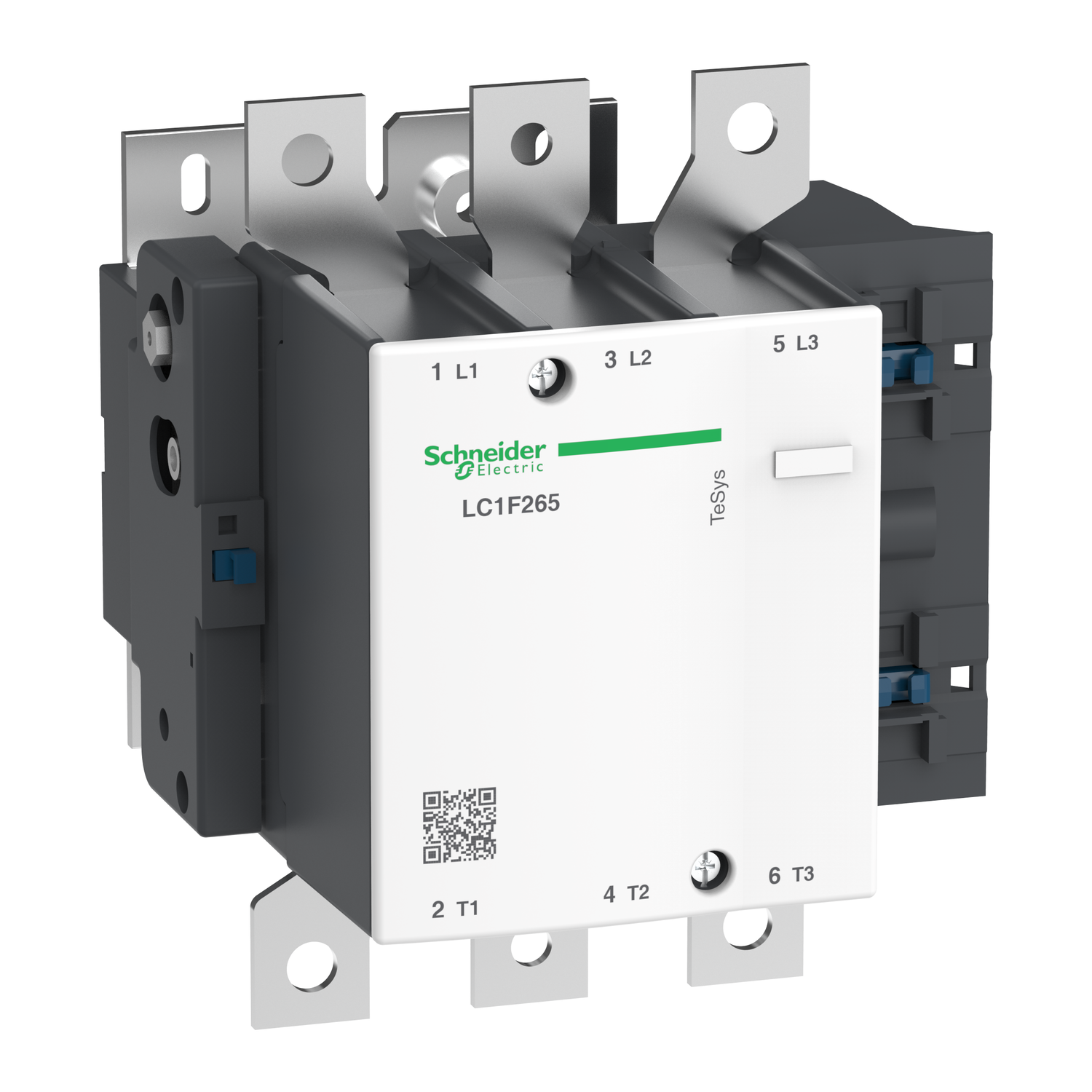

Schneider LC1F265M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 265 A – coil 220 V AC
EGP 98,268.00
Description
Schneider LC1F265M7| TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 265 A – coil 220 V AC
Schneider LC1F265M7 | TeSys F Contactor – 3P (3 NO) – AC-3 ≤ 440 V 265 A – Coil 220 V AC
General Overview:
The Schneider LC1F265M7 is a 3-pole power contactor from the robust TeSys F series, designed for high-power switching applications. With a 265 A rating under AC-3 category (typically for motor control), this contactor ensures dependable performance for demanding industrial environments.
Key Features:
-
Product Type: 3-pole contactor
-
Contact Configuration: 3 Normally Open (3 NO)
-
Utilization Category: AC-3 (motor control)
-
Operational Voltage: ≤ 440 V AC
-
Rated Operational Current: 265 A (AC-3 duty @ 440 V)
-
Control Circuit Voltage: 220 V AC coil
-
Mounting Type: Panel mounting
Technical Specifications:
-
Series: TeSys F
-
Conformity to Standards: IEC 60947-4-1, CE certified
-
Insulation Voltage: Up to 1000 V
-
Short-Circuit Protection: Via external devices (e.g. circuit breakers)
-
Mechanical Durability: Up to 5 million operations
-
Electrical Durability: High, designed for frequent switching
-
Ambient Temperature Range: -5°C to +60°C
Typical Applications:
-
Heavy-duty motor starters
-
Industrial machinery
-
Pumping and HVAC systems
-
Power distribution and control panels
-
Infrastructure and utility systems
Advantages:
-
Handles high operational currents (265 A) reliably
-
Part of the modular TeSys system for easy integration
-
Long lifespan in both mechanical and electrical operations
-
Compatible with various accessories and auxiliary devices
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys |
|---|---|
| range of product | TeSys F |
| Product or component typee | Contactor |
| Device short name | LC1F |
| contactor application | Motor control Resistive load |
| utilisation category | AC-4 AC-1 AC-3 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC-1 <= 690 V AC-3 <= 690 V AC-4 <= 460 V DC |
| [Uc] control circuit voltage | 220 V AC 40...400 Hz |
| [Ie] rated operational current | 350 A (at <40 °C) at <= 440 V AC AC-1 265 A (at <55 °C) at <= 440 V AC AC-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| [Ith] conventional free air thermal current | 350 A (at 40 °C) |
| Rated breaking capacity | 2120 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 2200 A 40 °C - 10 s 1230 A 40 °C - 30 s 950 A 40 °C - 1 min 620 A 40 °C - 3 min 480 A 40 °C - 10 min |
| Associated fuse rating | 315 A aM at <= 440 V 400 A gG at <= 440 V |
| Average impedance | 0.3 mOhm - Ith 350 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 37 W AC-1 21 W AC-3 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Motor power kW | 132 kW at 380...400 V AC 50/60 Hz (AC-3) 140 kW at 415 V AC 50/60 Hz (AC-3) 140 kW at 440 V AC 50/60 Hz (AC-3) 160 kW at 500 V AC 50/60 Hz (AC-3) 160 kW at 660...690 V AC 50/60 Hz (AC-3) 147 kW at 1000 V AC 50/60 Hz (AC-3) 75 kW at 220...230 V AC 50/60 Hz (AC-3) 51 kW at 400 V AC 50/60 Hz (AC-4) |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) Drop-out: 0.15...0.2 Uc 40...400 Hz (at 55 °C) |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 650 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 10 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Operating time | 40...65 ms closing 100...170 ms opening |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end Power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm Power circuit: lugs-ring terminals 1 cable(s) 240 mm² Power circuit: connector 1 cable(s) 240 mm² Power circuit: bolted connection |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 35 N.m |
| mounting support | Plate |
| Heat dissipation | 8 W |
| motor power range | 55…100 kW at 200…240 V 3 phases 110…220 kW at 480…500 V 3 phases 110…220 kW at 380…440 V 3 phases |
| Motor starter type | Direct on-line contactor |
| Contactor coil voltage | 220 V AC standard |
| Standards | JIS C8201-4-1 IEC 60947-4-1 EN 60947-1 IEC 60947-1 EN 60947-4-1 |
| product certifications | RINA RMRoS CSA CB UL BV ABS LROS (Lloyds register of shipping) DNV UKCA |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 IP20 front face with shrouds conforming to VDE 0106 |
|---|---|
| Protective treatment | TH |
| ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…70 °C |
| height | 203 mm |
| Width | 201.5 mm |
| Depth | 213 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 7.44 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.0 cm |
| Package 1 Width | 25.0 cm |
| Package 1 Length | 25.5 cm |
| Package 1 Weight | 7.95 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 80.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 104.116 kg |
| Warranty | 18 months |
|---|
