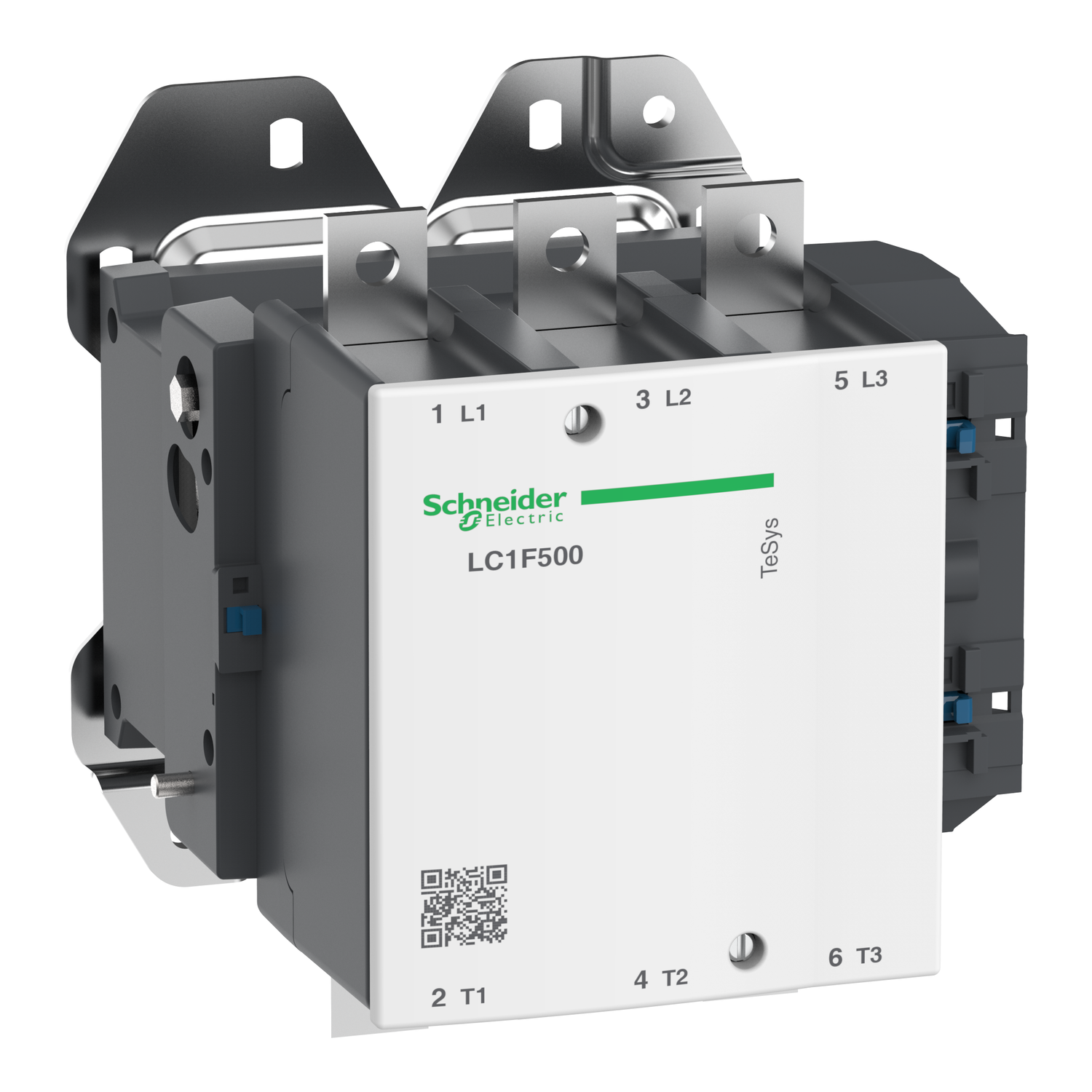

Schneider LC1F500M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 500 A – coil 220 V AC
Original price was: EGP 2,734,518.00.EGP 1,503,985.00Current price is: EGP 1,503,985.00.
Description
Schneider LC1F500M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 500 A – coil 220 V AC
Schneider LC1F500M7 | TeSys F Contactor – 3P (3 NO) – AC-3 ≤ 440 V 500 A – Coil 220 V AC
General Description:
The Schneider LC1F500M7 is a high-performance 3-pole contactor from the TeSys F range, built to manage high-power loads in industrial environments. With a rated operational current of 500 A at 440 V AC (AC-3 duty), it is suited for motor control and power switching in heavy-duty applications.
Main Features:
-
Contactor Type: 3-pole (3 Normally Open contacts)
-
Utilization Category: AC-3 (for squirrel cage motors)
-
Rated Operational Voltage: ≤ 440 V AC
-
Rated Current (AC-3 at 440 V): 500 A
-
Control Voltage (Coil): 220 V AC
-
Mounting: Panel mounting
-
Auxiliary Contacts: Optional (can be added based on application needs)
Technical Specifications:
-
Product Line: TeSys F
-
Conformity to Standards: IEC 60947-4-1
-
Rated Insulation Voltage (Ui): 1000 V
-
Rated Impulse Withstand Voltage (Uimp): 8 kV
-
Electrical Durability: Up to 250,000 cycles (depending on load)
-
Mechanical Durability: Up to 5 million operations
-
Ambient Operating Temperature: -5°C to +60°C
-
Protection Rating: IP20 (without enclosure; depends on installation)
Typical Applications:
-
High-power motors and machinery
-
Industrial HVAC systems
-
Water pumps and heavy-duty compressors
-
Conveyor systems
-
Electrical distribution and automation panels
Key Benefits:
-
Efficient and safe switching of high-current circuits
-
Durable build for extended service life
-
Easily integrable with Schneider’s TeSys accessories
-
Suitable for harsh industrial conditions
-
Reliable coil operation at standard 220 V AC
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys |
|---|---|
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| contactor application | Motor control Resistive load |
| utilisation category | AC-1 AC-4 AC-3 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Uc] control circuit voltage | 220 V AC 40...400 Hz |
| [Ie] rated operational current | 700 A (at <40 °C) at <= 440 V AC AC-1 500 A (at <55 °C) at <= 440 V AC AC-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| [Ith] conventional free air thermal current | 700 A (at 40 °C) |
| Rated breaking capacity | 4000 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 4200 A 40 °C - 10 s 3200 A 40 °C - 30 s 2400 A 40 °C - 1 min 1500 A 40 °C - 3 min 1200 A 40 °C - 10 min |
| Associated fuse rating | 500 A aM at <= 440 V 800 A gG at <= 440 V |
| Average impedance | 0.18 mOhm - Ith 700 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 88 W AC-1 45 W AC-3 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Motor power kW | 250 kW at 380...400 V AC 50/60 Hz (AC-3) 280 kW at 415 V AC 50/60 Hz (AC-3) 295 kW at 440 V AC 50/60 Hz (AC-3) 355 kW at 500 V AC 50/60 Hz (AC-3) 335 kW at 660...690 V AC 50/60 Hz (AC-3) 335 kW at 1000 V AC 50/60 Hz (AC-3) 147 kW at 220...230 V AC 50/60 Hz (AC-3) 80 kW at 400 V AC 50/60 Hz (AC-4) |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 1100 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 18 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Operating time | 40...65 ms closing 100...170 ms opening |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end Power circuit: bar 2 cable(s) - busbar cross section: 40 x 5 mm Power circuit: lugs-ring terminals 2 cable(s) 240 mm² Power circuit: bolted connection |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 35 N.m |
| mounting support | Plate |
| Heat dissipation | 18 W |
| motor power range | 250…500 kW at 380…440 V 3 phases 110…220 kW at 380…440 V 3 phases 110…220 kW at 200…240 V 3 phases 250…500 kW at 480…500 V 3 phases |
| Motor starter type | Direct on-line contactor |
| Contactor coil voltage | 220 V AC standard |
| Standards | EN 60947-4-1 IEC 60947-1 EN 60947-1 JIS C8201-4-1 IEC 60947-4-1 |
| product certifications | CSA CB RMRoS ABS LROS (Lloyds register of shipping) UL RINA BV DNV UKCA |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 IP20 front face with shrouds conforming to VDE 0106 |
|---|---|
| Protective treatment | TH |
| ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…70 °C |
| height | 238 mm |
| Width | 233 mm |
| Depth | 232 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 11.35 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.5 cm |
| Package 1 Width | 30.0 cm |
| Package 1 Length | 30.0 cm |
| Package 1 Weight | 11.612 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 80.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 101.412 kg |
| Warranty | 18 months |
|---|
