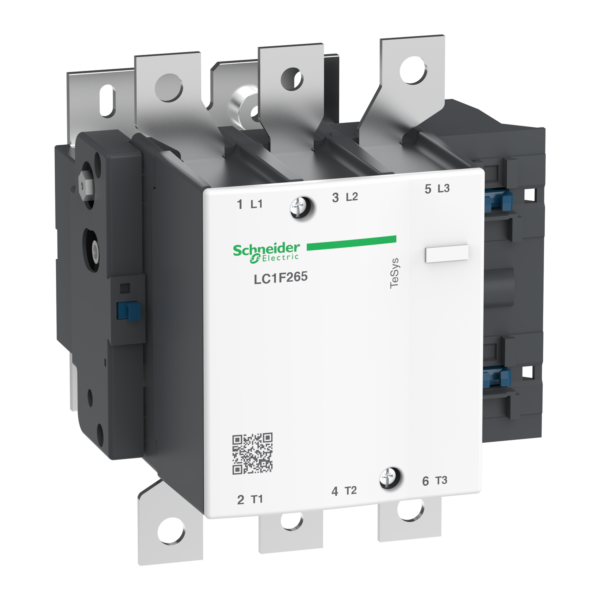

Schneider LC1F630M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 630 A – coil 220 V AC
Original price was: EGP 3,657,918.00.EGP 2,011,855.00Current price is: EGP 2,011,855.00.
Description

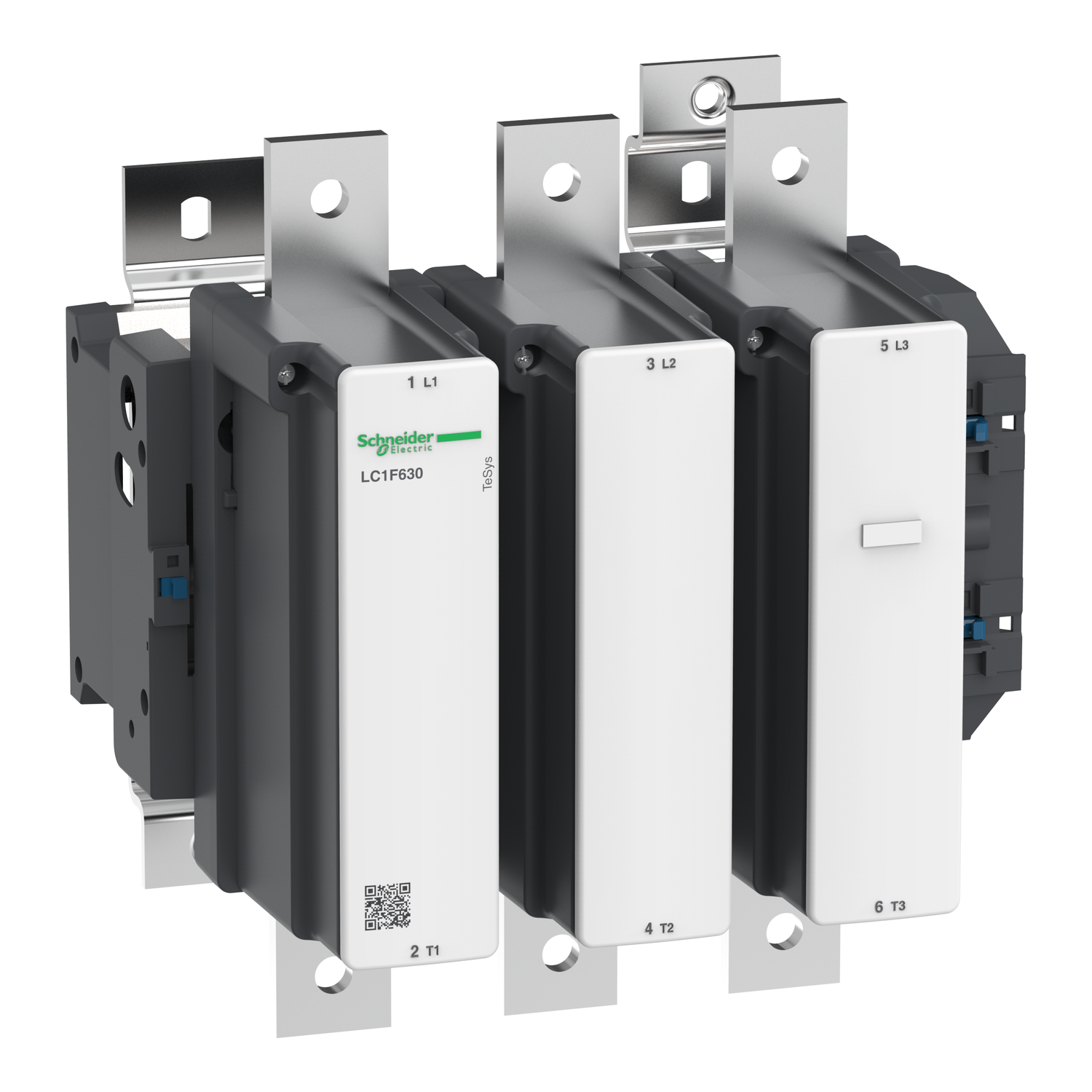

Schneider LC1F630M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 630 A – coil 220 V AC
Schneider LC1F630M7 | TeSys F Contactor – 3P (3 NO) – AC-3 ≤ 440 V 630 A – Coil 220 V AC
General Description:
The Schneider LC1F630M7 is a robust and reliable 3-pole contactor from the TeSys F series, designed for switching and controlling high-power electrical loads. With a high operational current of 630 A at 440 V AC (AC-3 category), it is ideal for demanding industrial applications such as motor control, power distribution, and automation.
Main Features:
-
Contactor Configuration: 3-pole (3 Normally Open contacts)
-
Utilization Category: AC-3 (for switching squirrel cage motors)
-
Rated Operational Voltage: ≤ 440 V AC
-
Rated Current (AC-3 at 440 V): 630 A
-
Control Coil Voltage: 220 V AC
-
Mounting Type: Panel mounting
-
Auxiliary Contacts: Optional auxiliary blocks can be added
Technical Specifications:
-
Product Family: TeSys F
-
Standard Compliance: IEC 60947-4-1
-
Rated Insulation Voltage (Ui): 1000 V
-
Impulse Withstand Voltage (Uimp): 8 kV
-
Electrical Durability: Up to 250,000 cycles
-
Mechanical Durability: Up to 5 million cycles
-
Operating Temperature Range: -5°C to +60°C
-
Degree of Protection: IP20 (without enclosure)
Typical Applications:
-
Large industrial motors
-
Pumping systems
-
Conveyor belts
-
HVAC and refrigeration systems
-
Electrical control panels and switchboards
Key Advantages:
-
Handles very high current loads with ease
-
High mechanical and electrical endurance
-
Integrates seamlessly with Schneider’s TeSys protection and control systems
-
Compact for its capacity, helping with space optimization
-
Designed for reliability in intensive-duty environments
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys |
|---|---|
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| contactor application | Resistive load Motor control |
| utilisation category | AC-3 AC-1 AC-4 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Uc] control circuit voltage | 220 V AC 40...400 Hz |
| [Ie] rated operational current | 1000 A (at <40 °C) at <= 440 V AC AC-1 630 A (at <55 °C) at <= 440 V AC AC-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| [Ith] conventional free air thermal current | 1000 A (at 40 °C) 1250 A |
| Rated breaking capacity | 5040 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 5050 A 40 °C - 10 s 4400 A 40 °C - 30 s 3400 A 40 °C - 1 min 2200 A 40 °C - 3 min 1600 A 40 °C - 10 min |
| Associated fuse rating | 1000 A gG at <= 440 V 630 A aM at <= 440 V |
| Average impedance | 0.12 mOhm - Ith 1000 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 120 W AC-1 48 W AC-3 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Motor power kW | 335 kW at 380...400 V AC 50/60 Hz (AC-3) 375 kW at 415 V AC 50/60 Hz (AC-3) 400 kW at 440 V AC 50/60 Hz (AC-3) 400 kW at 500 V AC 50/60 Hz (AC-3) 450 kW at 660...690 V AC 50/60 Hz (AC-3) 450 kW at 1000 V AC 50/60 Hz (AC-3) 200 kW at 220...230 V AC 50/60 Hz (AC-3) 100 kW at 400 V AC 50/60 Hz (AC-4) |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) Drop-out: 0.25...0.5 Uc 40...400 Hz (at 55 °C) |
| Mechanical durability | 5 Mcycles |
| Inrush power in VA | 1650 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 22 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 1200 cyc/h 55 °C |
| Operating time | 40...80 ms closing 100...200 ms opening |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end Power circuit: bar 2 cable(s) - busbar cross section: 60 x 5 mm Power circuit: bolted connection |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 58 N.m |
| mounting support | Plate |
| Heat dissipation | 20 W |
| motor power range | 250…500 kW at 380…440 V 3 phases 110…220 kW at 200…240 V 3 phases 250…500 kW at 480…500 V 3 phases |
| Motor starter type | Direct on-line contactor |
| Contactor coil voltage | 220 V AC standard |
| Standards | EN 60947-1 IEC 60947-4-1 JIS C8201-4-1 IEC 60947-1 EN 60947-4-1 |
| product certifications | LROS (Lloyds register of shipping) CB UL RMRoS CSA ABS BV DNV RINA UKCA |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 IP20 front face with shrouds conforming to VDE 0106 |
|---|---|
| Protective treatment | TH |
| ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…70 °C |
| height | 304 mm |
| Width | 309 mm |
| Depth | 255 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 18.6 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 29.46 cm |
| Package 1 Width | 36.83 cm |
| Package 1 Length | 46.99 cm |
| Package 1 Weight | 18.78 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 80 cm |
| Package 2 Width | 80 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 82.232 kg |
| Warranty | 18 months |
|---|
