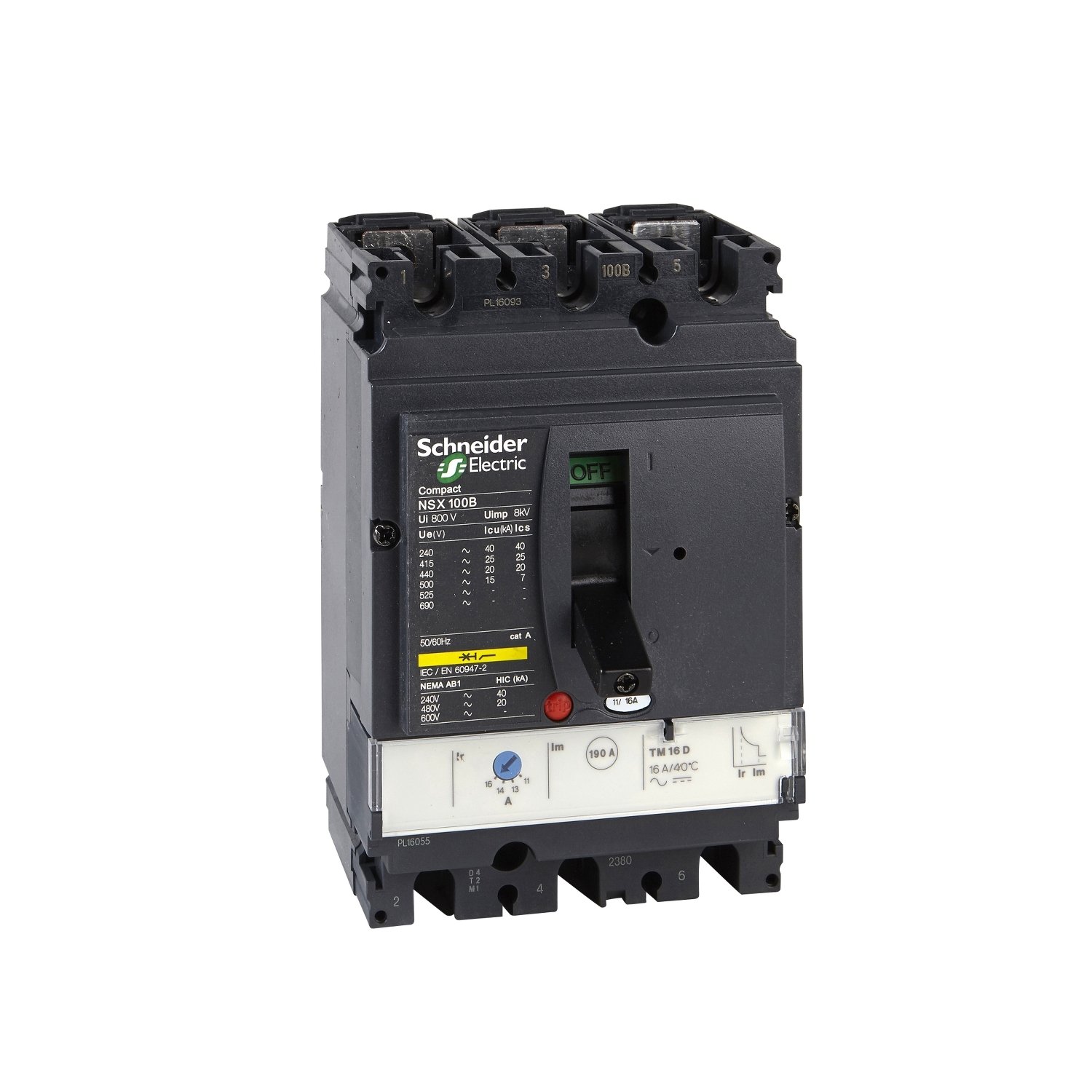

Schneider LV429842 | circuit breaker ComPact NSX100N, 50 kA at 415 VAC, TMD trip unit 63 A, 3 poles 3d
Schneider LV429842 | circuit breaker ComPact NSX100N, 50 kA at 415 VAC, TMD trip unit 63 A, 3 poles 3d
Original price was: EGP 2,178,909.00.EGP 1,394,502.00Current price is: EGP 1,394,502.00.
Description
Schneider LV429842 | circuit breaker ComPact NSX100N, 50 kA at 415 VAC, TMD trip unit 63 A, 3 poles 3d
Technical Specifications:
-
Type: Circuit Breaker
-
Model: Schneider LV429842 | ComPact NSX100N
-
Nominal Current: 63 Amps
-
Maximum Breaking Capacity: 50 kA at 415 VAC
-
Number of Poles: 3 Poles
-
Trip Unit: TMD (Thermal Magnetic Release)
-
Short-Circuit Protection: Designed to protect against short circuits, reducing the risk of damage and system failures.
Features:
-
Reliable Protection:
The circuit breaker provides comprehensive protection against overloads and short circuits, minimizing the risk of electrical faults and damage to equipment. -
Flexibility:
The TMD trip unit is adjustable, allowing it to be tailored to meet specific operational requirements, offering ease of adaptation to real-world electrical conditions. -
Advanced Technology:
Incorporates advanced technology to enhance performance and reduce sudden current spikes, helping to prevent electrical faults. -
High Short-Circuit Withstand Capacity:
With a maximum breaking capacity of 50 kA, the circuit breaker is ideal for industrial and commercial applications that require high protection against short circuit currents. -
Ease of Maintenance and Installation:
The breaker is designed for easy installation and maintenance, reducing operational costs and improving electrical system efficiency.
Applications:
-
Industrial Applications:
Used for protecting heavy electrical equipment such as motors and large industrial systems, where high protection against overloads and short circuits is essential. -
Electrical Distribution Systems:
Installed in distribution boards within commercial and industrial buildings to provide continuous protection for all connected electrical systems. -
Motor Control Systems:
Provides protection for motor groups in industries requiring high electrical currents, ensuring safe operation of machinery and equipment. -
Solar Power Systems:
Can be used to protect electrical circuits in solar power installations from unwanted electrical faults. -
High-Rise Buildings and Large Residential Complexes:
Protects electrical networks in high-rise buildings and large residential complexes, ensuring safety for all users by preventing electrical failures.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | ComPact |
|---|---|
| Product name | ComPact NSX |
| Range of product | ComPact NSX100...250 |
| Device short name | NSX100N |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Number of poles | 3P |
| Protected poles description | 3t |
| [In] rated current | 63 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 85 kA at 240 V AC 50/60 Hz conforming to UL 508 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 20 kA at 600 V AC 50/60 Hz conforming to UL 508 50 kA at 480 V AC 50/60 Hz conforming to UL 508 36 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 90 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | N 50 kA 415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 36 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 90 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 50000 cycles |
| Electrical durability | 10000 cycles at 690 V In 20000 cycles at 690 V In/2 30000 cycles at 440 V In 50000 cycles at 440 V In/2 |
| Mounting support | Backplate |
| Upside connection | Front |
| downside connection | Front |
| Connection pitch | 35 mm |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 63 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 120…400 s at 1.5 x In 15 s at 6 x Ir |
| Short-time protection pick-up adjustment type Isd | Fixed |
| [Isd] Short-time protection pick-up adjustment range | 500 A |
| Short-time protection delay adjustment type tsd | Fixed |
| Earth-leakage protection | Without |
| Number of slots for electrical auxiliaries | 5 slot(s) |
| Width (W) | 105 mm |
| Height (H) | 161 mm |
| Depth (D) | 86 mm |
| Net weight | 2.05 kg |
| Standards | EN/IEC 60947 |
|---|---|
| Product certifications | CCC EAC Marine |
| Overvoltage category | Class II |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating 2000 m...5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.4 cm |
| Package 1 Width | 11.6 cm |
| Package 1 Length | 19.2 cm |
| Package 1 Weight | 1.779 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 22.114 kg |
| Warranty | 18 months |
|---|
