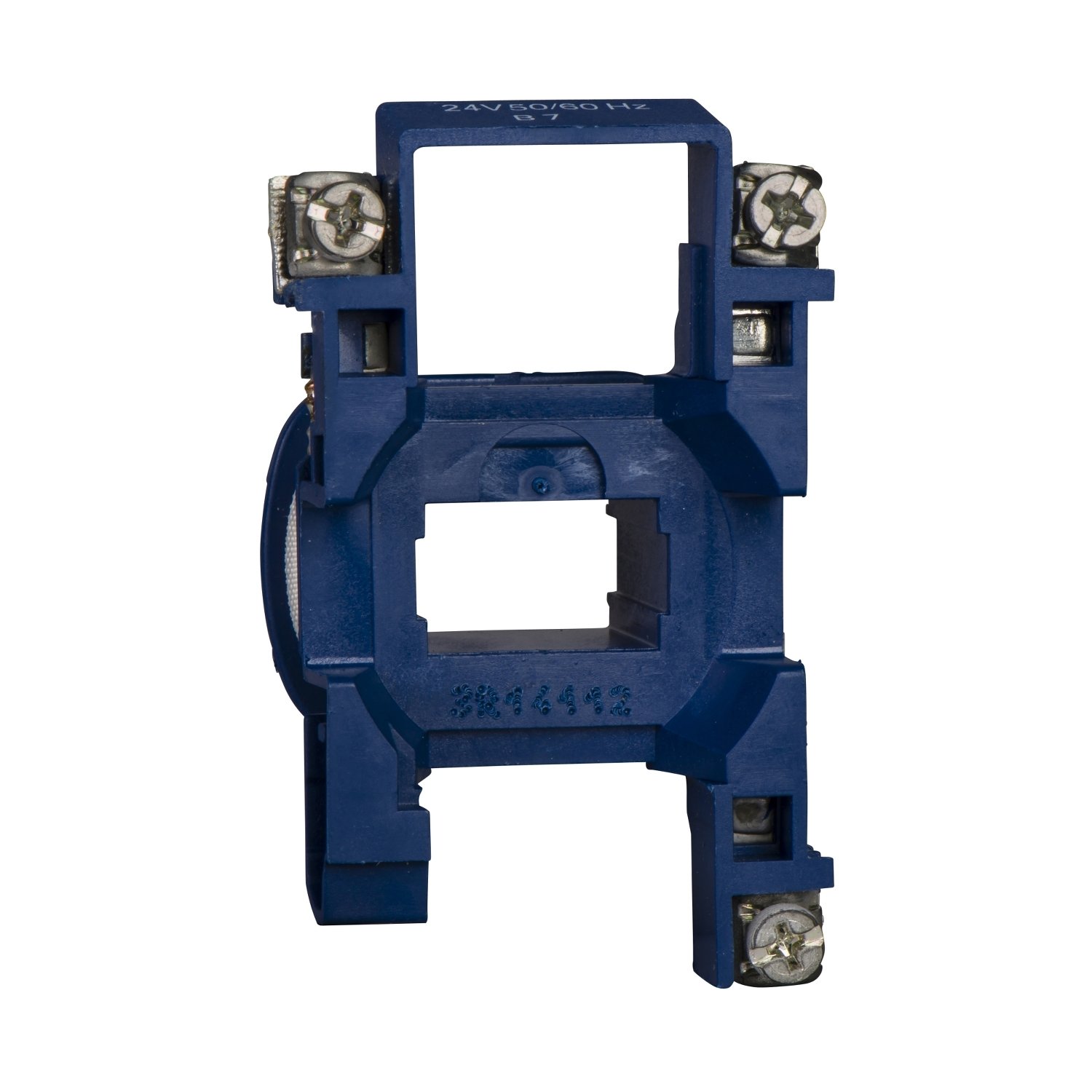

Schneider LX1D2M7 | TeSys Deca – contactor coil – LX1D2 – 220…230 V AC 50/60 Hz for 9 to 18 A contact

Technical Specifications:

• Model: Schneider LX1D2M7 | TeSys Deca Contactor Coil

• Voltage Rating: 220…230 V AC

• Frequency Range: 50/60 Hz

• Coil Type: Contactor Coil for TeSys Deca Contactors

• Current Rating: Suitable for contactors with a current range of 9 to 18 A.

• Coil Power Supply: AC voltage for energizing the coil

Features:

1. Reliable Operation:
   The TeSys Deca contactor coil is engineered for dependable and consistent operation, offering reliable energizing and de-energizing cycles for contactors in a variety of industrial environments.

2. Wide Voltage Range:
   The 220…230 V AC voltage rating makes it suitable for use in standard AC power systems. It operates at both 50 Hz and 60 Hz frequencies, making it adaptable to global standards.

3. Compatibility with TeSys Deca Contactors:
   The LX1D2M7 coil is specifically designed for use with the TeSys Deca series contactors, which are widely used for controlling motors, lighting, and other electrical loads. The coil ensures optimal performance when used with contactors rated for 9 to 18 A.

4. Compact Design:
   The coil is designed to fit seamlessly into the TeSys Deca contactor range, which is known for its compact and space-saving design, ensuring easy installation and integration into control systems.

5. Durability:
   Built with high-quality materials, the LX1D2M7 coil is designed to withstand the rigors of industrial environments, ensuring long-lasting and reliable service even under heavy-duty conditions.

Applications:

• Motor Control:
  The LX1D2M7 coil is commonly used in motor control applications, where it is integrated into TeSys Deca contactors to control the switching of motors in various industrial machinery.

• Lighting Control Systems:
  It can be used in lighting control systems to control the operation of lighting circuits, providing efficient and reliable switching of lights in industrial and commercial environments.

• HVAC Systems:
  In heating, ventilation, and air conditioning (HVAC) systems, this coil ensures the reliable operation of contactors that control the various components of these systems.

• Industrial Automation:
  The coil plays a key role in industrial automation systems, providing control over the switching of electrical loads and machinery, ensuring smooth operations.

• Electromechanical Control:
  Used in electromechanical control circuits for automation and electrical distribution systems, where precise and dependable switching of circuits is required.
