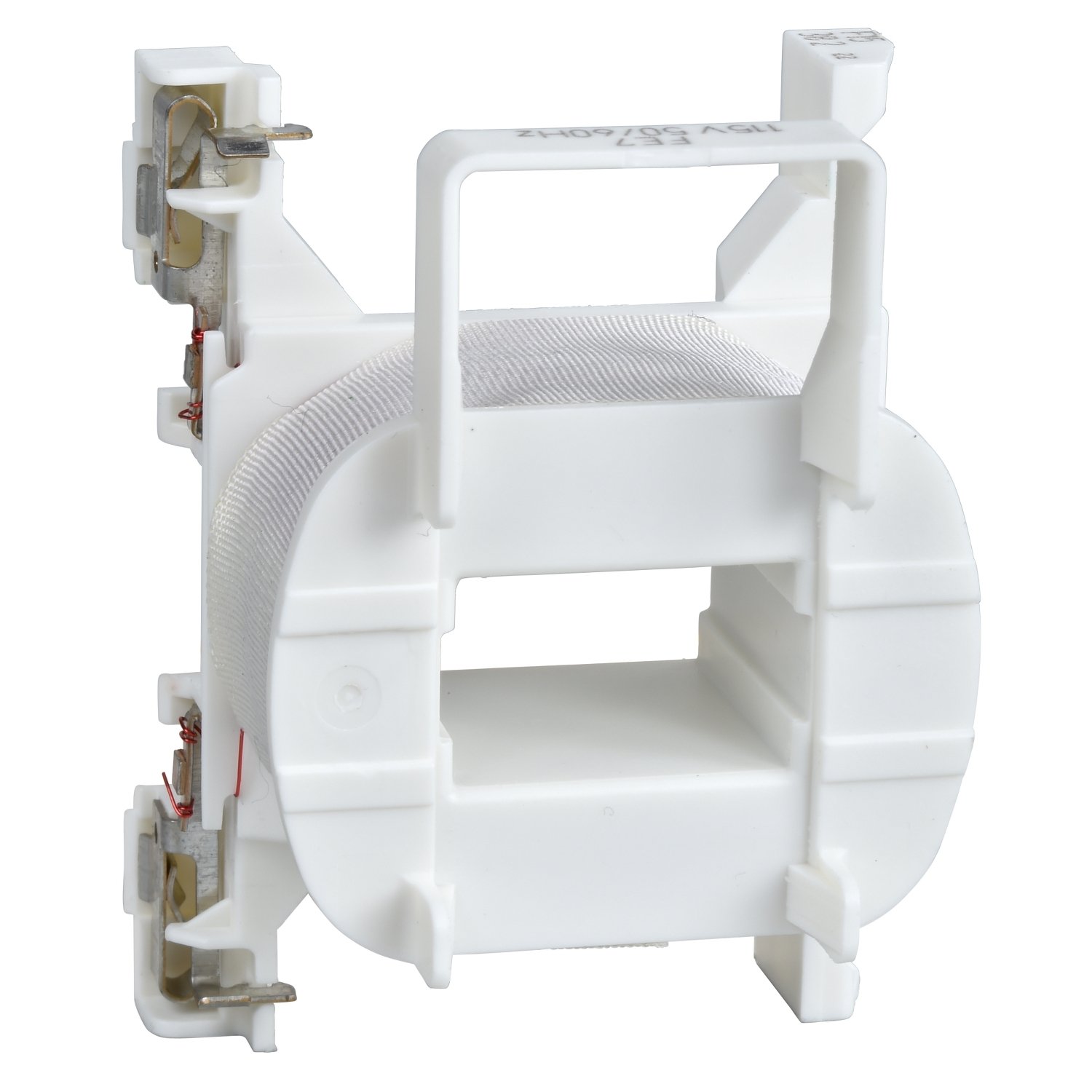

Schneider LXD1Q7 | TeSys D – contactor coil – LXD1 – 380 V AC 50/60 Hz for 9… 38 A contactor
Schneider LXD1Q7 | TeSys D – contactor coil – LXD1 – 380 V AC 50/60 Hz for 9… 38 A contactor
Original price was: EGP 11,514.00.EGP 6,218.00Current price is: EGP 6,218.00.
Description
Schneider LXD1Q7 | TeSys D – contactor coil – LXD1 – 380 V AC 50/60 Hz for 9… 38 A contactor
1. Technical Specifications
- Model: Schneider LXD1Q7
- Product Type: Contactor Coil
- Series: TeSys D
- Voltage Rating: 380V AC
- Frequency: 50/60Hz
- Compatible Contactor Rating: 9 to 38A
- Coil Type: Standard coil for controlling contactor activation
- Operating Power Supply: 380V AC
- Contact Configuration: Used in conjunction with TeSys D contactors
- Mounting: Fits directly with compatible TeSys D contactors
- Application: Industrial and commercial electrical switching systems
2. Key Features
A. Wide Voltage Range
- The LXD1Q7 coil operates at 380V AC, making it suitable for a wide variety of industrial applications that require a stable and reliable power supply.
B. Designed for TeSys D Contactors
- Specifically designed for use with TeSys D contactors, it ensures optimal performance and seamless integration with contactors in the 9 to 38A current range.
C. Frequency Compatibility
- Operates efficiently at 50/60Hz frequency, making it adaptable to global standards for electrical systems in different regions.
D. Reliable Control of Electrical Circuits
- The coil is used to energize and de-energize the contactor, enabling precise control of electrical circuits, switching devices on and off as needed.
E. Long-Lasting Durability
- The TeSys D series is known for its durability and long lifespan, ensuring that the LXD1Q7 coil will function reliably over time with minimal maintenance.
3. Applications and Uses
The Schneider LXD1Q7 contactor coil is suitable for a range of applications where reliable electrical switching is essential:
A. Industrial Machinery Control
- Used in machinery control panels to manage the activation of motors, equipment, and other electrical loads.
B. Power Distribution Systems
- Essential in distribution panels for controlling large electrical systems in factories and industrial environments.
C. Automation Systems
- Used in automated control systems to switch contactors for automated processes, such as controlling lighting, HVAC systems, and heavy machinery.
D. HVAC and Lighting Control
- Applied in HVAC systems for switching compressors, fans, and pumps, as well as in lighting control systems for large commercial buildings.
-
4. Key Benefits of Schneider LXD1Q7
High reliability for controlling TeSys D contactors in industrial systems
380V AC operation suitable for diverse electrical environments
Compatible with TeSys D contactors for smooth integration and performance
Durable and long-lasting under demanding conditions
Efficient power control for machines, HVAC systems, and lighting
Meets international standards for industrial automation and control systems
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys |
|---|---|
| Product or component type | Contactor coil |
| Device short name | LXD1 |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 380 V AC 50/60 Hz |
| Average resistance | 1551 Ohm at 20 °C |
| Inductance of closed circuit | 55 H |
| Product compatibility | LC1DT20...DT40 CAD LC1D09...D38 |
| Mechanical durability | 15 Mcycles |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Coil technology | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C) |
| Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 20 °C) 70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 20 °C) 7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W at 50/60 Hz |
| Ambient air temperature for operation | -5…60 °C |
|---|---|
| Product weight | 0.07 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 6.300 cm |
| Package 1 Length | 4.000 cm |
| Package 1 Weight | 65.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.233 kg |
| Warranty | 18 months |
|---|
