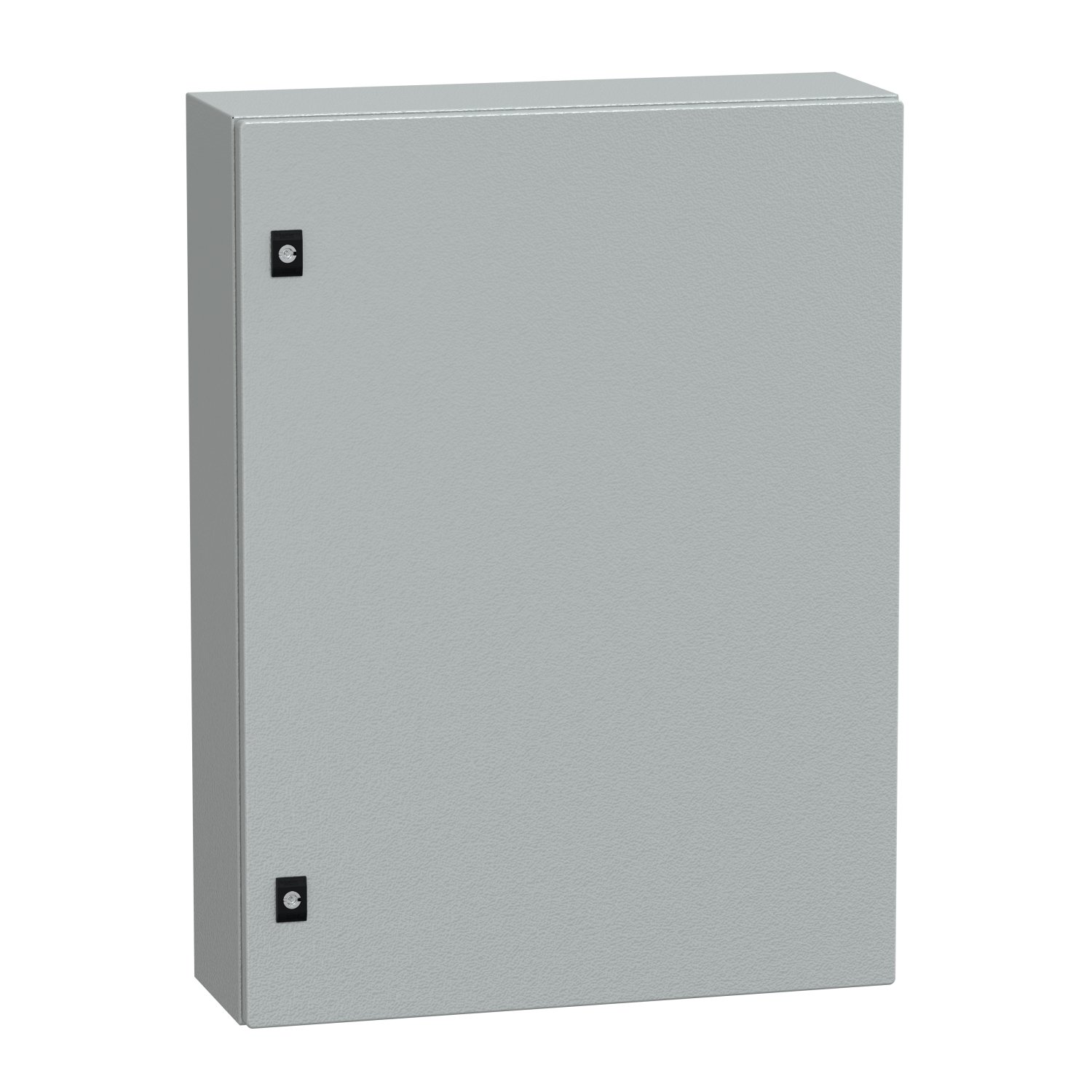

Schneider NSYCRN86200 | Spacial CRN plain door w/o mount.plate. H800xW600xD200 IP66 IK10 RAL7035..

Technical Specifications

The NSYCRN86200 enclosure comes with a set of advanced technical specifications that make it a top choice for various applications:

• Dimensions:
  • Height: 800 mm
  • Width: 600 mm
  • Depth: 200 mm
• Material: Galvanized steel with a protective coating
• Color: Industrial grey (RAL7035)
• Protection Rating:
  • IP66 – Fully resistant to dust and water, suitable for harsh environments
  • IK10 – High impact resistance, ensuring maximum protection for internal components
• Door Type: Plain door without mounting plate
• Application: Suitable for both indoor and outdoor use

Key Features

The Schneider Spacial CRN NSYCRN86200 is packed with features that make it an excellent choice for different industrial and commercial applications:

1. Superior Protection

• IP66-rated enclosure ensures complete protection against dust and powerful water jets, making it suitable for extreme conditions.
• IK10 impact resistance guarantees excellent protection from mechanical shocks, ensuring internal components remain safe.

2. Robust and High-Quality Design

• Constructed from galvanized steel with a corrosion-resistant coating for maximum durability.
• Industrial-grade paint (RAL7035) enhances the enclosure’s appearance while providing additional protection against environmental factors.

3. Easy Installation and Maintenance

• Designed for quick and simple installation in various industrial and commercial settings.
• Supports additional accessories such as ventilation systems and cable management solutions for enhanced functionality.

4. Versatile Usage

• Suitable for both indoor and outdoor environments, making it a flexible solution for various industries.
• Compatible with a wide range of electrical and electronic devices.

Applications

The Schneider Spacial CRN NSYCRN86200 enclosure is used in multiple industries where electrical and electronic equipment requires protection, including:

1. Electrical Distribution Panels

• Essential for safe and organized power distribution in factories and commercial buildings.

2. Industrial Control and Automation Systems

• Provides protection for electronic control systems such as Programmable Logic Controllers (PLCs) and electrical switches.

3. Infrastructure and Utility Applications

• Used in power stations, public utilities, and infrastructure projects to safeguard sensitive electronic equipment.

4. Harsh Environment Protection

• Ideal for industries exposed to extreme conditions, such as chemical plants, water treatment facilities, and mining sites.
