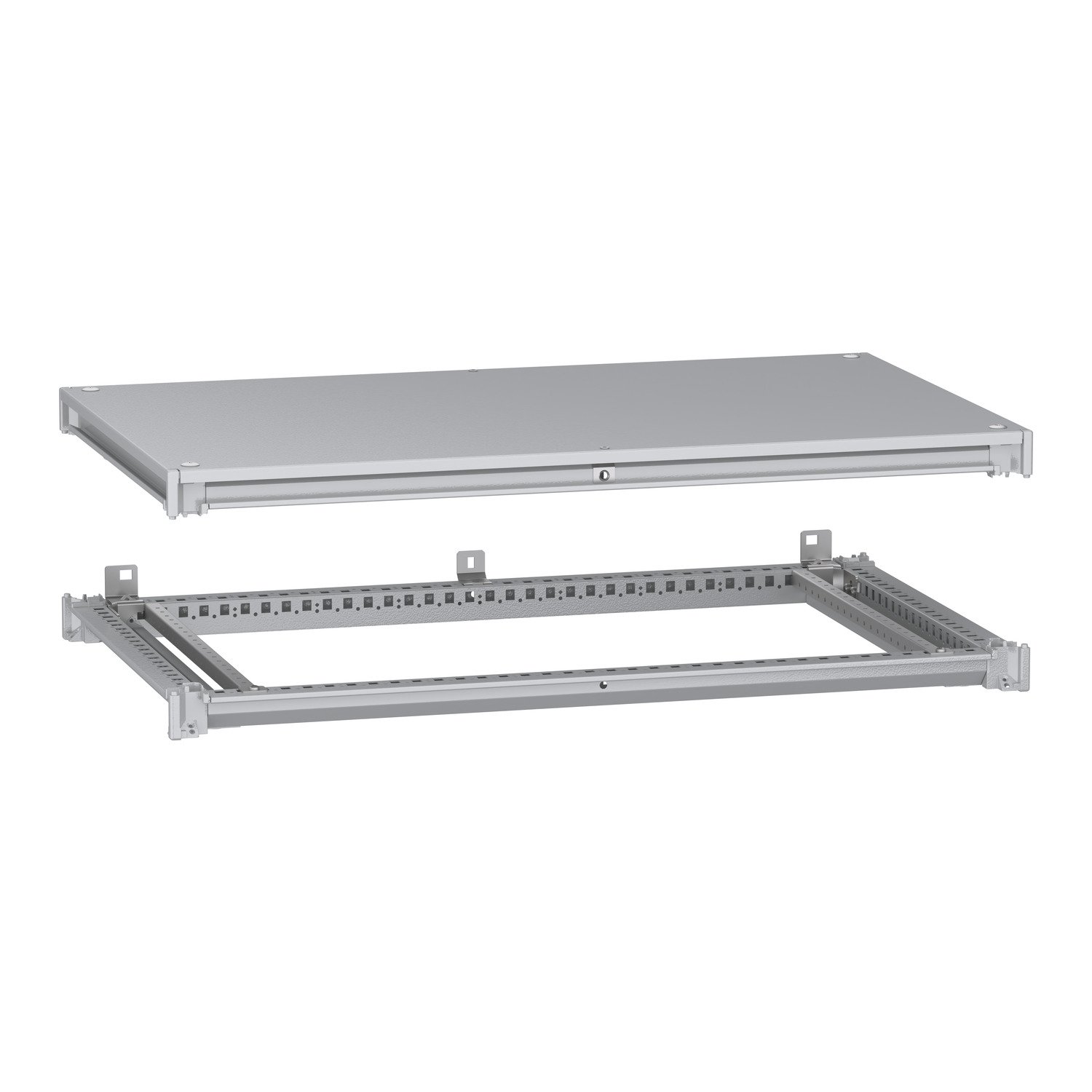

Schneider NSYSFNC106 | “Bottom and top frame, PanelSeT SFN, for electrical enclosure W1000 D600mm, roof included”
Schneider NSYSFNC106 | “Bottom and top frame, PanelSeT SFN, for electrical enclosure W1000 D600mm, roof included”
Original price was: EGP 3,823,275.00.EGP 2,638,060.00Current price is: EGP 2,638,060.00.
Description
Schneider NSYSFNC106 | “Bottom and top frame, PanelSeT SFN, for electrical enclosure W1000 D600mm, roof included”
Technical Specifications
- Model: Schneider NSYSFNC106
- Product Type: Bottom and Top Frame
- Compatible Enclosure Series: PanelSeT SFN
- Dimensions:
- Width: 1000mm
- Depth: 600mm
- Includes: Roof included in the frame structure
- Material: High-strength, durable metal construction
- Application: Electrical enclosures, control cabinets, power distribution systems
Key Features
- Complete Structural Support
- Designed to provide a secure foundation for the PanelSeT SFN enclosure.
- Bottom and top frame with an integrated roof ensures stability and protection for the internal components.
- Durable and Robust Design
- Made from high-quality metal, offering long-lasting durability and strength.
- Corrosion-resistant finish enhances the frame’s longevity in harsh environments.
- Optimized for Electrical Enclosures
- Provides the ideal structural base and top support for electrical enclosures and control cabinets.
- Designed to meet the safety and performance standards required in electrical systems.
- Easy Installation
- Simple to mount, ensuring quick assembly of the enclosure.
- Compatible with PanelSeT SFN enclosures, ensuring seamless integration.
Applications
The Schneider NSYSFNC106 bottom and top frame is suited for a wide range of applications, including:
Industrial Control Panels – Providing a solid base and top for housing electrical components.
Power Distribution Systems – Used as part of electrical enclosures to safely manage electrical circuits.
Commercial Buildings – Enclosures for electrical control and protection systems.
Infrastructure Projects – Protecting electrical equipment used in utilities, transportation, and other public infrastructure.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Enclosure accessory |
| Application | Multi-purpose |
| Product or component type | Framework kit |
| For enclosure nominal dimensions | - W: 1000 mm D: 600 mm |
| Mounting location | Top of vertical uprights Bottom of vertical uprights |
| Range compatibility | PanelSeT PanelSeT SFN |
| Device composition | 1 bottom frame 1 roof 1 top frame |
| Quantity per set | Set of 1 |
| Material | Steel |
|---|---|
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws - each corner of enclosure location |
| Height | 110 mm |
| Width | 1000 mm |
| Depth | 600 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.000 cm |
| Package 1 Width | 62.000 cm |
| Package 1 Length | 101.000 cm |
| Package 1 Weight | 21.500 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 125.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 187.000 kg |
| Warranty | 18 months |
|---|
