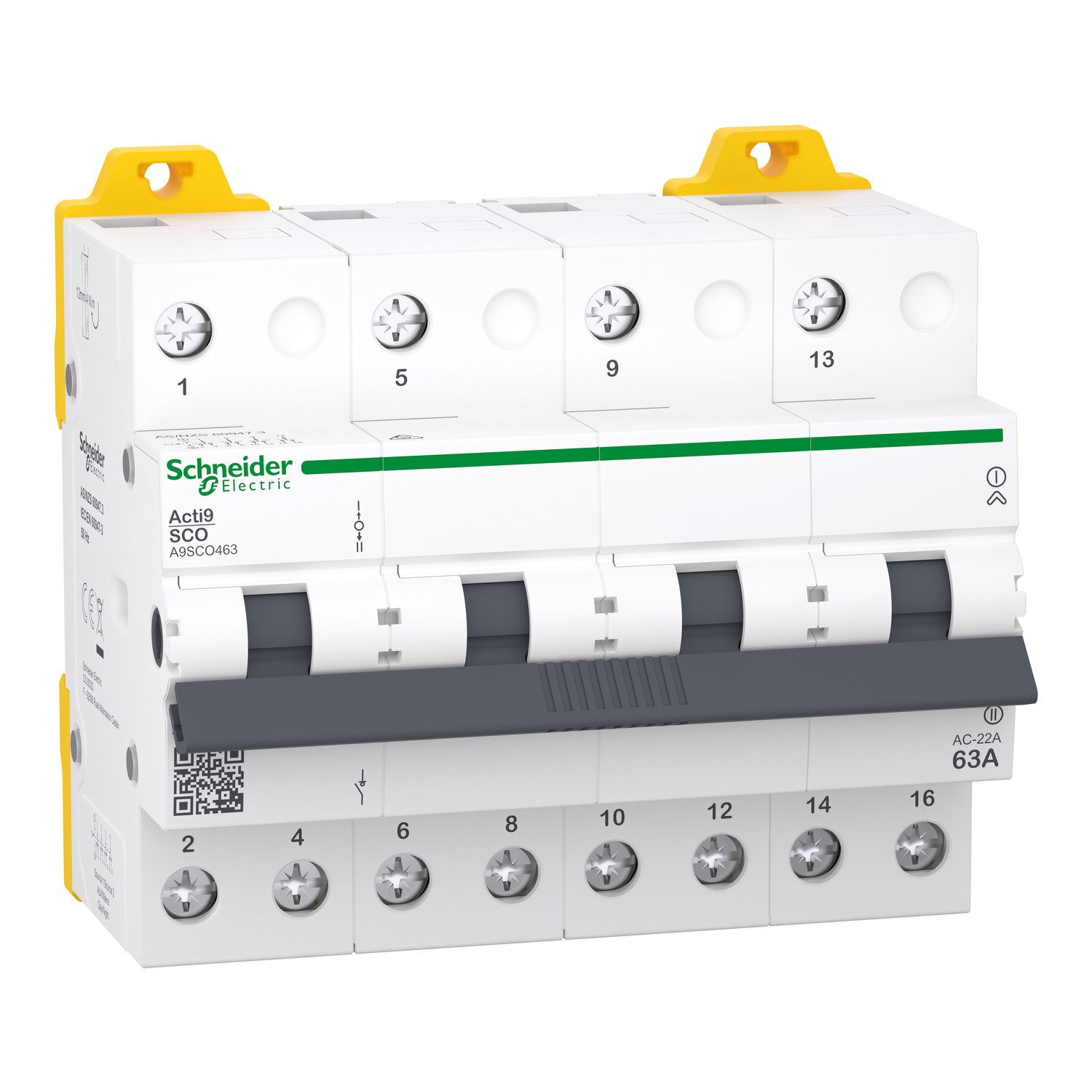

Schneider R9SCO463 | Changeover switch, Acti9, 4P, 63A, 400/415VAC
Schneider R9SCO463 | Changeover switch, Acti9, 4P, 63A, 400/415VAC.
Developed and meticulously tested for long life
Possibility to add a padlock to prevent unauthorized access
True position indication of the contacts inside by the knob
Perfect solution for low voltage distribution systems needing a continuous power supply
Original price was: EGP 53,512.00.EGP 37,191.00Current price is: EGP 37,191.00.
Description
Schneider R9SCO463 | Changeover switch, Acti9, 4P, 63A, 400/415VAC
Key Specifications
-
Rated Current (In): 63 Amps
-
Rated Voltage (Un): 400/415 V AC
-
Number of Poles: 4 (three-phase + neutral)
-
Device Type: Changeover Switch
-
Protection Rating: IP20 (Protection against solid objects larger than 12.5 mm)
-
Frequency: 50/60 Hz
-
Electrical Endurance: 6 kA
-
Mechanical Endurance: 10,000 operating cycles
-
Dimensions:
-
Width: 85 mm
-
Height: 105 mm
-
Depth: 44 mm
-
-
Weight: Approximately 448 grams
Features and Benefits
-
Reliable Power Source Switching: Provides safe manual switching between two power sources, ensuring uninterrupted power supply and minimizing downtime in critical systems.
-
Compact and Easy Installation: The switch is designed to be compact, allowing for easy installation on a DIN rail within electrical panels, saving space and simplifying setup.
-
Position Indicator: The switch features a position indicator that shows the current switching state, helping operators verify the status of the switch easily.
-
Locking Option: The switch allows for a locking mechanism to prevent unauthorized operation, enhancing safety during maintenance or operation.
-
High Durability: Built to withstand intensive use, the switch offers a long operational life with up to 10,000 mechanical cycles.
Applications and Uses
-
Industrial and Commercial Facilities: Ensures reliable power switching between different sources, ideal for factories, offices, and commercial buildings.
-
Residential and Commercial Buildings: Provides a safe and effective means of switching between power sources, guaranteeing continuous energy supply to critical equipment.
-
Renewable Energy Systems: Used in managing power transitions between the grid and renewable energy sources, such as solar panels, for optimized energy management.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Acti9 |
|---|---|
| Product name | Acti9 iSSW |
| Product or component type | Changeover switch |
| Device short name | iSSW |
| Device application | Change source of supply |
| poles description | 4P |
| Contacts type and composition | 4 C/O |
| [Ie] rated operational current | 63 A |
| [Ue] rated operational voltage | 400/415 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Utilisation category | AC-23A AC-22A |
| [Ui] rated insulation voltage | 690 V |
|---|---|
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Icm] peak rated short-circuit making capacity | 1.26 kA |
| [Icw] rated short-time withstand current | 1.26 kA during 1 s at 400/415 V |
| Rated operational power in W | 23.4 kW at 415 V (AC-23A) 22.5 kW at 400 V (AC-23A) 36.2 kW at 415 V (AC-22A) 35 kW at 400 V (AC-22A) |
| Control type | Toggle 3 positions |
| Mounting support | 35 mm DIN rail |
| Mounting position | Vertical Any position |
| Locking options description | Padlock in ON position |
| Connections - terminals | Screw terminals (top and bottom) 1…16 mm² flexible Screw terminals (top and bottom) 1…16 mm² flexible with ferrule Screw terminals (top and bottom) 1…25 mm² rigid |
| Wire stripping length | 12 mm for top and bottom connection |
| Tightening torque | 4 N.m top and bottom |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Electrical durability | 7000 cycles |
| Mechanical durability | 10000 cycles |
| 9 mm pitches | 12 |
| Height | 85 mm |
| Width | 105 mm |
| Depth | 44 mm |
| Net weight | 448 g |
| Standards | EN/IEC 60947-3 AS/NZS 60947-3 |
|---|---|
| Quality labels | CE RCM |
| IP degree of protection | IP20 IP40 inside enclosure |
| Pollution degree | 3 |
| Ambient air temperature for operation | -25…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.200 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 519.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.443 kg |
