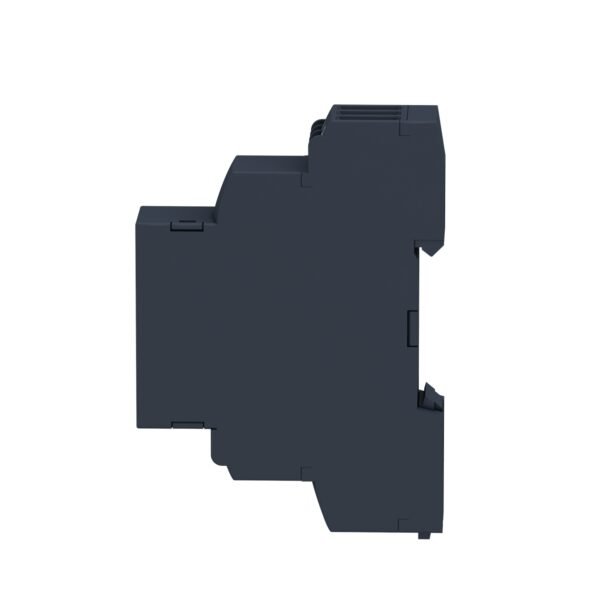

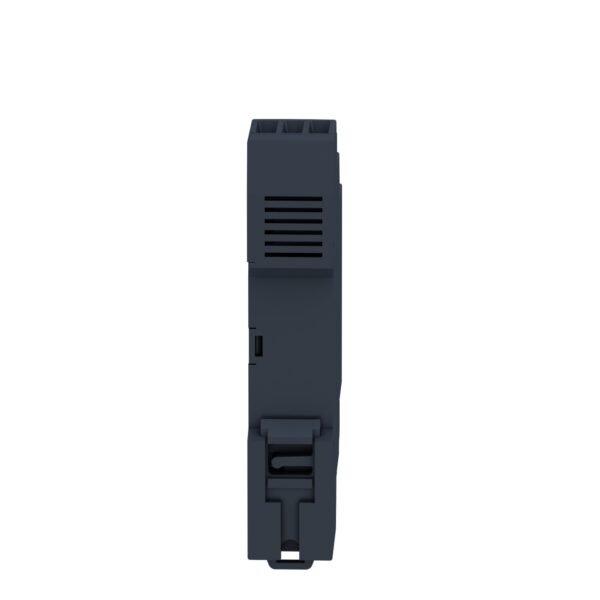

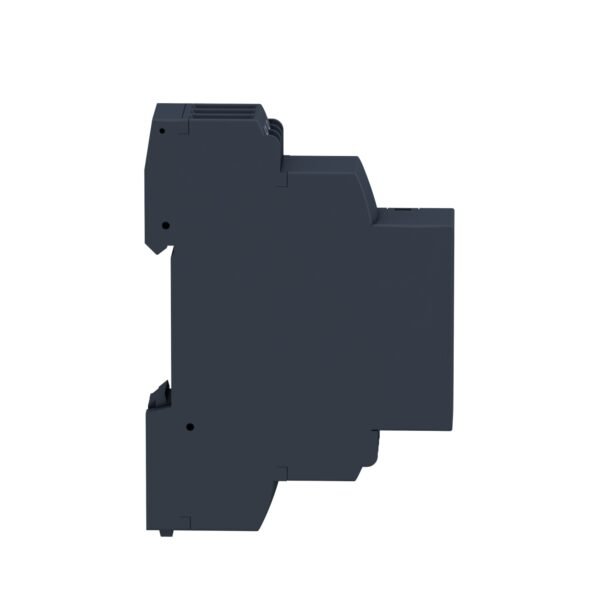

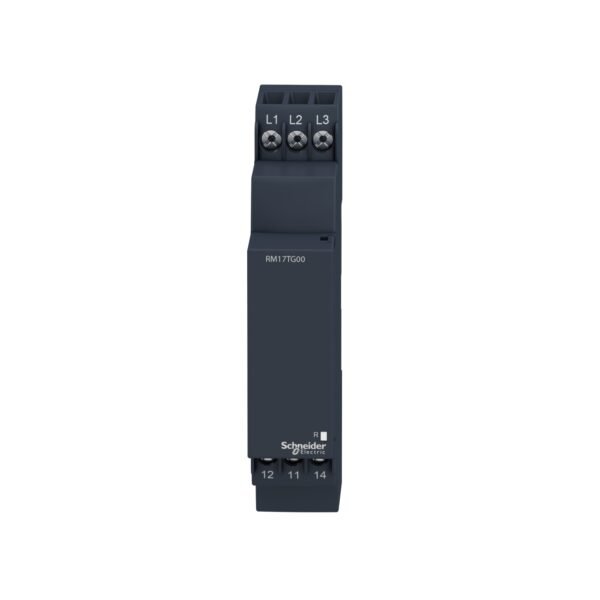

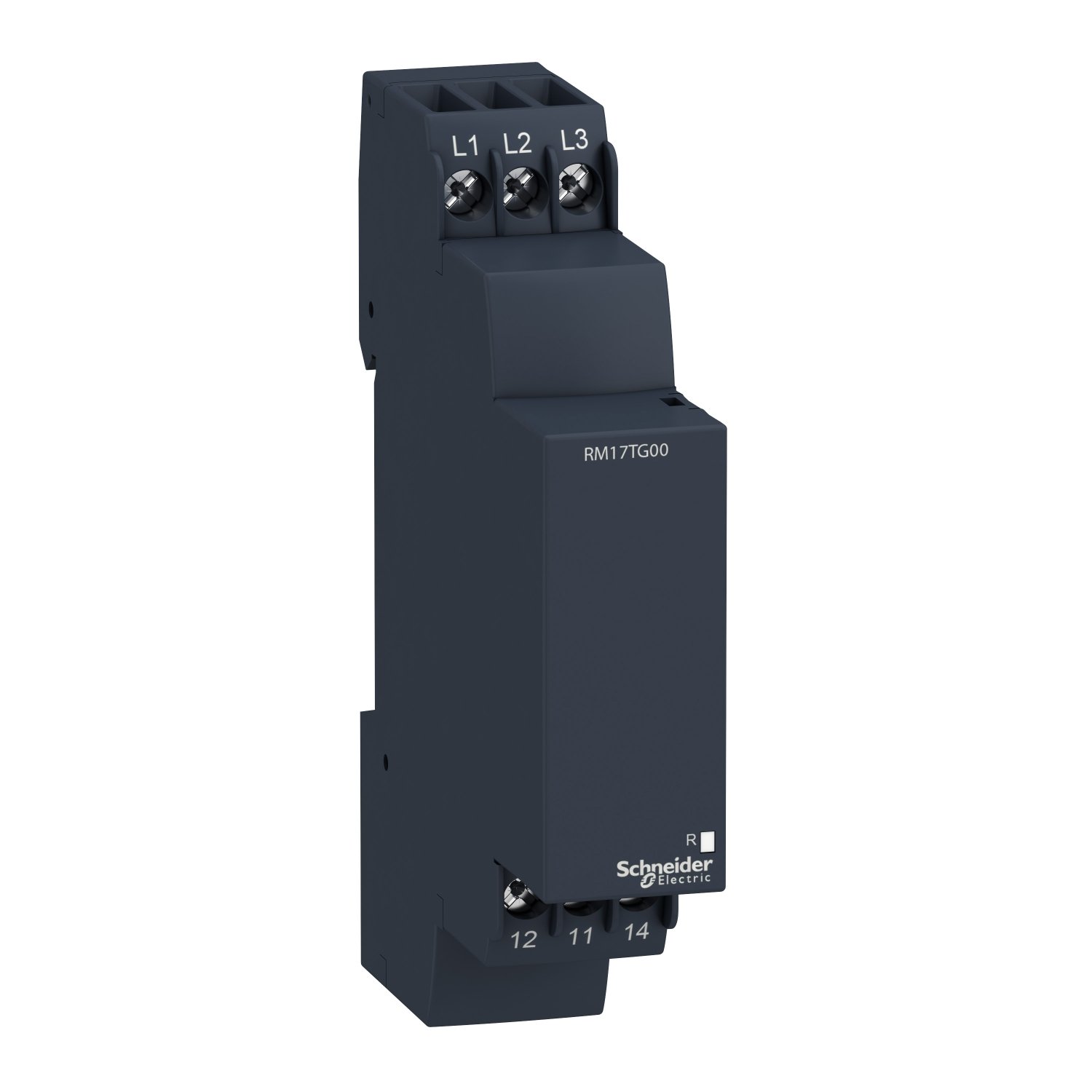

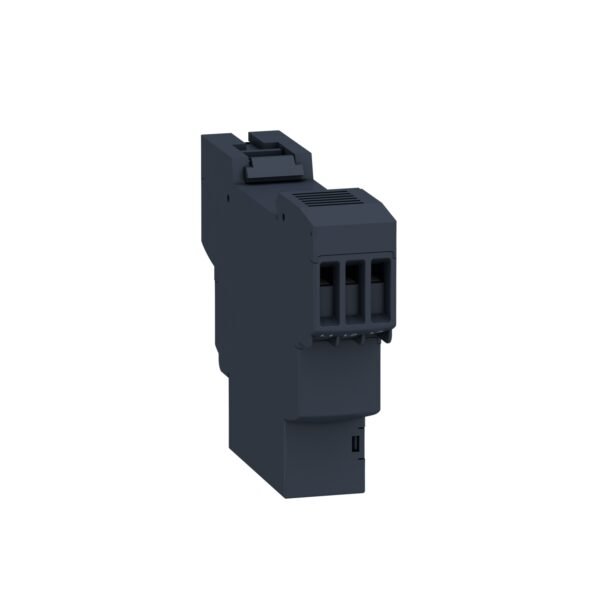

Schneider RM17TG00 | Phase control relay RM17-T – range 183..528 V AC

Compare

Product Code:

RM17TG00

Tag:

Phase control relay RM17-T - range 183..528 V AC

Brand: Schneider Electric

Schneider RM17TG00 | Phase control relay RM17-T – range 183..528 V AC

Name: Schneider RM17TG00 | Phase control relay RM17-T - range 183..528 V AC
Brand: Schneider Electric
SKU: RM17TG00
Availability: InStock

Schneider RM17TG00 | Phase Control Relay RM17-T – Range 183..528 V AC Description

Introduction The Schneider RM17TG00 is a phase control relay that plays a crucial role in managing electrical phases within a specified voltage range. This article delves into its features, benefits, installation process, and more.

Specifications The RM17TG00 is designed for a voltage range of 183 to 528 V AC. It operates within these parameters, ensuring efficient phase control in electrical systems.

Features One of its key features is precise phase control, allowing for seamless management of electrical phases. It also includes built-in protection mechanisms to safeguard against voltage fluctuations and overloads.

Installation Installing the RM17TG00 involves a straightforward wiring process. Follow the manufacturer’s guidelines and ensure proper grounding for optimal performance.

Applications This relay finds extensive use in industrial and commercial settings where precise phase control is critical for equipment operation. It is often employed in machinery, HVAC systems, and automated processes.

Benefits The RM17TG00 offers significant benefits such as improved efficiency and reliability in electrical systems. By maintaining stable phase control, it helps prevent downtime and equipment damage.

Comparison Compared to other phase control relays, the RM17TG00 stands out for its robust design, wide voltage range compatibility, and advanced features. It competes well in terms of performance and durability.

Maintenance Regular maintenance is key to prolonging the relay’s lifespan. Ensure periodic checks, clean terminals, and address any issues promptly to avoid disruptions.

Conclusion In conclusion, the Schneider RM17TG00 phase control relay is a reliable solution for managing electrical phases within the specified voltage range. Its features, ease of installation, and application versatility make it a preferred choice in various industries.

FAQs

What is the voltage range of the Schneider RM17TG00?
How does the RM17TG00 contribute to electrical system efficiency?
Can the relay handle voltage fluctuations effectively?
What are some common applications of the RM17TG00 in industrial settings?
Are there any tips for maintaining optimal performance of the phase control relay?

brands	Schneider Electric

Main
Range of product	Harmony Control Relays
Relay type	Control relay
Product or component type	3-phase control relay
Product specific application	For 3-phase supply
Relay name	RM17TG
Relay monitored parameters	Phase sequence Phase failure detection (2 or more phase cut)
Measurement range	208...480 V AC
time delay	Without
Output contacts	1 C/O
Nominal output current	5 A
Contacts type and composition	1 C/O
[Uc] control circuit voltage	208...480 V

Complementary
[Un] rated nominal voltage	, self-powered
Supply voltage limits	183…528 V AC
Maximum switching voltage	250 V AC 250 V DC
Switching capacity in VA	1250 VA
Minimum switching current	10 mA at 5 V DC
Control circuit voltage limits	- 12 % + 10 % Un
Power consumption in VA	0…22 VA at 400 V AC 50 Hz
Voltage detection threshold	< 100 V AC
Control circuit frequency	50...60 Hz +/- 10 %
Measurement voltage limits	183…528 V AC
delay at power up	650 ms
Voltage range	183...528 V
Response time	<= 130 ms (in the event of a fault)
Insulation resistance	> 500 MOhm at 500 V DC conforming to IEC 60255-5 > 500 MOhm at 500 V DC conforming to IEC 60664-1
[Ui] rated insulation voltage	400 V conforming to IEC 60664-1
Supply frequency	50/60 Hz +/- 10 %
Operating position	Any position without derating
Connections - terminals	Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
Tightening torque	0.6…1 N.m conforming to IEC 60947-1
Housing material	Self-extinguishing plastic
Local signalling	LED (yellow) for relay ON
Mounting support	35 mm symmetrical DIN rail conforming to IEC 60715
Electrical durability	100000 cycles
Mechanical durability	30000000 cycles
Operating rate	<= 360 operations/hour full load
Utilisation category	AC-12 conforming to IEC 60947-5-1 AC-13 conforming to IEC 60947-5-1 AC-14 conforming to IEC 60947-5-1 AC-15 conforming to IEC 60947-5-1 DC-12 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1
Safety reliability data	MTTFd = 924.6 years B10d = 850000
Width	17.5 mm
Net weight	0.13 kg
Control type	Without test button

Environment
Electromagnetic compatibility	Emission standard for industrial environments conforming to IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Immunity for industrial environments conforming to IEC 61000-6-2
Standards	IEC 60255-1
Product certifications	C-Tick GL CSA UL GOST
Marking	CE
Directives	73/23/EEC - low voltage directive 89/336/EEC - electromagnetic compatibility
Ambient air temperature for storage	-40…70 °C
Ambient air temperature for operation	-20…50 °C
Relative humidity	95 % at 55 °C conforming to IEC 60068-2-30
Vibration resistance	0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1
Shock resistance	15 gn for 11 ms conforming to IEC 60255-21-1
IP degree of protection	IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529
Pollution degree	3 conforming to IEC 60664-1
Overvoltage category	III conforming to IEC 60664-1
Dielectric test voltage	2 kV, 1 min AC 50 Hz
Non-dissipating shock wave	4 kV

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.700 cm
Package 1 Width	7.800 cm
Package 1 Length	9.500 cm
Package 1 Weight	89.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	48
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.715 kg
Unit Type of Package 3	P06
Number of Units in Package 3	768
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	81.828 kg

Contractual warranty
Warranty	18 months
