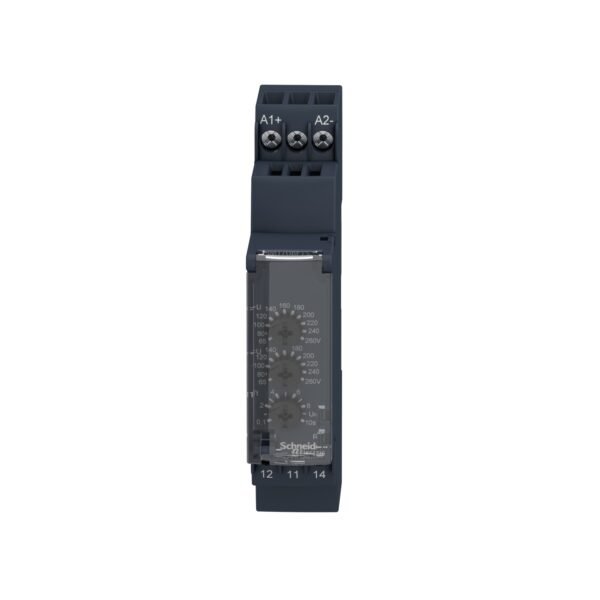

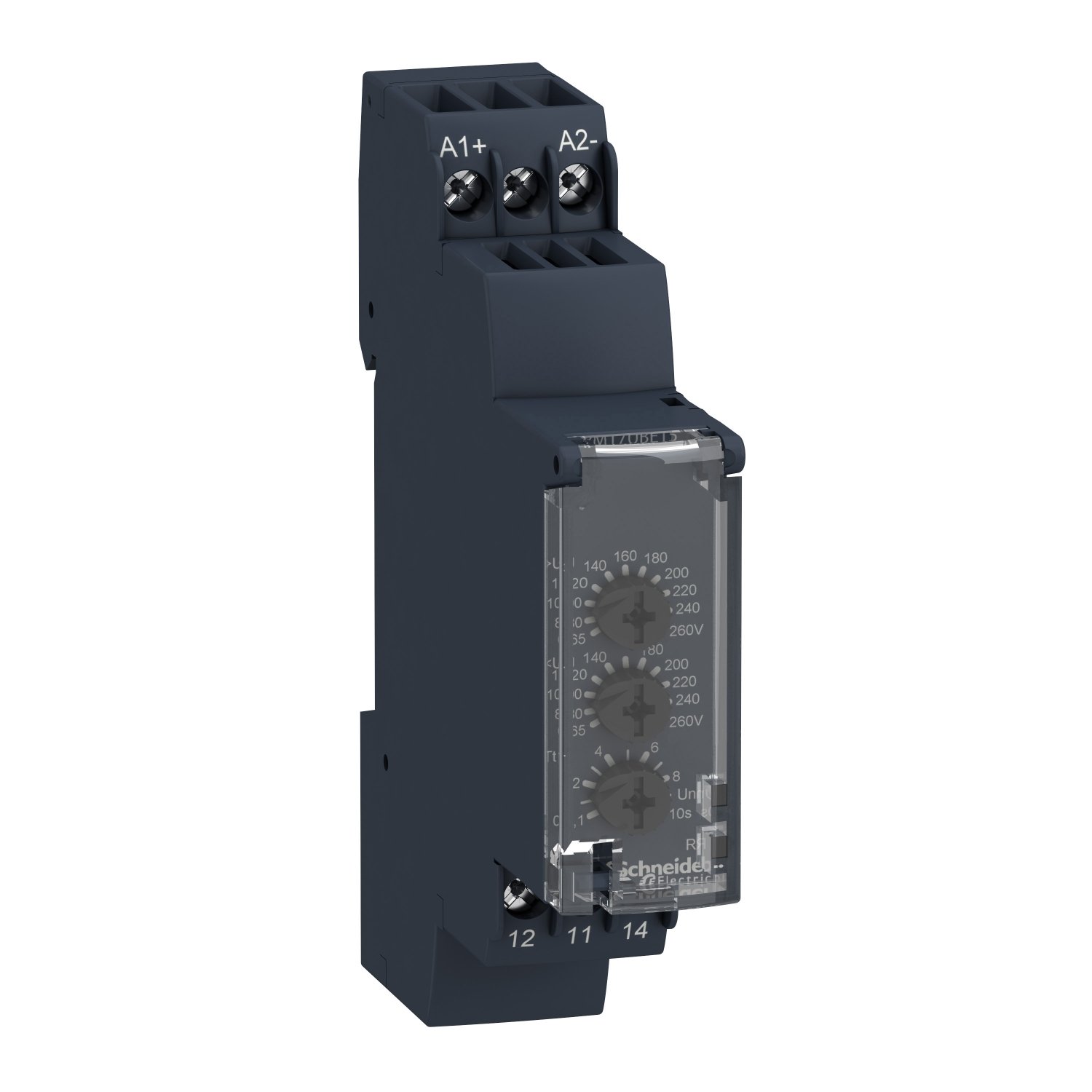

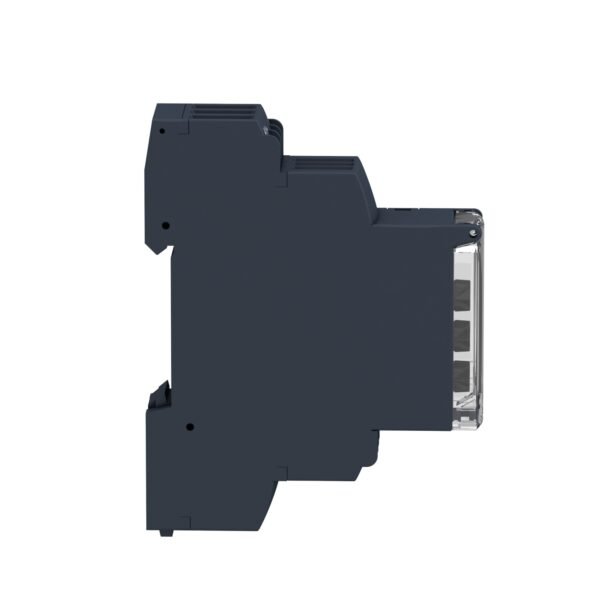

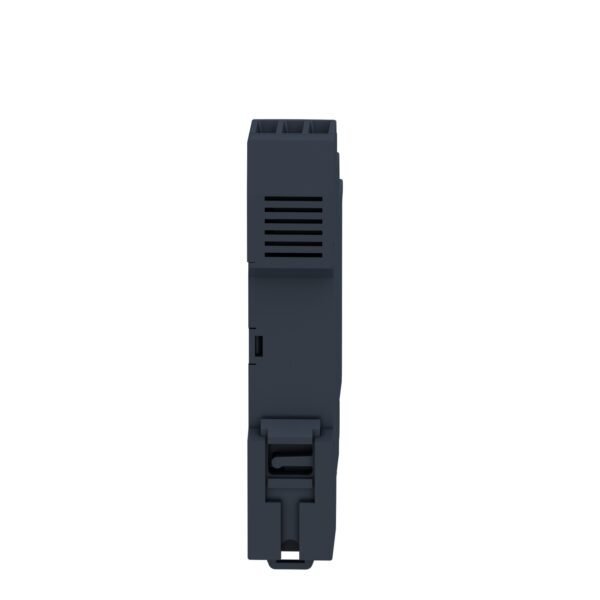

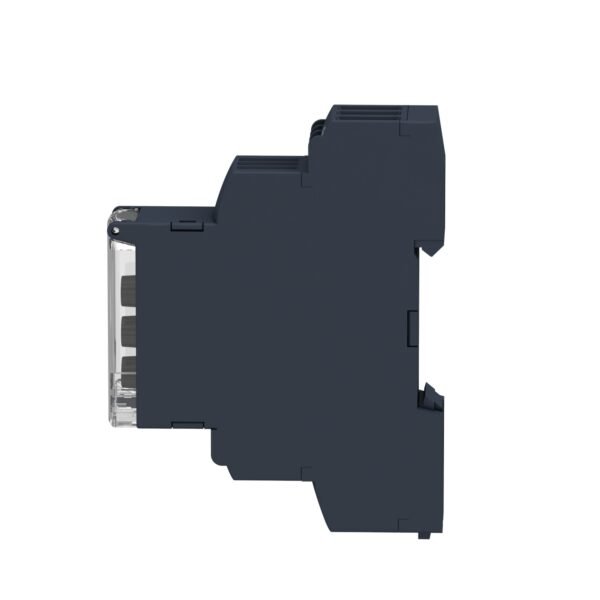

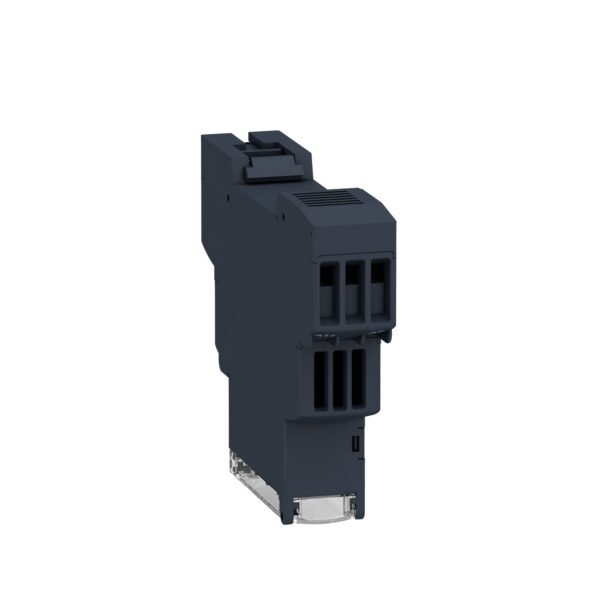

Schneider RM17UBE15 | Voltage control relay RM17-U – range 65..260 V AC/DC
Original price was: EGP 63,558.00.EGP 36,864.00Current price is: EGP 36,864.00.
Description
Schneider RM17UBE15 | Voltage control relay RM17-U – range 65..260 V AC/DC
Schneider RM17UBE15 | Voltage Control Relay RM17-U – Range 65..260 V AC/DC Description
Electricity is the lifeblood of modern civilization, powering everything from our homes to industries. Ensuring stable voltage levels is crucial to maintaining the health and longevity of electrical systems. One key component that aids in this endeavor is the Schneider RM17UBE15 voltage control relay.
Introduction to Schneider RM17UBE15
Voltage control relays like the RM17UBE15 play a vital role in managing and regulating voltage levels within a specified range. They act as protective measures, preventing electrical equipment from damage due to voltage fluctuations.
Features and Specifications of RM17UBE15
The RM17UBE15 is designed to operate within a voltage range of 65 to 260 volts, accommodating both AC and DC power sources. Its compact size and robust construction make it suitable for various industrial and commercial applications.
Benefits of Using RM17UBE15
By using the RM17UBE15, businesses and individuals can ensure stable voltage supply to their equipment, thus enhancing operational efficiency and reducing downtime. This relay also offers protection against overvoltage or undervoltage scenarios, safeguarding sensitive electronics.
Installation and Setup Guide
Installing the RM17UBE15 is straightforward, requiring basic electrical knowledge. Users should follow the manufacturer’s guidelines and safety precautions during installation to ensure optimal performance.
Maintenance and Troubleshooting
Regular maintenance of the RM17UBE15 involves periodic checks for proper functioning and cleanliness. In case of issues such as voltage spikes or relay failure, troubleshooting steps outlined in the user manual should be followed.
Comparison with Other Voltage Control Relays
Compared to traditional relays, the RM17UBE15 stands out due to its wide voltage range, compact design, and reliability. These factors make it a preferred choice for voltage control applications in diverse settings.
Real-World Applications
The RM17UBE15 finds use in industries such as manufacturing, telecommunications, and automation, where precise voltage control is paramount. Its ability to maintain stable voltages contributes to equipment longevity and operational continuity.
Future Developments and Innovations
As technology advances, voltage control relays like the RM17UBE15 are expected to evolve further. Innovations may include enhanced monitoring capabilities, integration with smart systems, and improved efficiency.
Conclusion
In conclusion, the Schneider RM17UBE15 voltage control relay is a dependable solution for managing voltage fluctuations and ensuring the smooth operation of electrical systems. Its versatility, reliability, and performance make it a valuable asset across various industries.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Control Relays |
|---|---|
| Relay type | Voltage control relay |
| Product or component type | Voltage control relay |
| Product specific application | For single-phase and DC supply |
| Relay name | RM17UBE |
| Relay monitored parameters | Overvoltage and undervoltage detection |
| time delay | Adjustable 0.1...10 s, 0 + 10 % Tt- time delay upon fault |
| Switching capacity in VA | 1250 VA |
| Measurement range | 65...260 V AC/DC |
| Contacts type and composition | 1 C/O |
| Reset time | 1500 ms time delay |
|---|---|
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 5 A AC/DC |
| Supply voltage limits | 50…270 V AC/DC |
| Power consumption in VA | 0…3 VA AC |
| Maximum power consumption in W | 1 W DC |
| Control circuit frequency | 50...60 Hz +/- 10 % |
| Immunity to microbreaks | 20 ms |
| Output contacts | 1 C/O |
| Nominal output current | 5 A |
| Hysteresis | 5 % fixed of threshold setting |
| Measurement accuracy | +/- 10 % of the full scale value |
| Polarity | Non reversible polarity on DC supply |
| delay at power up | 1000 ms DC 500 ms AC |
| Maximum measuring cycle | 150 ms measurement cycle as true rms value |
| Repeat accuracy | +/- 0.5 % for input and measurement circuit +/- 1 % for time delay |
| Measurement error | < 1 % over the whole range with voltage variation 0.2 %/°C with temperature variation |
| Quality labels | CE |
| Insulation resistance | > 500 MOhm at 500 V DC conforming to IEC 60255-5 > 500 MOhm at 500 V DC conforming to IEC 60664-1 |
| Operating position | Any position without derating |
| Local signalling | LED (green) for power ON LED (yellow) for relay ON |
| Overvoltage category | III conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 400 V conforming to IEC 60664-1 |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| Utilisation category | AC-12 conforming to IEC 60947-5-1 AC-13 conforming to IEC 60947-5-1 AC-14 conforming to IEC 60947-5-1 AC-15 conforming to IEC 60947-5-1 DC-12 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 DC-14 conforming to IEC 60947-5-1 |
| [Un] rated nominal voltage | , self-powered |
| Safety reliability data | B10d = 470000 MTTFd = 502.2 years |
| Control type | Without test button |
| Width | 17.5 mm |
| Net weight | 0.08 kg |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
|---|---|
| Ambient air temperature for operation | -20…50 °C |
| Vibration resistance | 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1 |
| Shock resistance | 5 gn conforming to IEC 60068-2-27 |
| Standards | IEC 60255-6 |
| Product certifications | UL GL GOST C-Tick CSA |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 95 % at 55 °C conforming to IEC 60068-2-30 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Directives | 73/23/EEC - low voltage directive 89/336/EEC - electromagnetic compatibility |
| Dielectric test voltage | 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 |
| Non-dissipating shock wave | 4 kV conforming to IEC 60255-5 4 kV conforming to IEC 60664-1 4 kV conforming to IEC 61000-4-5 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.800 cm |
| Package 1 Width | 7.800 cm |
| Package 1 Length | 9.700 cm |
| Package 1 Weight | 81.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.408 kg |
| Warranty | 18 months |
|---|
