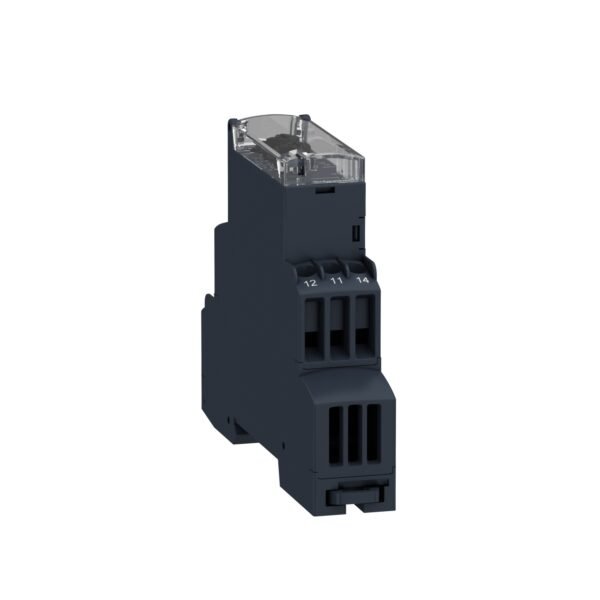

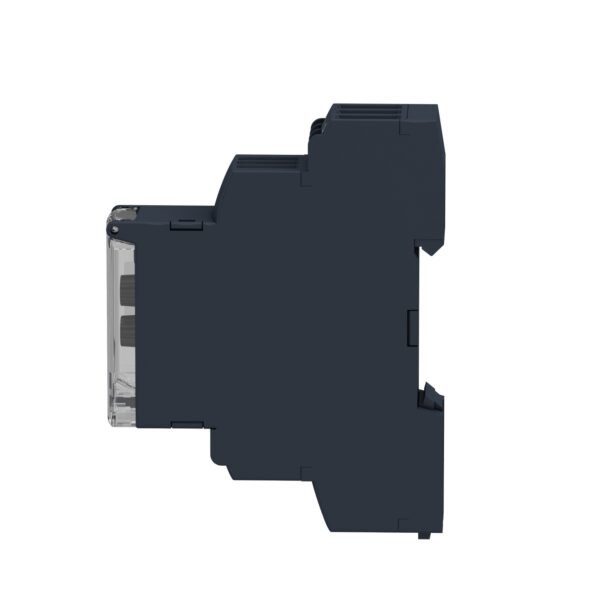

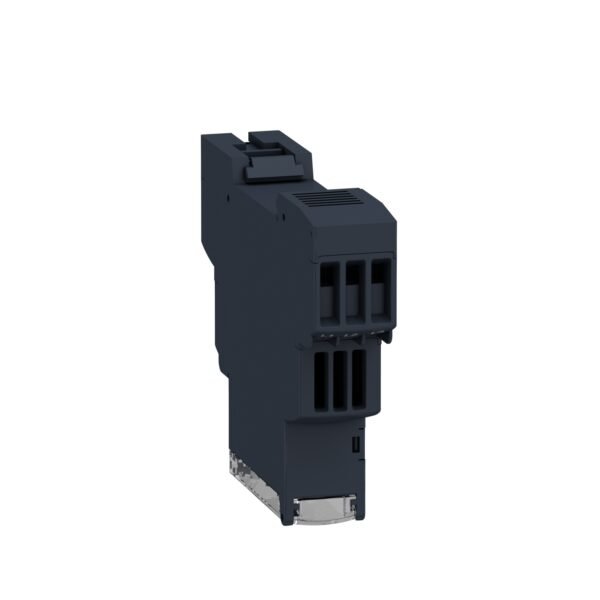

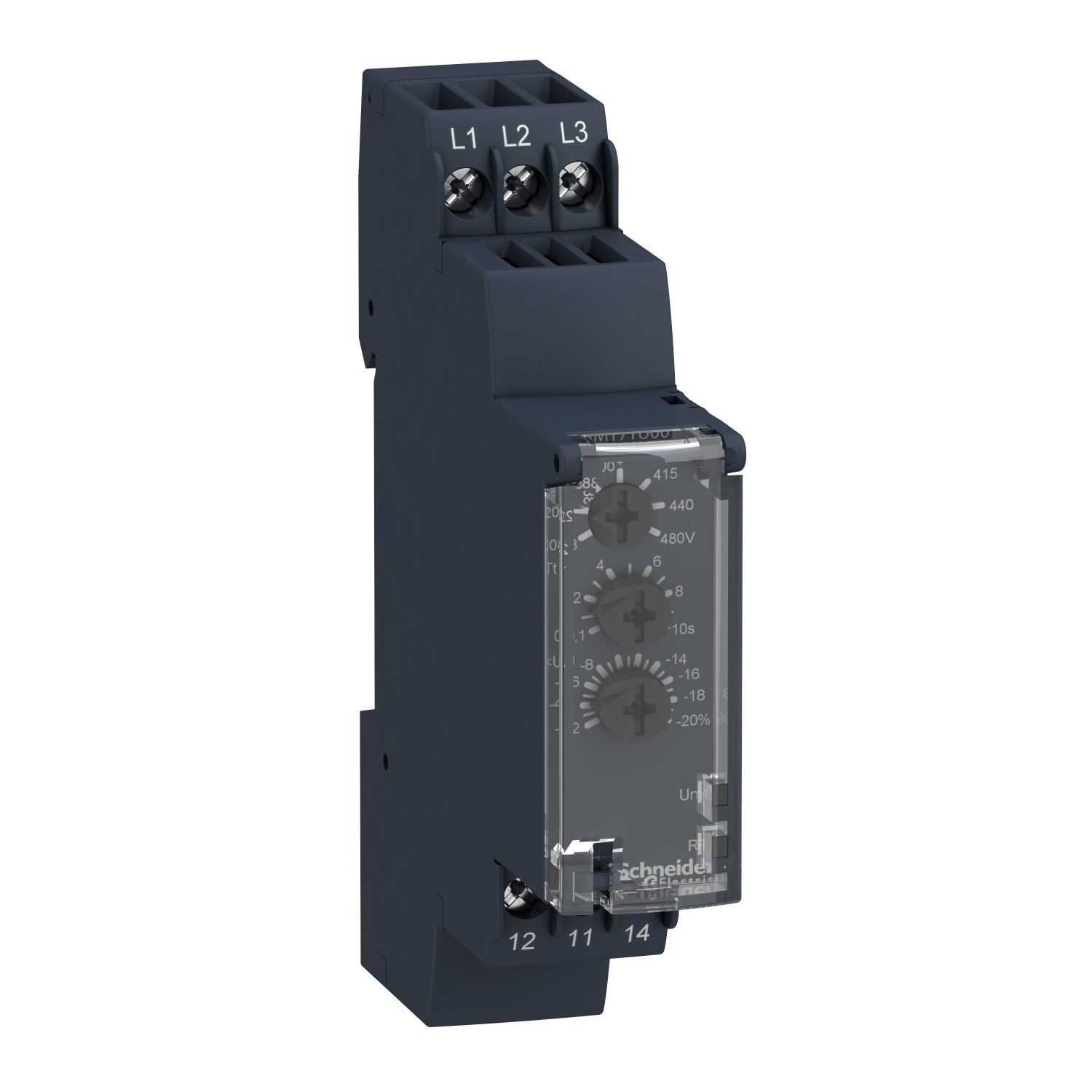

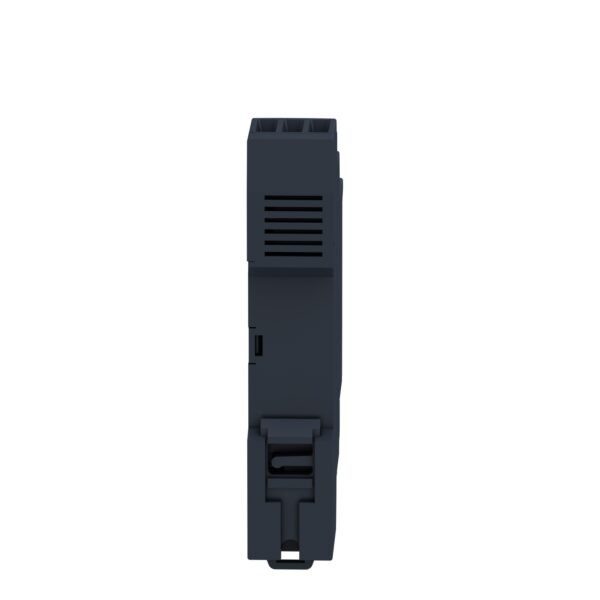

Schneider RM17TU00 Relay | Multifunction control relay RM17-TU – range 183..528 V AC
Schneider RM17TU00 Relay
Original price was: EGP 57,645.00.EGP 33,434.00Current price is: EGP 33,434.00.
Description
Schneider RM17TU00 Relay
The Schneider RM17TU00 Relay stands out as a reliable and versatile component in electrical systems, renowned for its efficiency and performance. This article delves into the intricate details of this remarkable device, shedding light on its features, applications, installation procedures, troubleshooting methods, and much more.
Understanding the Functionality of Relays
What is a Relay?
Relays serve as crucial elements in electrical circuits, functioning as switches that control the flow of electricity. They enable the activation or deactivation of circuits based on predetermined conditions, making them indispensable in various industries and applications.
Importance of Relays in Electrical Systems
Relays play a pivotal role in ensuring the seamless operation of complex electrical systems. By acting as intermediaries between low and high voltage circuits, they provide reliable control and protection mechanisms, safeguarding equipment and enhancing overall efficiency.
Features and Specifications of Schneider RM17TU00 Relay
Technical Specifications
The Schneider RM17TU00 Relay boasts a robust set of technical specifications, including voltage ratings, current capacities, and frequency ranges. With its compact design and versatile configuration options, it caters to diverse operational requirements with utmost precision.
Key Features
Equipped with advanced features such as adjustable time delays, fault detection mechanisms, and DIN rail mounting capabilities, the Schneider RM17TU00 Relay offers unparalleled functionality and convenience. Its user-friendly interface and intuitive controls simplify installation and operation, making it an ideal choice for both professionals and enthusiasts alike.
Applications of Schneider RM17TU00 Relay
Industrial Automation
In industrial settings, the Schneider RM17TU00 Relay finds extensive use in process control, machinery automation, and safety monitoring applications. Its reliability and durability make it well-suited for demanding environments, where precision and performance are paramount.
HVAC Systems
Heating, ventilation, and air conditioning (HVAC) systems rely on relays for regulating temperature, airflow, and humidity levels. The Schneider RM17TU00 Relay excels in this domain, offering precise control and seamless integration with existing HVAC infrastructure.
Energy Management Systems
Efficient energy management is essential for optimizing resource utilization and reducing operational costs. With its energy-efficient design and smart monitoring capabilities, the Schneider RM17TU00 Relay plays a pivotal role in enhancing the sustainability and profitability of energy management systems.
Installation and Setup Guide
Step-by-Step Installation Process
Installing the Schneider RM17TU00 Relay is a straightforward process, requiring basic electrical knowledge and standard tools. By following the manufacturer’s guidelines and adhering to safety protocols, users can ensure a hassle-free installation experience.
Configuration Tips
Configuring the Schneider RM17TU00 Relay to meet specific requirements involves adjusting parameters such as time delays, sensitivity levels, and fault thresholds. By carefully fine-tuning these settings, users can optimize performance and achieve optimal results.
Troubleshooting Common Issues
Identifying Problems
Despite its reliability, it may encounter occasional issues due to various factors such as voltage fluctuations, environmental conditions, or component failures. Common problems include relay malfunctions, circuit disruptions, and sensor inaccuracies.
Solutions and Fixes
To address these issues effectively, users can follow a systematic troubleshooting approach, starting with basic checks and gradually progressing to more advanced diagnostics. By isolating the root cause of the problem and implementing appropriate solutions, users can restore the relay’s functionality and prevent further complications.
Advantages of Using Schneider RM17TU00 Relay
Efficiency Enhancement
it offers significant efficiency gains through its precise control capabilities and intelligent monitoring features. By optimizing energy consumption and minimizing downtime, it contributes to overall productivity and profitability.
Cost Savings
In addition to efficiency gains, the Schneider RM17TU00 Relay delivers substantial cost savings by reducing maintenance expenses, minimizing equipment downtime, and prolonging the lifespan of electrical components. Its robust construction and reliable performance ensure long-term value and return on investment.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Control Relays |
|---|---|
| Relay type | Multifunction control relay |
| Product or component type | 3-phase control relay |
| Relay name | RM17TU |
| Relay monitored parameters | Undervoltage detection Phase sequence Phase failure detection |
| Measurement range | 208...480 V AC |
| time delay | Adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault |
| Output contacts | 1 C/O |
| Nominal output current | 5 A |
| Contacts type and composition | 1 C/O |
| [Uc] control circuit voltage | 208...480 V |
| Product specific application | For 3-phase supply |
| [Un] rated nominal voltage | , self-powered |
|---|---|
| Supply voltage limits | 183…528 V AC |
| Reset time | 1500 ms time delay |
| Maximum switching voltage | 250 V AC 250 V DC |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 5 A AC 5 A DC |
| Control circuit voltage limits | - 12 % + 10 % Un |
| Power consumption in VA | 0…22 VA at 400 V AC 50 Hz |
| Control circuit frequency | 50...60 Hz +/- 10 % |
| Measurement voltage limits | 183…528 V AC |
| Hysteresis | 2 % |
| delay at power up | 650 ms |
| Maximum measuring cycle | 150 ms measurement cycle as true rms value |
| Threshold adjustment voltage | 2...20 % of Un selected -2...-12 % in the range 208 V AC -2...-17 % in the range 220 V AC |
| Voltage range | 208...480 V phase to phase |
| Repeat accuracy | 0.5 % for input and measurement circuit 3 % for time delay |
| Measurement error | < 0.05 %/°C with temperature variation < 1 % over the whole range with voltage variation |
| Phase failure sensitivity | 0.7 Un |
| Response time | < 200 ms (in the event of a fault) |
| Insulation resistance | > 500 MOhm at 500 V DC conforming to IEC 60255-5 > 500 MOhm at 500 V DC conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60664-1 |
| Supply frequency | 50/60 Hz +/- 10 % |
| Operating position | Any position without derating |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| Local signalling | LED (green) for power ON LED (yellow) for relay ON |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| Utilisation category | AC-12 conforming to IEC 60947-5-1 AC-13 conforming to IEC 60947-5-1 AC-14 conforming to IEC 60947-5-1 AC-15 conforming to IEC 60947-5-1 DC-12 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 |
| Safety reliability data | MTTFd = 502.2 years B10d = 470000 |
| Width | 17.5 mm |
| Net weight | 0.13 kg |
| Control type | Without test button |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Immunity for industrial environments conforming to IEC 61000-6-2 |
|---|---|
| Standards | IEC 60255-1 |
| Product certifications | GL GOST UL C-Tick CSA |
| Marking | CE |
| Directives | 73/23/EEC - low voltage directive 89/336/EEC - electromagnetic compatibility |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 95 % at 55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Overvoltage category | III conforming to IEC 60664-1 |
| Dielectric test voltage | 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 |
| Non-dissipating shock wave | 4 kV conforming to IEC 60255-5 4 kV conforming to IEC 60664-1 4 kV conforming to IEC 61000-4-5 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.800 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 9.600 cm |
| Package 1 Weight | 86.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.003 kg |
| Warranty | 18 months |
|---|
