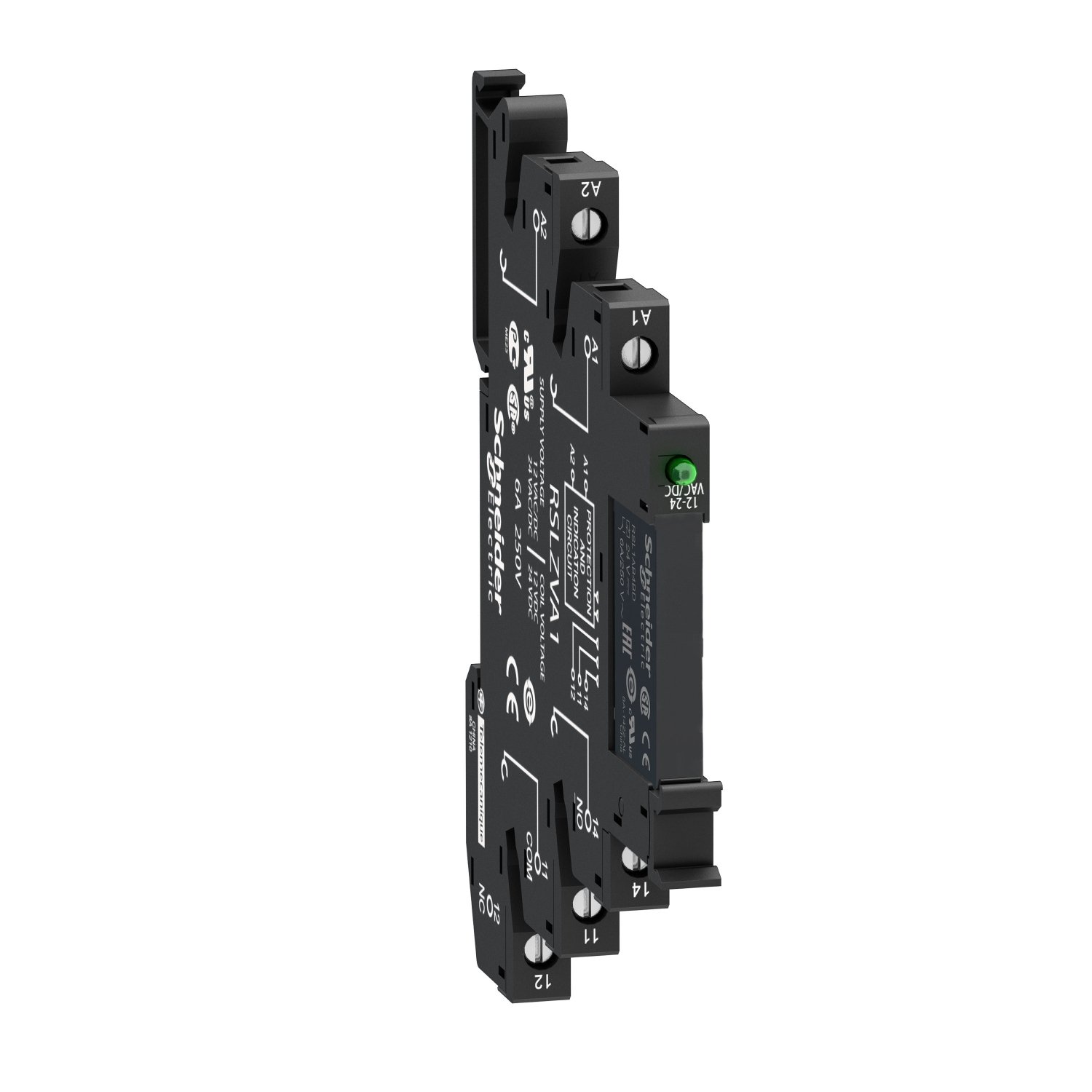

Schneider RSL1PVPU | Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, screw connector, 230 V AC
Schneider RSL1PVPU | Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, screw connector, 230 V AC
Original price was: EGP 10,161.00.EGP 5,894.00Current price is: EGP 5,894.00.
Description
Schneider RSL1PVPU – Slim Interface Relay Overview
The Schneider RSL1PVPU is a pre-assembled, compact interface relay designed for control systems that require reliable switching and space-saving solutions. Below are its key features and technical specifications.
General Description
-
Product Name: RSL1PVPU
-
Product Type: Slim interface relay
-
Function: Electrically isolates and interfaces control signals
-
Mounting: DIN rail mounted
-
Application: Industrial control panels, automation systems, PLC interfaces
Main Features
-
Contact Type: 1 changeover contact (1 CO = SPDT)
-
Contact Rating: 6 A at 250 V AC
-
Pre-assembled Unit: Includes relay + base + LED indicator + protection module
-
Status Indication: Built-in LED for coil status
-
Protection Module: Integrated to suppress coil voltage spikes
-
Wiring Type: Screw connector terminals
-
Width: Slim 6.2 mm design for compact installations
Electrical Specifications
-
Coil Voltage: 230 V AC
-
Rated Current (Contacts): Up to 6 Amps
-
Insulation Voltage: 250 V
-
Dielectric Strength: 4 kV between input and output
-
Response Time:
-
Pick-up: ≤ 20 ms
-
Drop-out: ≤ 20 ms
-
Mechanical Details
-
Mounting: DIN rail (35 mm)
-
Connection Type: Screw terminals
-
Housing: Plastic, slim-profile enclosure
-
Weight: Approx. 60 grams
-
Color: Light grey housing with clear labeling
Standards & Certifications
-
Compliances:
-
IEC 61810-1
-
RoHS compliant
-
-
Certifications: CE, UL, CSA
-
Pollution Degree: 2
-
Protection Degree: IP20 (terminal side)
Typical Applications
-
Signal switching in automation
-
PLC output extension
-
Control and feedback circuits
-
Industrial machinery and HVAC systems
-
Electrical panel design where space is limited
Benefits
-
Compact footprint saves panel space
-
Plug-and-play solution – ready to install
-
Built-in LED for fast diagnostics
-
Enhanced protection for control electronics
-
Reliable switching for long-term operation
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | RSL series |
| Product or component type | Pre-assembled plug-in relay with socket |
| Relay type | Slim interface relay |
| Contact operation | Standard |
| Contacts type and composition | 1 C/O |
| status LED | With |
| [Uc] control circuit voltage | 230 V AC/DC |
| [Ithe] conventional enclosed thermal current | 6 A at -40…55 °C |
| fixing mode | Plastic compression spring |
|---|---|
| Average resistance | 20500 Ohm network: DC at 23 °C +/- 10 % |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC |
| [Ie] rated operational current | 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL |
| minimum switching current | 100 mA |
| Minimum switching voltage | 12 V |
| [Ui] rated insulation voltage | 250 V conforming to IEC 277 V conforming to cUL |
| Minimum switching capacity | 120 mW |
| Maximum switching voltage | 277 V |
| Drop-out voltage threshold | >= 0.05 Uc |
| Load current | 6 A at 250 V AC 0.5 mm mounting distance |
| Electrical durability | 60000 cycles for resistive load, 6 A at 250 V, AC-1 |
| Maximum switching capacity | 1500 VA 150 W |
| Operating time | 5 ms reset 12 ms |
| Terminals description ISO n°1 | (11-12-14)OC (A1-A2)CO |
| Average coil consumption | 0.17 W, DC |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 60000 |
| Operating rate | <= 72000 cycles/hour no-load <= 360 cycles/hour under load |
| Tightening torque | < 0.5 N.m for M2.5 screw(s) |
| Control type | Without lockable test button |
| Compatibility code | RSL |
| Reset time | 20 ms |
| Contact terminal arrangement | Separate |
| Connections - terminals | Screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end |
| Protection category | RT III |
| Mounting support | 35 mm symmetrical DIN rail |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Sale per indivisible quantity | 10 |
| Contacts material | Silver alloy (AgSnO2) |
| Shape of pin | Flat (PCB type) |
| Width | 6.2 mm |
| Height | 78.6 mm |
| Depth | 95 mm |
| Product weight | 0.029 kg |
| Input voltage | 230 V AC/DC (input voltage limit: 184...264.5 V) |
|---|---|
| Dielectric strength | 1000 V AC between contacts 4000 V AC between coil and contact |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40…70 °C |
| Standards | IEC 61810-1 UL 508 CSA C22.2 No 14 |
| Product certifications | GOST CSA UL |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles not operating conforming to IEC 60068-2-6 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles in operation conforming to IEC 60068-2-6 |
| Shock resistance | 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.7 cm |
| Package 1 Width | 9.6 cm |
| Package 1 Length | 7.9 cm |
| Package 1 Weight | 28.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.0 cm |
| Package 2 Width | 10.3 cm |
| Package 2 Length | 8.5 cm |
| Package 2 Weight | 311.0 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 9.822 kg |
| Warranty | 18 months |
|---|
