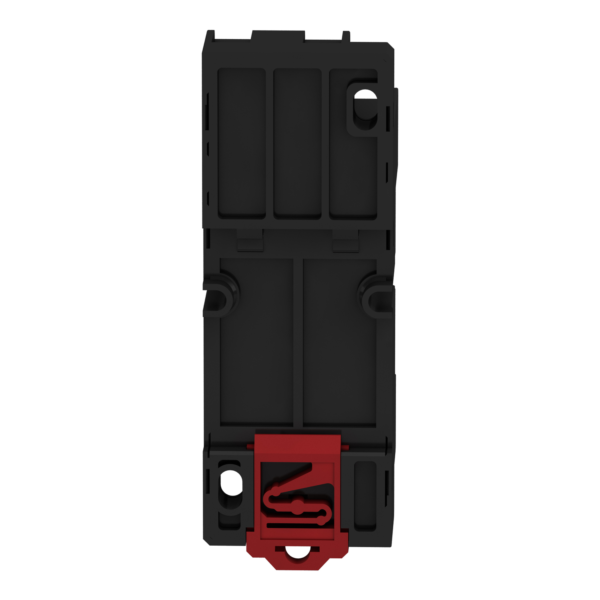

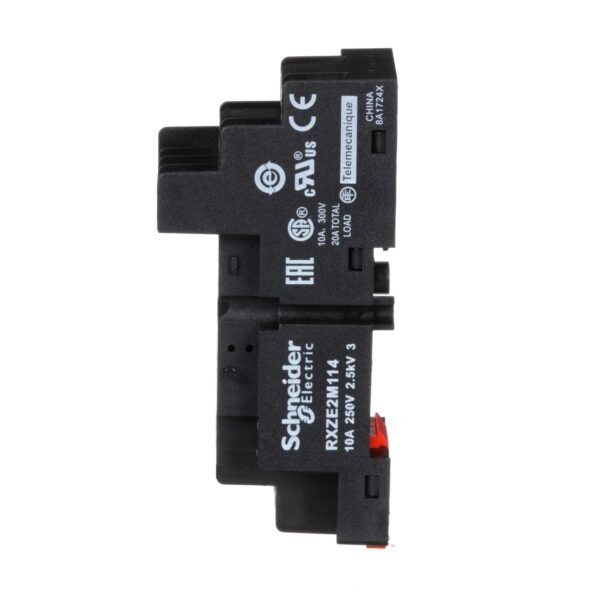

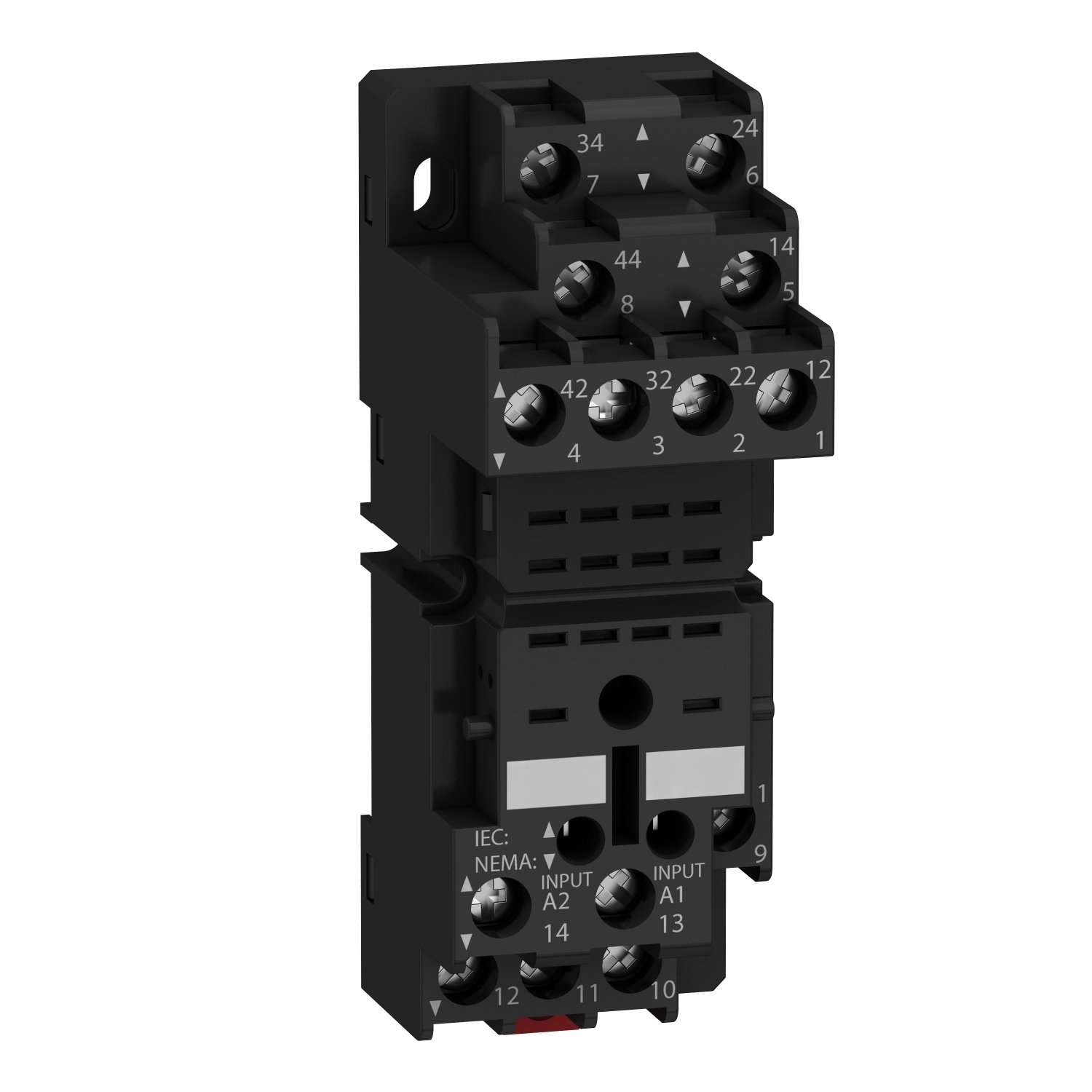

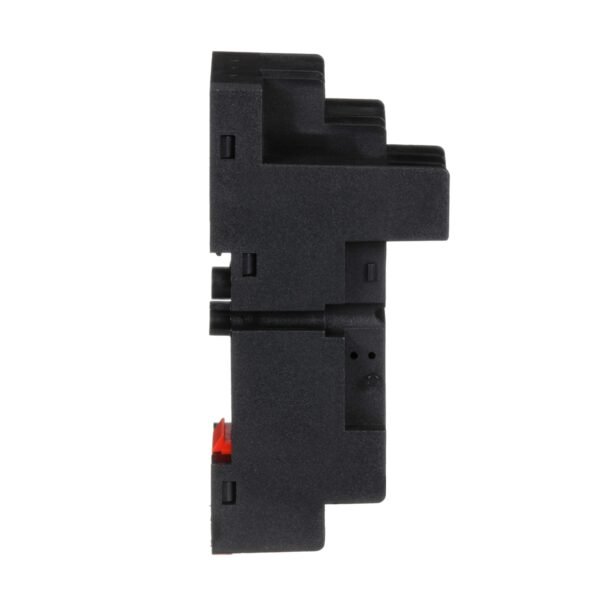

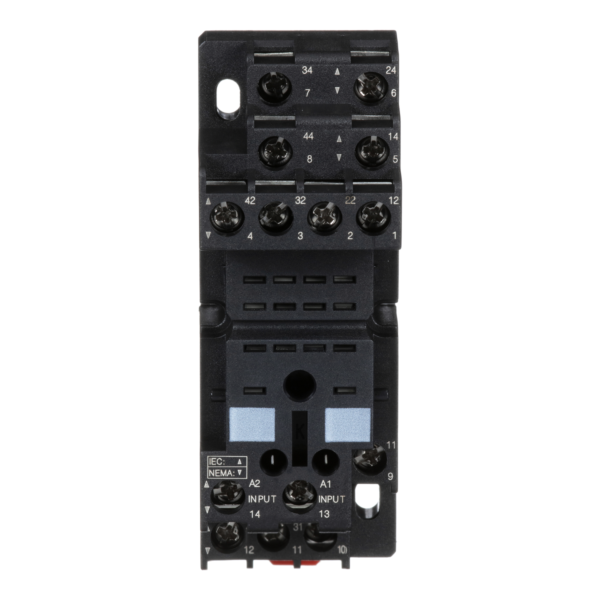

Schneider RXZE2M114 | socket RXZ – mixed contact -10A – < 250V – screw clamp -for relay RXM2.., RXM4..

Technical Specifications

• Model: RXZE2M114
• Type: Socket for RXM2 and RXM4 relays
• Contact Type: Mixed contact (combination of normally open (NO) and normally closed (NC) contacts)
• Current Rating: 10A
• Voltage Rating: Less than 250V
• Wiring Type: Screw clamp terminals for secure connection
• Relay Compatibility: Designed specifically for RXM2 and RXM4 series relays
• Mounting: Panel or DIN rail installation
• Material: High-quality, durable construction for longevity and reliable performance
• Certifications: CE, UL, IEC, and RoHS compliant

Key Features

1. Enhanced Compatibility and Versatility

• Designed for seamless use with RXM2 and RXM4 series relays, making it a highly versatile component in relay-based systems.
• The mixed contact design ensures compatibility with various control applications, offering flexible switching configurations (NO and NC contacts).

2. Durable and Reliable Construction

• The socket supports a 10A current rating and voltages of less than 250V, ensuring reliable operation in a range of industrial and commercial applications.
• The screw clamp terminals allow for secure and stable wiring connections, minimizing the risk of loose connections or electrical faults.

3. Easy Installation

• Supports panel mounting or DIN rail installation, allowing for flexible integration into different system designs.
• The screw clamp terminal design makes for quick and easy wiring, enhancing installation efficiency and ensuring secure contact.

4. High Safety and Performance

• Built to withstand demanding environments, the socket provides consistent performance over time, ensuring long-term reliability in industrial control systems.
• Secure electrical contacts improve the overall safety and efficiency of relay-based applications, reducing operational interruptions.

Applications

The Schneider RXZE2M114 socket is ideal for use in various applications, including:

Industrial Control Systems – Ensures secure and reliable connections for relays used in machinery and process controls.
Automation Systems – Suitable for automated systems where relays control various functions in machinery and production lines.
Electrical Distribution Systems – Used in control panels for managing power distribution and electrical switching.
HVAC Systems – Provides stable relay connections for controlling heating, ventilation, and air conditioning equipment.
Building Management Systems – Ensures reliable relay connections in smart buildings, controlling lighting, security, and HVAC systems.
