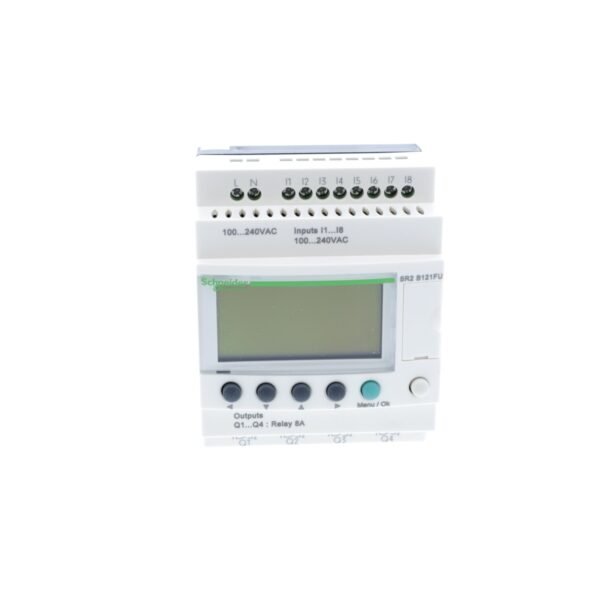

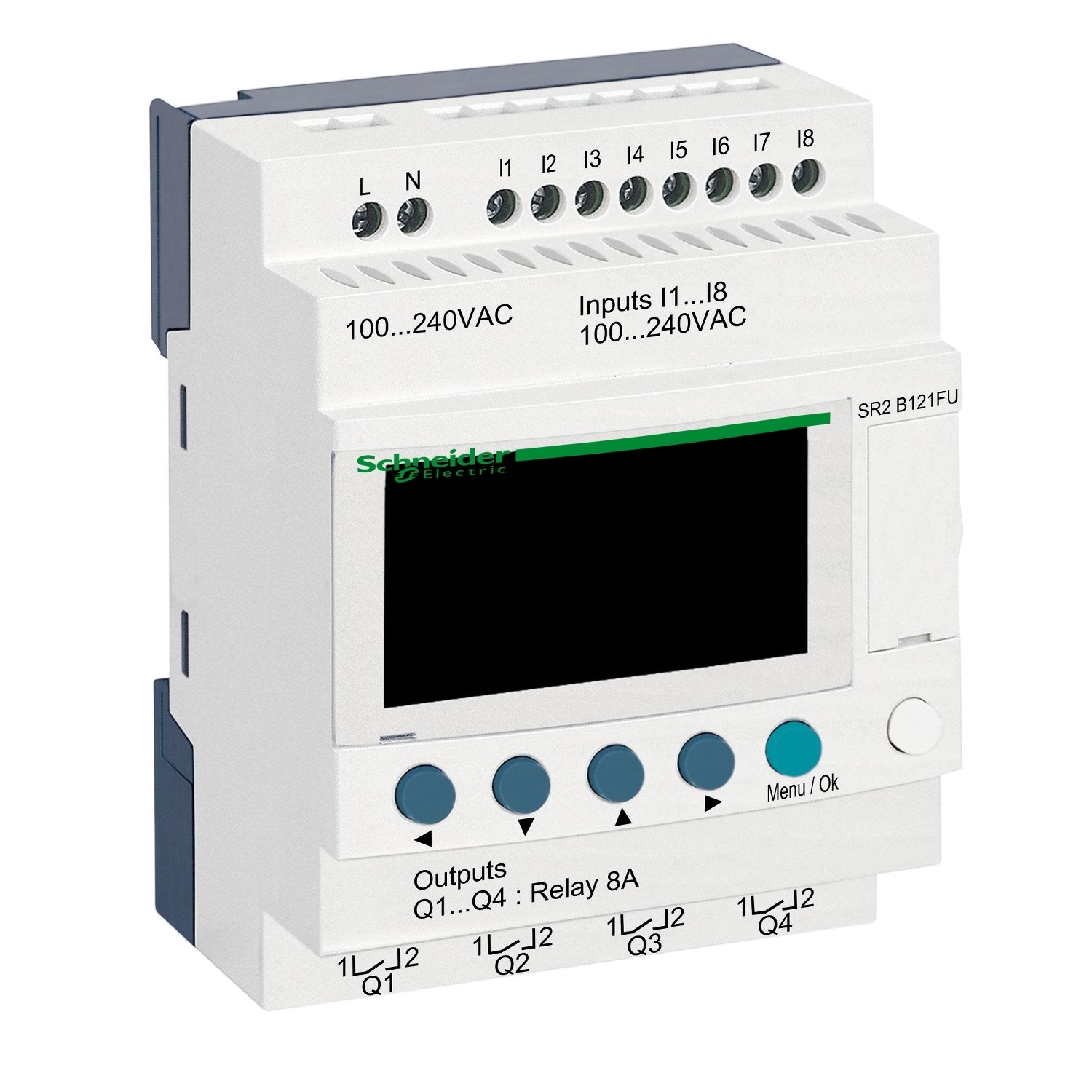

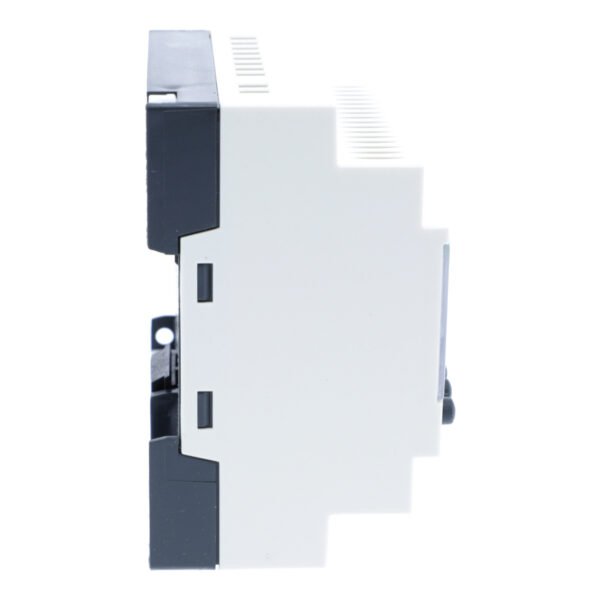

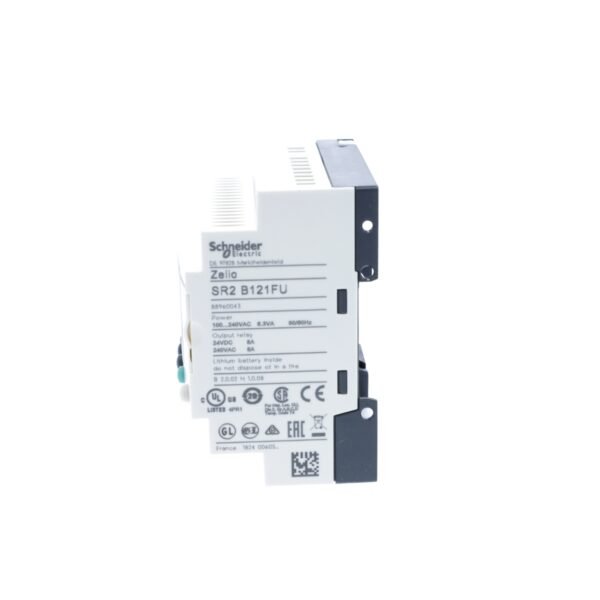

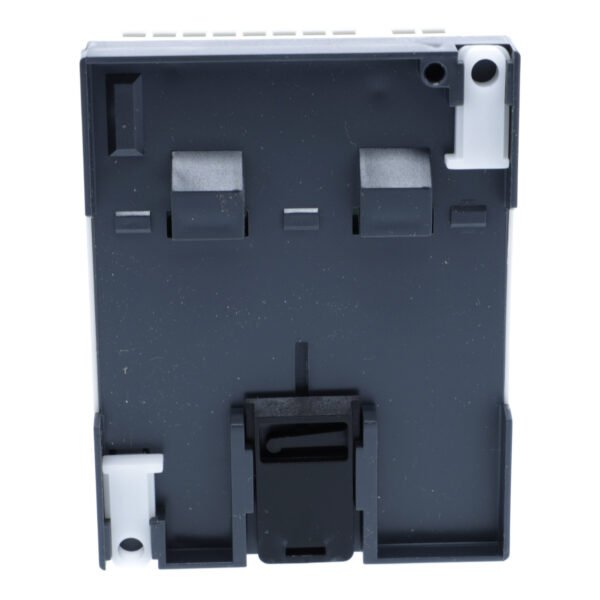

Schneider SR2B121FU | compact smart relay Zelio Logic – 12 I O – 100.240 V AC – clock – display
Schneider SR2B121FU | compact smart relay Zelio Logic – 12 I O – 100.240 V AC – clock – display
Original price was: EGP 189,964.00.EGP 104,481.00Current price is: EGP 104,481.00.
Description
Schneider SR2B121FU | compact smart relay Zelio Logic – 12 I O – 100.240 V AC – clock – display
Specifications:
-
Model: SR2B121FU
-
Series: Zelio Logic – Smart Relay
-
Power Supply: 100–240 V AC
-
I/O Configuration:
-
8 Digital Inputs
-
4 Relay Outputs
-
12 Total I/O Points
-
-
Output Type: Relay (normally open contacts)
-
Display: Integrated LCD screen with navigation keys
-
Clock: Built-in real-time clock (RTC)
-
Programming Interface: Via front panel or PC (USB/serial)
-
Mounting: DIN rail or panel mount
-
Programming Software: Zelio Soft 2 (supports Ladder and FBD)
Key Features:
-
All-in-One Compact Controller
-
Combines control logic, scheduling, and monitoring in a single, space-saving unit—perfect for standalone or small-scale automation systems.
-
-
12 I/O Channels
-
8 inputs for sensors, switches, or contact signals.
-
4 relay outputs to control loads like lights, motors, and valves (rated for switching up to 8A).
-
-
Integrated LCD Display
-
Built-in screen shows status, diagnostics, and allows manual operation. Enables local setup and testing without external devices.
-
-
Real-Time Clock
-
The internal RTC allows for scheduled operations, such as timed lighting, pump control, or heating systems.
-
-
User-Friendly Programming
-
Use Zelio Soft 2 for intuitive programming with ladder diagrams or function block diagrams. Also programmable from the front panel for quick changes.
-
-
AC Powered (100–240V)
-
Operates directly from standard AC supply—no need for external power converters.
-
-
Expandable & Modular
-
Can be expanded with additional I/O modules if your application grows, ensuring long-term flexibility.
-
-
Reliable Relay Outputs
-
Relay contacts ensure safe switching of both resistive and inductive AC loads, offering reliable performance in automation scenarios.
-
Applications:
-
Lighting Automation (e.g. store displays, timed exterior lights)
-
Irrigation Systems (e.g. garden or agricultural automation)
-
Access Control (e.g. timed gate or door opening)
-
HVAC Scheduling (fan, heater, or AC control by time)
-
Small Machine Control (e.g. conveyors, feeders, mixers)
-
Energy Management (e.g. time-based device shutdown/startup)
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Zelio Logic |
|---|---|
| Product or component type | Compact smart relay |
| Local display | With |
|---|---|
| Number or control scheme lines | 0…240 with ladder programming 0…500 with FBD programming |
| Cycle time | 6…90 ms |
| Backup time | 10 years at 25 °C |
| Clock drift | 12 min/year at 0…55 °C 6 s/month at 25 °C |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 100...240 V AC |
| Supply voltage limits | 85…264 V |
| Supply frequency | 50/60 Hz |
| Maximum supply current | 30 mA at 240 V (without extension) 80 mA at 100 V (without extension) |
| Power consumption in VA | 7 VA without extension |
| Isolation voltage | 1780 V |
| Protection type | Against inversion of terminals (control instructions not executed) |
| Discrete input number | 8 |
| Discrete input voltage | 100...240 V AC |
| Discrete input current | 0.6 mA |
| Discrete input frequency | 47...53 Hz 57...63 Hz |
| Voltage state 1 guaranteed | >= 79 V for discrete input |
| Voltage state 0 guaranteed | <= 40 V for discrete input |
| Current state 1 guaranteed | >= 0.17 mA (discrete input) |
| Current state 0 guaranteed | <= 0.5 mA (discrete input) |
| Analogue input number | 0 |
| Input impedance | 350 kOhm for discrete input |
| Number of outputs | 4 relay |
| Output voltage limits | 5...30 V DC (relay output) 24...250 V AC |
| Contacts type and composition | NO for relay output |
| Output thermal current | 8 A for all 4 outputs for relay output |
| Electrical durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1 |
| Switching capacity in mA | >= 10 mA at 12 V (relay output) |
| Operating rate in Hz | 0.1 Hz (at Ie) for relay output 10 Hz (no load) for relay output |
| Mechanical durability | 10000000 cycles for relay output |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Clock | With |
| Response time | 50 ms with ladder programming (from state 0 to state 1) for discrete input 50 ms with ladder programming (from state 1 to state 0) for discrete input 50...255 ms with FBD programming (from state 0 to state 1) for discrete input 50...255 ms with FBD programming (from state 1 to state 0) for discrete input 10 ms (from state 0 to state 1) for relay output 5 ms (from state 1 to state 0) for relay output |
| Connections - terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| Tightening torque | 0.5 N.m |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net weight | 0.25 kg |
| Immunity to microbreaks | 10 ms |
|---|---|
| Product certifications | GL GOST UL CSA C-Tick |
| Standards | IEC 61000-4-4 level 3 IEC 60068-2-27 Ea IEC 61000-4-5 IEC 61000-4-11 IEC 61000-4-12 IEC 61000-4-3 IEC 60068-2-6 Fc IEC 61000-4-2 level 3 IEC 61000-4-6 level 3 |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Pollution degree | 2 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| Relative humidity | 95 % without condensation or dripping water |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.8 cm |
| Package 1 Width | 8.8 cm |
| Package 1 Length | 10.0 cm |
| Package 1 Weight | 246.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.892 kg |
| Warranty | 18 months |
|---|
