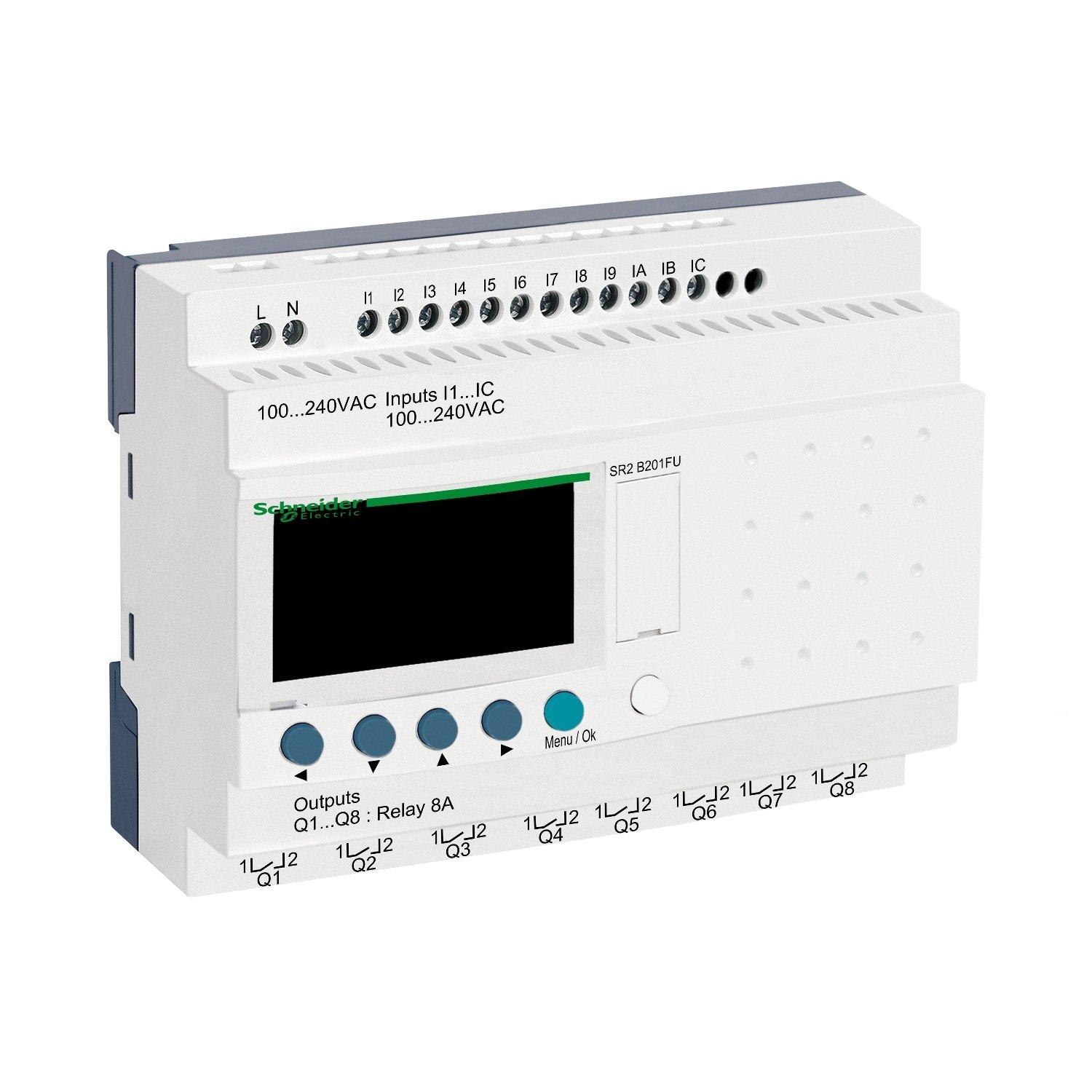

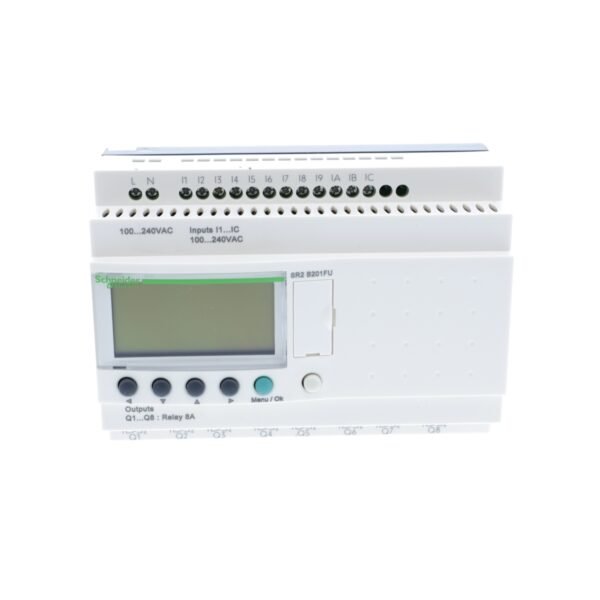

Name: Schneider SR2B201FU | compact smart relay Zelio Logic - 20 I O - 100.240 V AC - clock - display
Brand: Schneider Electric
SKU: SR2B201FU
Availability: OutOfStock

Controllers (PLC & PAC) for Industrial machines, Industrial Automation and Control, Zelio Logic

Schneider SR2B201FU | compact smart relay Zelio Logic – 20 I O – 100.240 V AC – clock – display

Schneider SR2B201FU | compact smart relay Zelio Logic – 20 I O – 100.240 V AC – clock – display

Compare

Product Code:

SR2B201FU

Brand: Schneider Electric

Schneider SR2B201FU | compact smart relay Zelio Logic – 20 I O – 100.240 V AC – clock – display

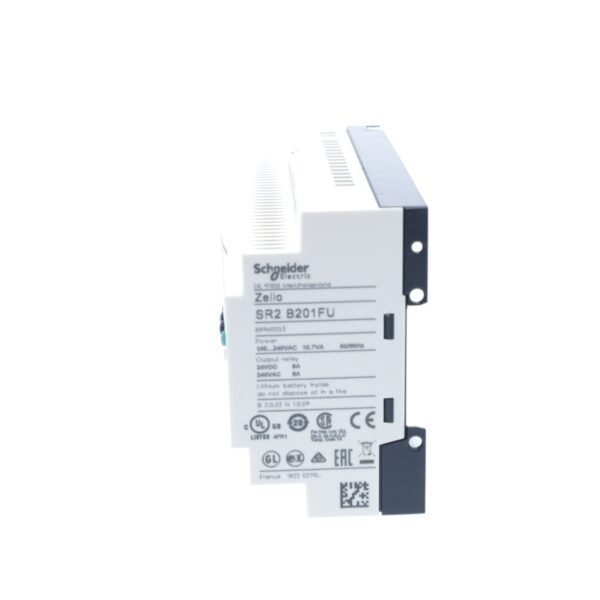

Technical Specifications

Model Number: SR2B201FU
Series: Zelio Logic (SR2)
Power Supply: 100-240V AC
Number of Inputs/Outputs (I/O): 20 (12 inputs, 8 outputs)
Input Type: Discrete (Digital) Inputs
Output Type: Relay Outputs
Display Type: LCD Screen (for programming and monitoring)
Clock/Timer Function: Yes (Real-Time Clock – RTC)
Programming Software: Zelio Soft 2
Communication Port: Optional expansion modules available

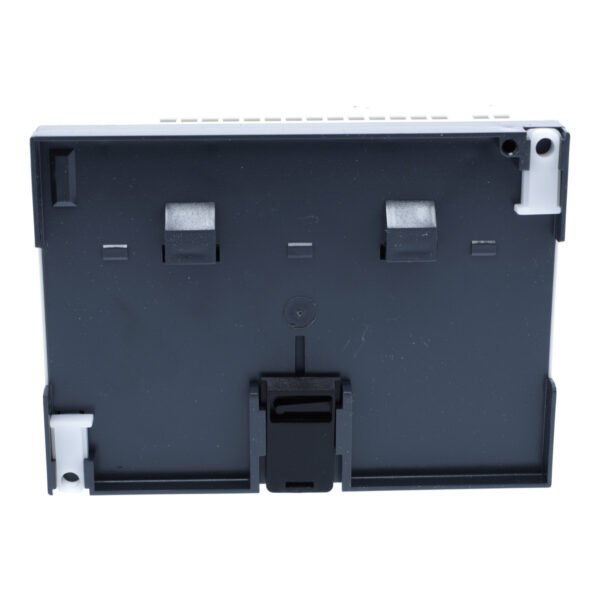

Mounting Type: DIN Rail or Panel Mount
Operating Temperature: -20°C to +55°C
Protection Rating: IP20 (enclosure required for higher protection)
Certifications & Compliance: CE, UL, IEC 61131-2 compliant

Key Features

Compact and Flexible Smart Relay
- Designed for simple automation tasks with expandable capabilities.
- Suitable for standalone control applications or integration with larger systems.
20 I/O for Enhanced Control Options
- 12 digital inputs for receiving signals from sensors and switches.
- 8 relay outputs for controlling external devices such as motors, lights, and alarms.
Built-in LCD Display for Monitoring and Configuration
- Allows users to view system status, adjust settings, and troubleshoot easily.
Real-Time Clock (RTC) for Scheduled Operations
- Enables timed control for processes like lighting, irrigation, and HVAC automation.
User-Friendly Programming with Zelio Soft 2
- Supports ladder logic (LD) and function block diagram (FBD) programming, making it accessible to both beginners and advanced users.
Versatile Power Supply (100-240V AC)
- Compatible with standard industrial and commercial power systems, ensuring easy installation.
Expandable with Additional Modules
- Can be expanded with communication, analog input, and additional I/O modules for increased functionality.
Reliable and Durable for Industrial Environments
- Operates efficiently in harsh conditions, ensuring long-term performance.

Applications

Industrial Automation: Used in small machine control, conveyor systems, and process monitoring.
Building Management Systems (BMS): Controls lighting, ventilation, heating, and security systems.
Agriculture & Irrigation Systems: Automates pumping schedules and irrigation controls.
HVAC Control: Manages heating, ventilation, and air conditioning systems.
Smart Home Applications: Enables automated control of lighting, alarms, and other home automation systems.

brands	Schneider Electric

Main
Range of product	Zelio Logic
Product or component type	Compact smart relay

Complementary
Local display	With
Number or control scheme lines	0…240 with ladder programming 0…500 with FBD programming
Cycle time	6…90 ms
Backup time	10 years at 25 °C
Clock drift	12 min/year at 0…55 °C 6 s/month at 25 °C
Checks	Program memory on each power up
[Us] rated supply voltage	100...240 V AC
Supply voltage limits	85…264 V
Supply frequency	50/60 Hz
Maximum supply current	100 mA at 100 V (without extension) 50 mA at 240 V (without extension)
Power consumption in VA	11 VA without extension
Isolation voltage	1780 V
Protection type	Against inversion of terminals (control instructions not executed)
Discrete input number	12
Discrete input voltage	100...240 V AC
Discrete input current	0.6 mA
Discrete input frequency	57...63 Hz 47...53 Hz
Voltage state 1 guaranteed	>= 79 V for discrete input
Voltage state 0 guaranteed	<= 40 V for discrete input
Current state 1 guaranteed	>= 0.17 mA (discrete input)
Current state 0 guaranteed	<= 0.5 mA (discrete input)
Analogue input number	0
Input impedance	350 kOhm for discrete input
Number of outputs	8 relay
Output voltage limits	5...30 V DC (relay output) 24...250 V AC
Contacts type and composition	NO for relay output
Output thermal current	8 A for all 8 outputs for relay output
Electrical durability	AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1
Switching capacity in mA	>= 10 mA at 12 V (relay output)
Operating rate in Hz	0.1 Hz (at Ie) for relay output 10 Hz (no load) for relay output
Mechanical durability	10000000 cycles for relay output
[Uimp] rated impulse withstand voltage	4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Clock	With
Response time	50 ms with ladder programming (from state 0 to state 1) for discrete input 50 ms with ladder programming (from state 1 to state 0) for discrete input 50...255 ms with FBD programming (from state 0 to state 1) for discrete input 50...255 ms with FBD programming (from state 1 to state 0) for discrete input 10 ms (from state 0 to state 1) for relay output 5 ms (from state 1 to state 0) for relay output
Connections - terminals	Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end
Tightening torque	0.5 N.m
Overvoltage category	III conforming to IEC 60664-1
Net weight	0.38 kg

Environment
Immunity to microbreaks	1 ms
Product certifications	C-Tick CSA GL GOST UL
Standards	IEC 61000-4-6 level 3 IEC 61000-4-11 IEC 60068-2-27 Ea IEC 61000-4-5 IEC 60068-2-6 Fc IEC 61000-4-12 IEC 61000-4-2 level 3 IEC 61000-4-3 IEC 61000-4-4 level 3
IP degree of protection	IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529
Environmental characteristic	EMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2
Disturbance radiated/conducted	Class B conforming to EN 55022-11 group 1
Pollution degree	2 conforming to IEC 61131-2
Ambient air temperature for operation	-20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
Ambient air temperature for storage	-40…70 °C
Operating altitude	2000 m
Maximum altitude transport	3048 m
Relative humidity	95 % without condensation or dripping water

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.8 cm
Package 1 Width	10.0 cm
Package 1 Length	13.5 cm
Package 1 Weight	368.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	20
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	7.846 kg

Contractual warranty
Warranty	18 months

Data sheet

https://www.se.com/us/en/product/download-pdf/SR2B201FU?filename=Schneider+Electric_Zelio-Logic_SR2B201FU.pdf
