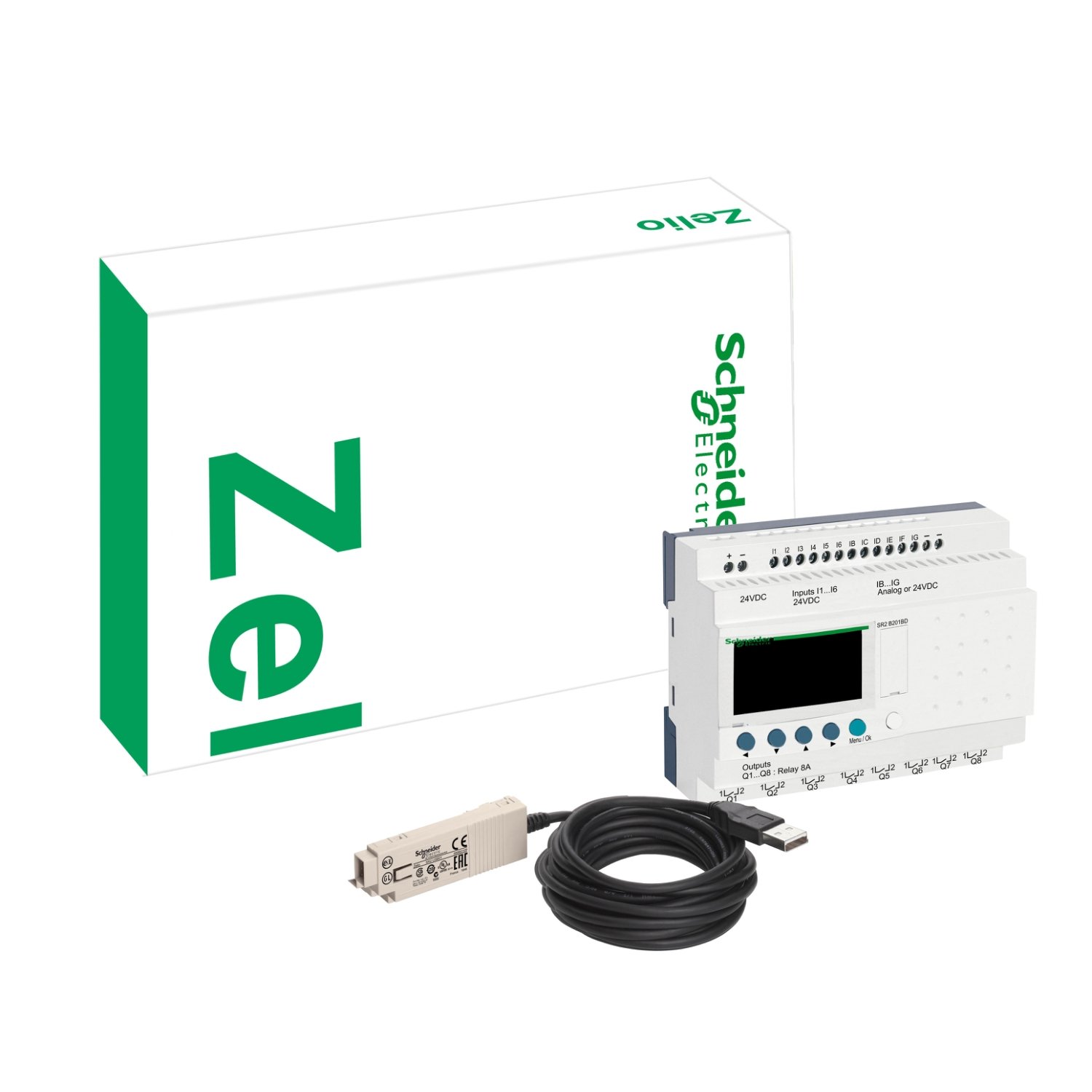

Schneider SR2PACKFU | compact smart relay Zelio Logic – “discovery” pack – 12 I O – 100..240V AC
Schneider SR2PACKFU | compact smart relay Zelio Logic – “discovery” pack – 12 I O – 100..240V AC
Original price was: EGP 251,975.00.EGP 138,586.00Current price is: EGP 138,586.00.
Description
Schneider SR2PACKFU | compact smart relay Zelio Logic – “discovery” pack – 12 I O – 100..240V AC
Technical Specifications
-
Model: SR2PACKFU
-
Device Type: Compact Smart Relay (Starter Pack)
-
Number of I/Os: 12 (Digital Inputs & Outputs)
-
Operating Voltage: 100-240V AC
-
Integrated Clock: No
-
Display: Yes, built-in LCD screen
-
Programming Interface: Compatible with Zelio Soft 2 software
-
Communication: Supports expansion modules for additional I/Os
-
Mounting: DIN rail or panel mounting
-
Protection Rating: IP20 (for indoor industrial environments)
-
Operating Temperature Range: -20°C to 55°C
Key Features
1. Complete Starter Pack for Quick Automation
-
Includes everything needed to start programming and testing smart relay applications.
-
Pre-configured functions allow for easy setup without advanced programming knowledge.
2. Versatile Input/Output Configuration
-
12 I/O ports for connecting switches, sensors, and actuators.
-
Supports discrete input and output control for various automation tasks.
3. Easy-to-Use Programming with Zelio Soft 2
-
Supports Ladder Diagram (LD) and Function Block Diagram (FBD) programming.
-
User-friendly interface allows for quick logic setup and troubleshooting.
4. Reliable Performance & Expandability
-
100-240V AC operation, making it compatible with standard electrical systems.
-
Can be expanded with additional I/O modules for more complex automation.
5. Compact & Durable Design
-
Small form factor for easy integration into control panels.
-
LCD display for real-time monitoring and configuration.
Applications & Use Cases
The Schneider SR2PACKFU is perfect for small to medium-scale automation, including:
-
Industrial Process Control
-
Automating simple machine operations and production processes.
-
-
Building Automation
-
Controlling lighting, HVAC, and security systems.
-
-
Motor & Pump Control
-
Managing pumps, fans, and conveyors for optimized operation.
-
-
Energy Management
-
Scheduling equipment operation to reduce energy consumption.
-
-
Smart Agriculture & Irrigation
-
Automating irrigation systems and environmental monitoring.
-
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Zelio Logic |
|---|---|
| Product or component type | Compact discovery packs |
| Discrete input number | 8 |
| Number of outputs | 4 relay |
| Kit composition | SR2B121FU Cable PC SR2USB01 for connection to PC |
|---|---|
| Input/output number | 12 |
| Local display | With |
| Number or control scheme lines | 120 with ladder programming 0…200 with FBD programming |
| Cycle time | 6…90 ms |
| Backup time | 10 years at 25 °C |
| Clock drift | 12 min/year at 0…55 °C 6 s/month at 25 °C |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 100...240 V |
| Supply voltage limits | 85…264 V |
| Supply frequency | 50/60 Hz |
| Maximum supply current | 30 mA at 240 V (without extension) 80 mA at 100 V (without extension) |
| Power consumption in VA | 7 VA without extension |
| Isolation voltage | 1780 V |
| Protection type | Against inversion of terminals (control instructions not executed) |
| Discrete input voltage | 100...240 V AC |
| Discrete input current | 0.6 mA |
| Discrete input frequency | 47...53 Hz 57...63 Hz |
| Voltage state 1 guaranteed | >= 79 V for discrete input |
| Voltage state 0 guaranteed | <= 40 V for discrete input |
| Current state 1 guaranteed | >= 0.17 mA (discrete input) |
| Current state 0 guaranteed | <= 0.5 mA (discrete input) |
| Input impedance | 350 kOhm for discrete input |
| Output voltage limits | 5...30 V DC (relay output) 24...250 V AC |
| Contacts type and composition | NO for relay output |
| Output thermal current | 8 A for all 4 outputs for relay output |
| Electrical durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1 |
| Switching capacity in mA | >= 10 mA at 12 V (relay output) |
| Operating rate in Hz | 0.1 Hz (at Ie) for relay output 10 Hz (no load) for relay output |
| Mechanical durability | 10000000 cycles for relay output |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Clock | With |
| Response time | 50 ms with ladder programming (from state 0 to state 1) for discrete input 50 ms with ladder programming (from state 1 to state 0) for discrete input 50...255 ms with FBD programming (from state 0 to state 1) for discrete input 50...255 ms with FBD programming (from state 1 to state 0) for discrete input 10 ms (from state 0 to state 1) for relay output 5 ms (from state 1 to state 0) for relay output |
| Connections - terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| Tightening torque | 0.5 N.m |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net weight | 0.7 kg |
| Immunity to microbreaks | 10 ms |
|---|---|
| Product certifications | GOST CSA UL C-Tick GL |
| Standards | IEC 61000-4-2 level 3 IEC 61000-4-12 IEC 61000-4-11 IEC 61000-4-3 IEC 60068-2-6 Fc IEC 61000-4-6 level 3 IEC 60068-2-27 Ea IEC 61000-4-5 IEC 61000-4-4 level 3 |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Pollution degree | 2 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| Relative humidity | 95 % without condensation or dripping water |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 15.500 cm |
| Package 1 Length | 23.500 cm |
| Package 1 Weight | 402.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.461 kg |
| Warranty | 18 months |
|---|
