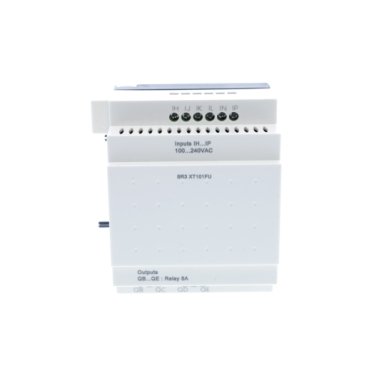

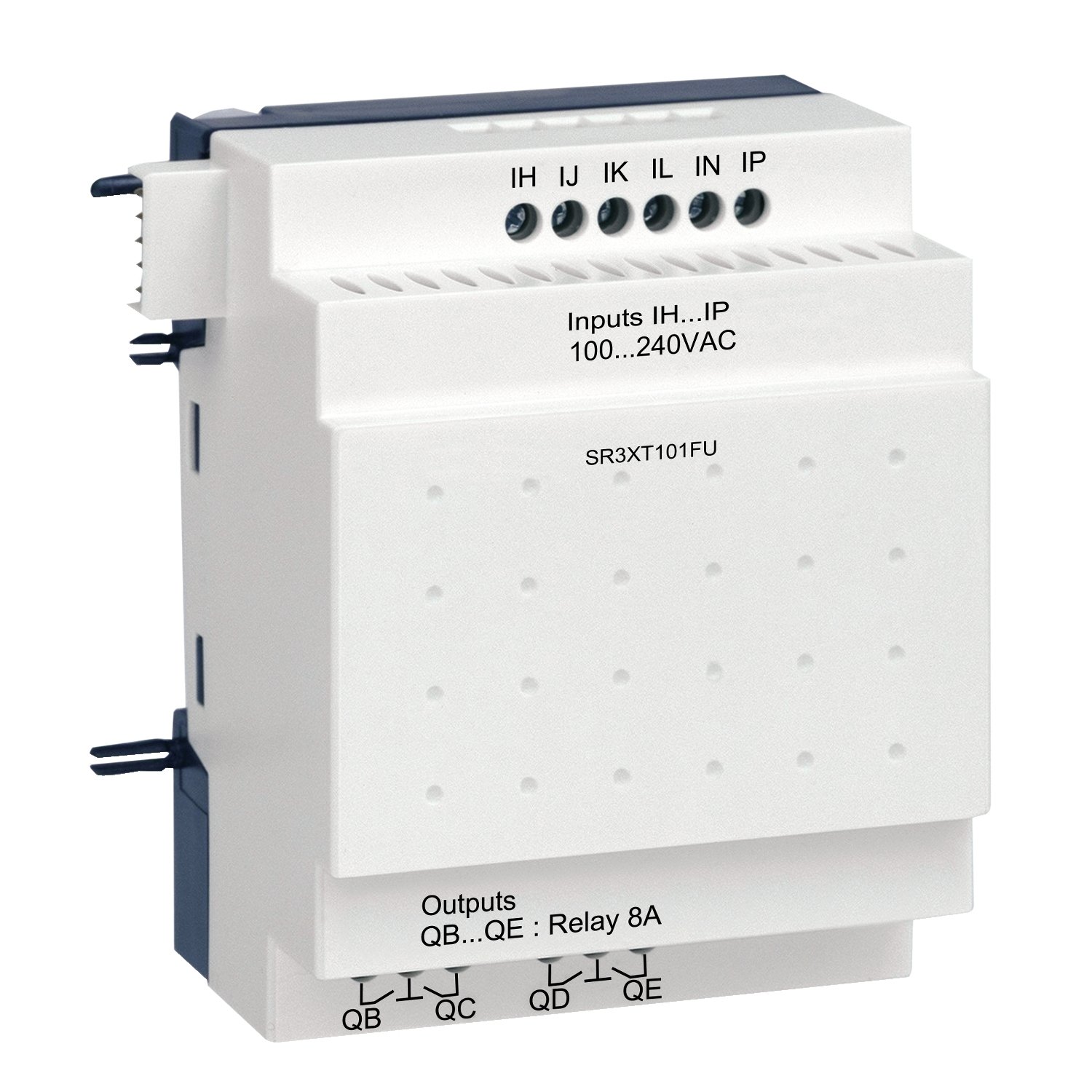

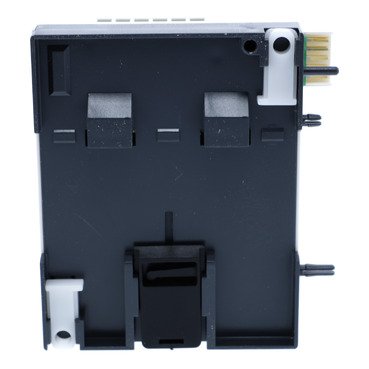

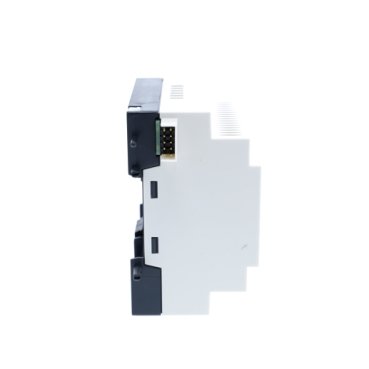

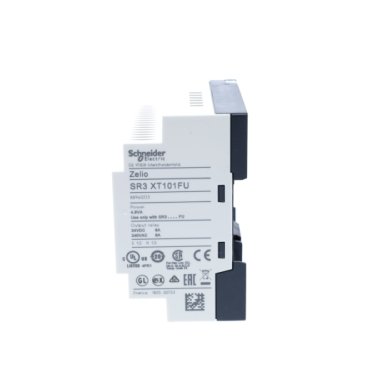

Schneider SR3XT101FU | discrete I/O extension module – 10 I O – 100..240 V AC – for Zelio Logic

Technical Specifications:

1. Number of I/O Points: The SR3XT101FU extension module provides 10 I/O points, which can be configured for a mix of digital inputs and digital outputs, depending on the needs of the application.

2. Power Supply: The module operates on a wide voltage range of 100 to 240 V AC, making it compatible with standard industrial power supplies. This flexibility allows it to be used in a variety of environments and applications.

3. Input/Output Type:

   • Digital Inputs: The module includes digital inputs for receiving on/off signals from devices like switches, sensors, or limit switches.

   • Digital Outputs: The digital outputs are typically used for controlling devices such as relays, lights, motors, or alarms. These outputs allow the extension module to interface with a variety of control devices.

4. Modular Design: The SR3XT101FU is a modular extension designed to connect easily with Zelio Logic smart relays. Its modularity ensures that it can be added to existing Zelio Logic systems without requiring major changes or reconfiguration.

5. Integration with Zelio Logic: The module seamlessly integrates with Zelio Logic smart relays, using the same Zelio Soft programming environment. This ensures smooth communication and configuration with other modules in the Zelio Logic system.

6. Industrial Application: Designed for industrial environments, the SR3XT101FU module is built to withstand the harsh conditions often found in factory floors, control rooms, or process control systems.

Features:

1. Wide Voltage Range: The 100 to 240 V AC power supply range ensures that the SR3XT101FU can operate in a wide variety of industrial environments, making it compatible with most common AC power sources.

2. Flexible I/O Configuration: The module’s 10 I/O points can be configured to match the specific needs of the application. It can handle a mix of digital inputs and outputs, providing versatile control options for various devices.

3. Modular Expansion: The SR3XT101FU can be easily added to a Zelio Logic system, allowing users to scale their automation projects as their needs grow. Additional I/O modules can be connected to expand the system further.

4. Seamless Integration: The extension module integrates directly with Zelio Logic smart relays, and the system is programmed using the Zelio Soft software. This allows for quick and easy setup, as well as centralized control and monitoring through the same platform.

5. Cost-Effective Solution: The SR3XT101FU provides a cost-effective way to add more I/O points to an existing Zelio Logic system, offering users additional control and monitoring options without the need to replace their current relay or controller.

6. Compact and Space-Efficient: The extension module is compact, making it ideal for applications where space is limited. It can be easily mounted in control panels or other tight spaces.

7. Reliability: Designed for industrial reliability, the SR3XT101FU can operate in environments that require long-term stability and consistent performance, ensuring that automation tasks are carried out without interruption.

Applications:

The Schneider SR3XT101FU extension module is suitable for a variety of applications where additional I/O points are needed, including:

• Machine Control: Expanding the I/O capacity for machines and automated equipment, allowing for more sensors, actuators, and control devices.

• Building Automation: Adding I/O points for controlling lighting, HVAC, or security systems in buildings, making it ideal for building management systems.

• Process Control: Increasing the number of inputs and outputs for industrial process control, such as monitoring temperature, pressure, or flow sensors.

• Factory Automation: Enhancing control systems in factories by adding I/O modules for managing assembly lines, conveyors, or other production equipment.

• Control Systems: Ideal for general automation systems where more digital I/O are required to manage sensors, switches, or relays
