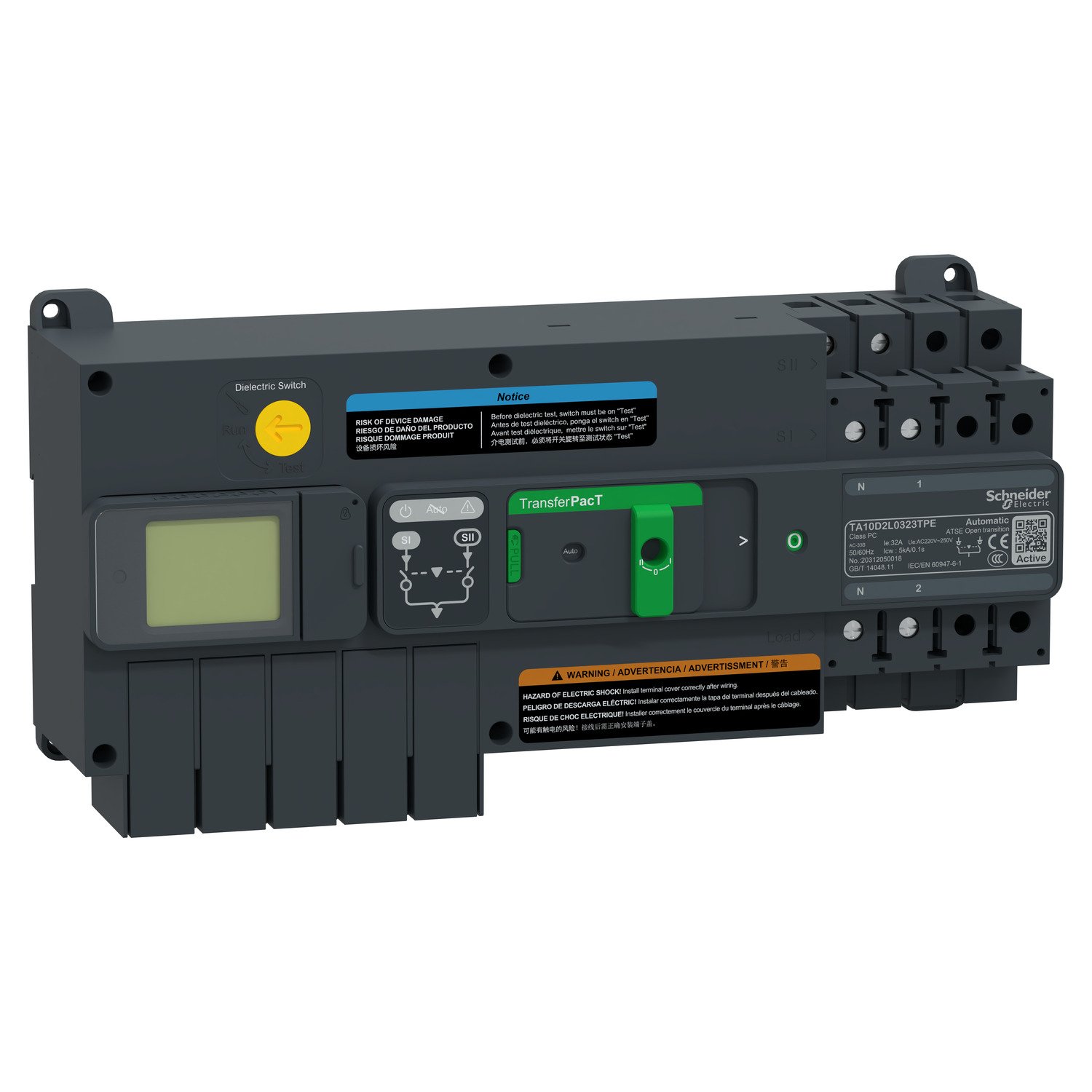

Schneider TA10D2L0323TPE | active automatic transfer switch, TransferPacT Active automatic, 32A, 2P, LCD, frame 100A

Technical Specifications Schneider TA10D2L0323TPE

• Manufacturer: Schneider Electric

• Model Number: TA10D2L0323TPE

• Series: TransferPacT Active Automatic

• Rated Current (In): 32 Amps

• Rated Voltage (Ue): 400V AC

• Number of Poles: 2 Poles (Line and Neutral or Phase-to-Phase)

• Frame Size: 100A

• Frequency: 50/60 Hz

• Switching Type: Active automatic transfer

• Control Interface: Integrated LCD screen

• Operation Mode: Automatic with manual override

• Mounting Style: DIN rail or panel mounting

• Standards Compliance: IEC 60947-6-1

• Display Functions: Source status, load status, alarms, event logs

• Operating Temperature Range: -5°C to +40°C

• Communication (optional): Modbus RTU, Ethernet (via add-on modules)

• Protection Degree: IP30 (standard), upgradable with enclosure

Key Features

1. Active Automatic Switching
   Continuously monitors both power sources and transfers load automatically based on pre-set voltage, frequency, or phase conditions.

2. 2-Pole Configuration (2P)
   Suitable for single-phase systems or phase-to-phase applications where neutral switching is not required.

3. LCD Display Interface
   Built-in digital screen provides real-time status, diagnostics, event history, and basic configuration options for user-friendly operation.

4. Compact Design with 100A Frame
   Though rated for 32A, the 100A frame allows flexibility for future upgrades and ensures better thermal performance.

5. Safe Manual Override
   Includes provisions for manual control in case of system override or maintenance procedures.

6. Integrated Alarming and Diagnostics
   Monitors key parameters and provides alarms for under/over voltage, source failure, and other common fault conditions.

7. Flexible Mounting and Wiring Options
   Designed for ease of installation in control panels, distribution boards, or standalone enclosures.

Applications

• Residential Power Systems
  Enables safe switching between grid and generator in homes and villas with critical loads like HVAC and security systems.

• Small Commercial Units
  Ideal for retail shops, cafes, and offices needing uninterrupted service for lighting, POS systems, or communications.

• Backup for Telecom Equipment
  Ensures continuous power to routers, switches, and base stations in small-scale telecom operations.

• Security and Monitoring Systems
  Powers CCTV, alarms, and access control systems with fail-safe switching between main and backup power.

• Medical Clinics or Labs
  Supports essential devices such as refrigerators, diagnostic tools, and lighting in outpatient facilities.
