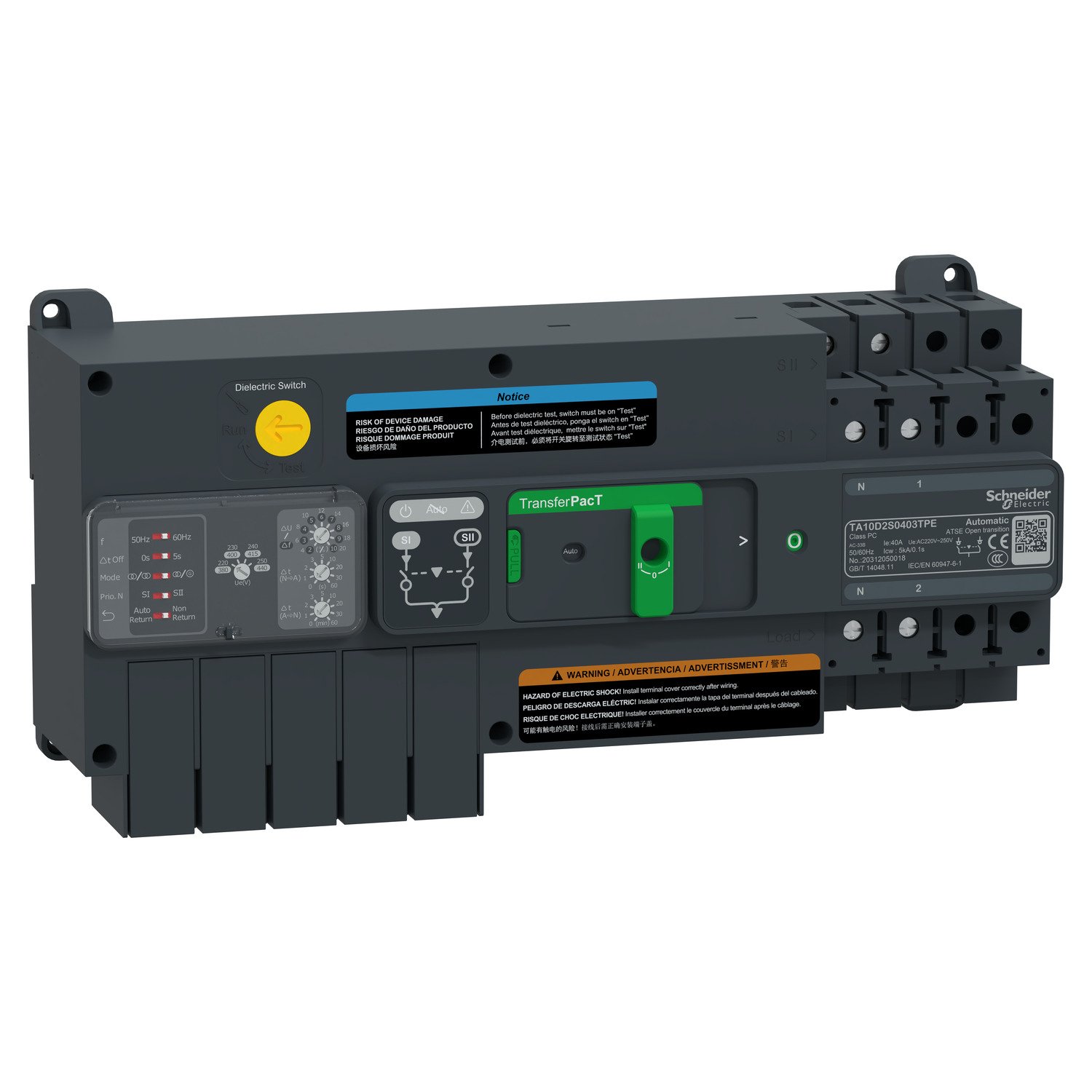

Schneider TA10D2S0403TPE | automatic transfer switch, TransferPacT automatic, 40A, 2P, rotary, frame 100A

Technical Specifications:

• Product Type: Automatic Transfer Switch (ATS)

• Series: TransferPacT

• Model: TA10D2S0403TPE

• Rated Current: 40 Amps

• Number of Poles: 2 Poles (2P), suitable for single-phase applications.

• Voltage: Typically used for 230V systems (specific voltage may depend on installation requirements).

• Frame Size: 100A, offering flexibility for future power expansion.

• Switching Mechanism: Rotary switch for smooth and reliable transfer of power.

• Switch Type: Automatic Transfer Switch (ATS) with automatic source switching.

• Control Interface: Easy-to-operate controls for switching and monitoring the ATS.

• Protection: Equipped with essential protection features like overload protection and short-circuit protection.

. Features:

• 40A Current Rating: With a 40A rating, the TA10D2S0403TPE is ideal for small to medium-scale installations, providing reliable power transfer for residential or light commercial systems.

• 2-Pole (2P) Configuration: Designed for single-phase power systems, the 2-pole configuration ensures optimal distribution of power in systems typically operating at 230V.

• Rotary Switch: The rotary switch provides smooth, dependable operation, ensuring that the transfer between power sources is seamless and efficient.

• Automatic Switching: The automatic transfer switch ensures that in case of a failure or interruption in the primary power source, the system will automatically switch to the backup source, minimizing downtime and maintaining power continuity.

• 100A Frame Size: The 100A frame offers flexibility, allowing the switch to handle future load increases, making it suitable for scalable applications.

• Protection Features: Includes overload protection, short-circuit protection, and other safeguards to ensure the safe operation of the system, preventing damage to electrical circuits and devices.

• Compact and Efficient Design: The TA10D2S0403TPE is designed to be compact, allowing easy installation in tight spaces while providing reliable power management.

. Applications:

• Residential Use: The TA10D2S0403TPE is ideal for homes or small residential buildings where reliable power transfer is needed for backup or dual-source systems.

• Small Commercial Establishments: This ATS is well-suited for small offices, retail shops, or restaurants, ensuring that essential systems such as lighting, HVAC, and point-of-sale systems continue to operate during power outages.

• Backup Power Systems: The automatic transfer switch is commonly used in backup power systems, ensuring that critical systems such as computers, servers, and small equipment remain powered during power disruptions.

• Light Industrial Applications: The TA10D2S0403TPE can also be used in light industrial applications where low to moderate power demands exist, such as workshops or small manufacturing plants, ensuring continuous operation of machinery and essential equipment.

• Energy and Utilities: It can be employed in small utility installations where an uninterrupted power supply is necessary for monitoring and controlling electrical systems, especially in remote or critical locations.
