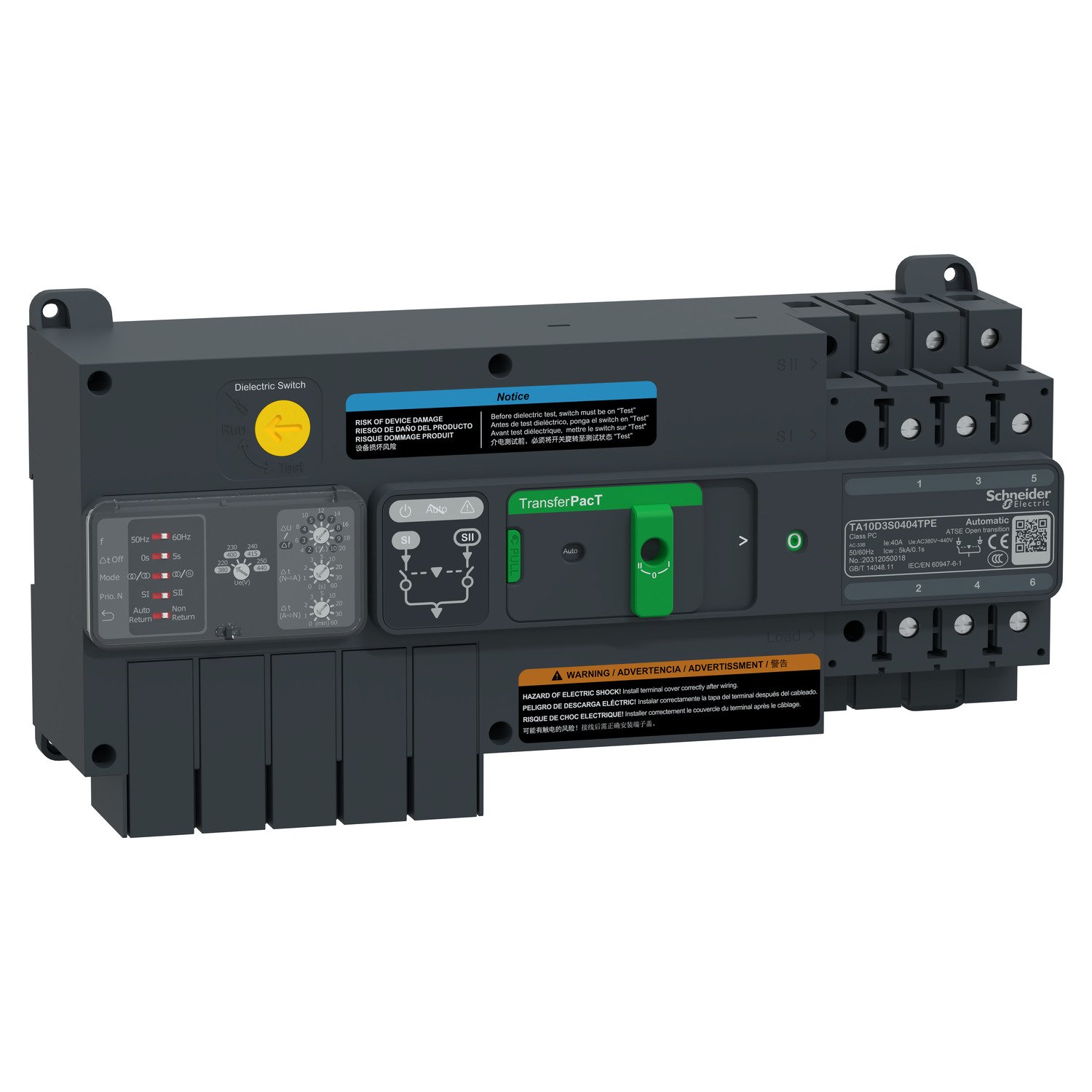

Schneider TA10D3S0404TPE | automatic transfer switch, TransferPacT automatic, 40A, 3P, rotary, frame 100A
Schneider TA10D3S0404TPE | automatic transfer switch, TransferPacT automatic, 40A, 3P, rotary, frame 100A
Description
Schneider TA10D3S0404TPE | automatic transfer switch, TransferPacT automatic, 40A, 3P, rotary, frame 100A
ntroduction:
In critical power systems where continuous energy supply is non-negotiable, an Automatic Transfer Switch (ATS) plays a key role. Schneider Electric, a global leader in energy management, offers the TA10D3S0404TPE model as part of its high-performance TransferPacT Automatic series. This device is tailored for three-phase applications with a moderate current requirement, combining reliability, efficiency, and ease of installation.
Product Description:
The TA10D3S0404TPE is a 3-pole automatic transfer switch with a rated current of 40 amperes. It features a rotary handle for manual operation in addition to its automatic switching function. Built within a 100A frame, this switch offers strong mechanical durability while supporting low to medium power applications. It is designed for seamless integration into electrical distribution systems requiring automated source switching.
Technical Specifications:
-
Model: TA10D3S0404TPE
-
Type: Automatic Transfer Switch (ATS)
-
Rated Current: 40A
-
Number of Poles: 3P (Three-phase)
-
Operating Mechanism: Rotary handle with automatic switching
-
Product Series: TransferPacT Automatic
-
Frame Size: 100A
-
Application Voltage: Low voltage (LV) systems
-
Installation: Panel-mounted (suitable for compact switchboards)
Key Features:
The Schneider TA10D3S0404TPE ensures automatic and reliable switching between main and backup power sources without human intervention. In the event of a power failure, it quickly transfers the load to the alternative source, ensuring minimal disruption. It also provides a manual rotary handle for added flexibility during maintenance or manual override scenarios.
Its inclusion in the TransferPacT series guarantees enhanced safety, consistent performance, and compliance with international electrical standards. With a compact, space-saving design, the switch is ideal for commercial and industrial environments with limited installation space.
Applications:
The TA10D3S0404TPE is widely used in:
-
Commercial buildings with three-phase loads
-
Small to medium-sized industrial facilities
-
Backup power systems in schools, clinics, and offices
-
Electrical panels requiring medium current ratings
-
Residential buildings with standby generator systems
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | TransferPacT |
|---|---|
| product or component type | Automatic transfer switch |
| Device application | Change source of supply |
| poles description | 3P |
| Network type | AC |
| Network frequency | 50/60 Hz |
| downside connection | Screwed |
| mounting mode | Fixed |
| Upside connection | Screwed |
| Contact position indicator | Yes |
| [Icm] rated short-circuit making capacity | 15 kA switch-disconnector alone 400 V AC at 50 Hz 75 kA with upstream protection circuit breaker 400 V AC at 50 Hz |
| Suitability for isolation | Yes |
| transfer switch class | PC |
|---|---|
| Number of contact position | 3 |
| Signal contacts composition | 1 NO + 2 NC 1 NC + 2 NO 2 NO |
| Utilization category | AC-33B |
| [Ue] rated operational voltage | 400 V AC 50/60 Hz |
| Control type | Rotary knob Selector switch |
| Operating mode | Automatic Manual |
| mounting support | Plate DIN rail |
| Locking options description | Padlock in OFF position |
| Rated duty | Uninterrupted |
| [Ui] rated insulation voltage | Switch: 800 V Controller: 500 V |
| [Uimp] rated impulse withstand voltage | Switch: 6 kV Controller: 6 kV |
| [Ie] rated operational current | 40 A |
| mechanical interlocking | With mechanical interlocking |
| Mechanical durability | 8000 cycles |
| Connection pitch | 18 mm |
| [Icw] rated short-time withstand current | 5 kA during 0.1 s |
| Height | 145 mm |
| Width | 306 mm |
| Depth | 94 mm |
| net weight | 3.4 kg |
| [Ith] conventional free air thermal current | 40 A at 60 °C |
| Standards | IEC 60947-6-1 |
|---|---|
| Product certifications | CE CB CCC |
| IP degree of protection | Front face: IP40 auto mode Inside the enclosure: IP20 manual mode |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -35…85 °C |
| Pollution degree | 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.6 cm |
| Package 1 Width | 21.1 cm |
| Package 1 Length | 36.7 cm |
| Package 1 Weight | 3.3 kg |
