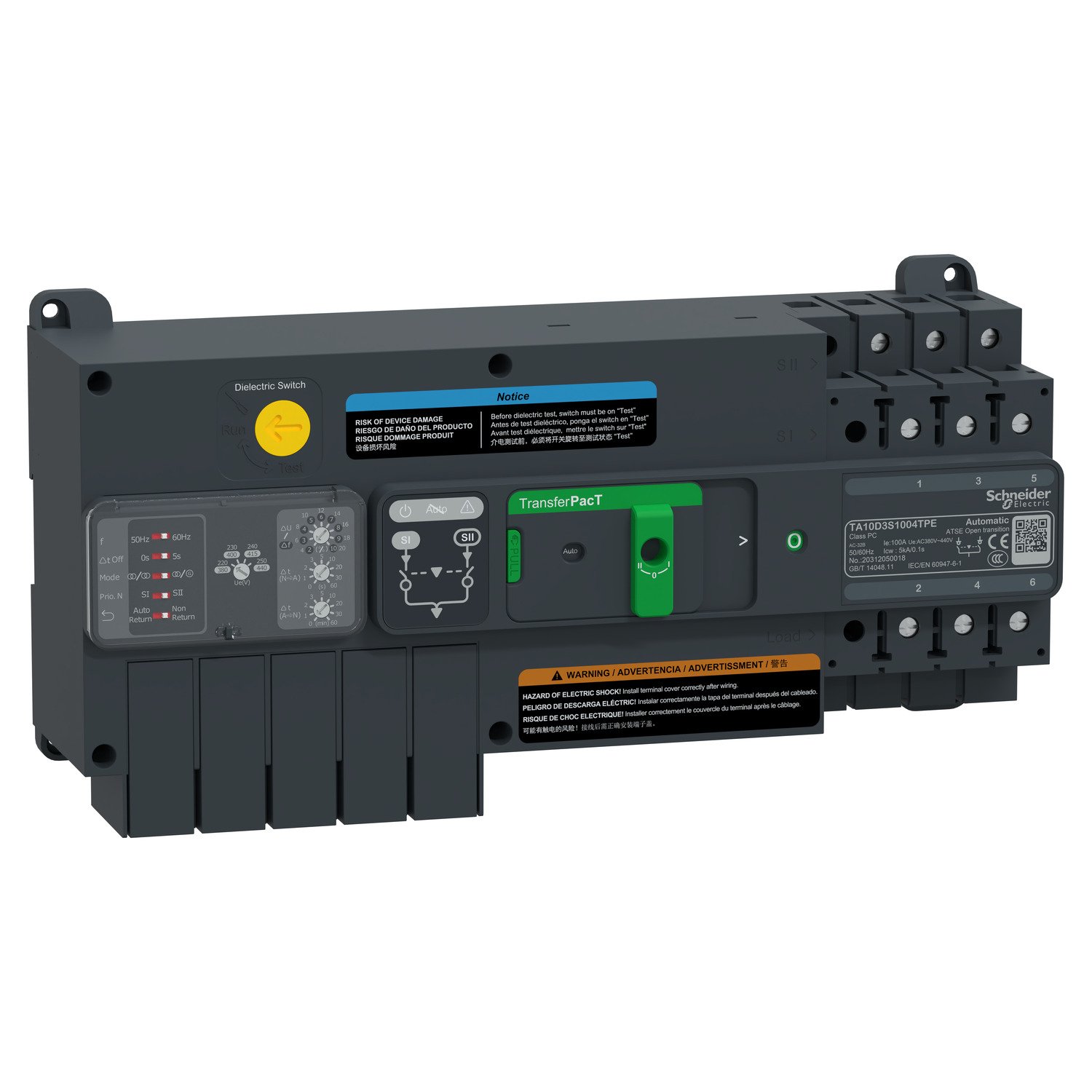

Schneider TA10D3S1004TPE | automatic transfer switch, TransferPacT automatic, 100A, 3P, rotary, frame 100A

1. Specifications:

   • Model: Schneider TA10D3S1004TPE

   • Current Rating: 100A

   • Poles: 3P (3 Poles)

   • Frame Size: 100A

   • Switch Type: Rotary

   • Voltage Rating: 380V to 480V

   • Frequency: 50/60 Hz

   • Enclosure Type: Indoor

   • Dimensions: Compact design with W306 x L145 x H94.5 mm

   • Weight: Approximately 2.5 kg

   Features:

   1. Automatic Switching: This ATS automatically transfers the load between the primary and backup power sources, ensuring minimal downtime during power interruptions.

   2. Compact Design: Its space-saving, compact frame allows for easy integration into existing electrical systems without taking up much room.

   3. Rotary Switch Mechanism: Equipped with a reliable rotary switch, the TA10D3S1004TPE offers smooth and precise operation in transferring the power supply.

   4. Durable Construction: Made from high-quality materials, this transfer switch is built to last and withstand harsh operating conditions.

   5. Enhanced Safety: It includes overcurrent and overload protection to safeguard connected electrical equipment from power surges or faults.

   6. Compliance with Standards: The TA10D3S1004TPE complies with international safety standards such as IEC 60947-6-1, ensuring reliable and safe operation.

   Applications:

   1. Industrial Facilities: The TA10D3S1004TPE is ideal for ensuring a continuous power supply to industrial machinery and equipment, reducing downtime and preventing operational losses.

   2. Commercial Buildings: This ATS can be used in office buildings, malls, or other commercial environments where a steady power supply is crucial to business operations.

   3. Data Centers: It is perfect for use in data centers, where uninterrupted power is essential for server uptime and data security.

   4. Healthcare Facilities: In hospitals and clinics, it ensures that critical medical equipment remains operational during power disruptions.

   5. Residential Use: The switch can be used in residential applications, particularly for homes with backup generators, to provide automatic switching between grid power and backup power.
