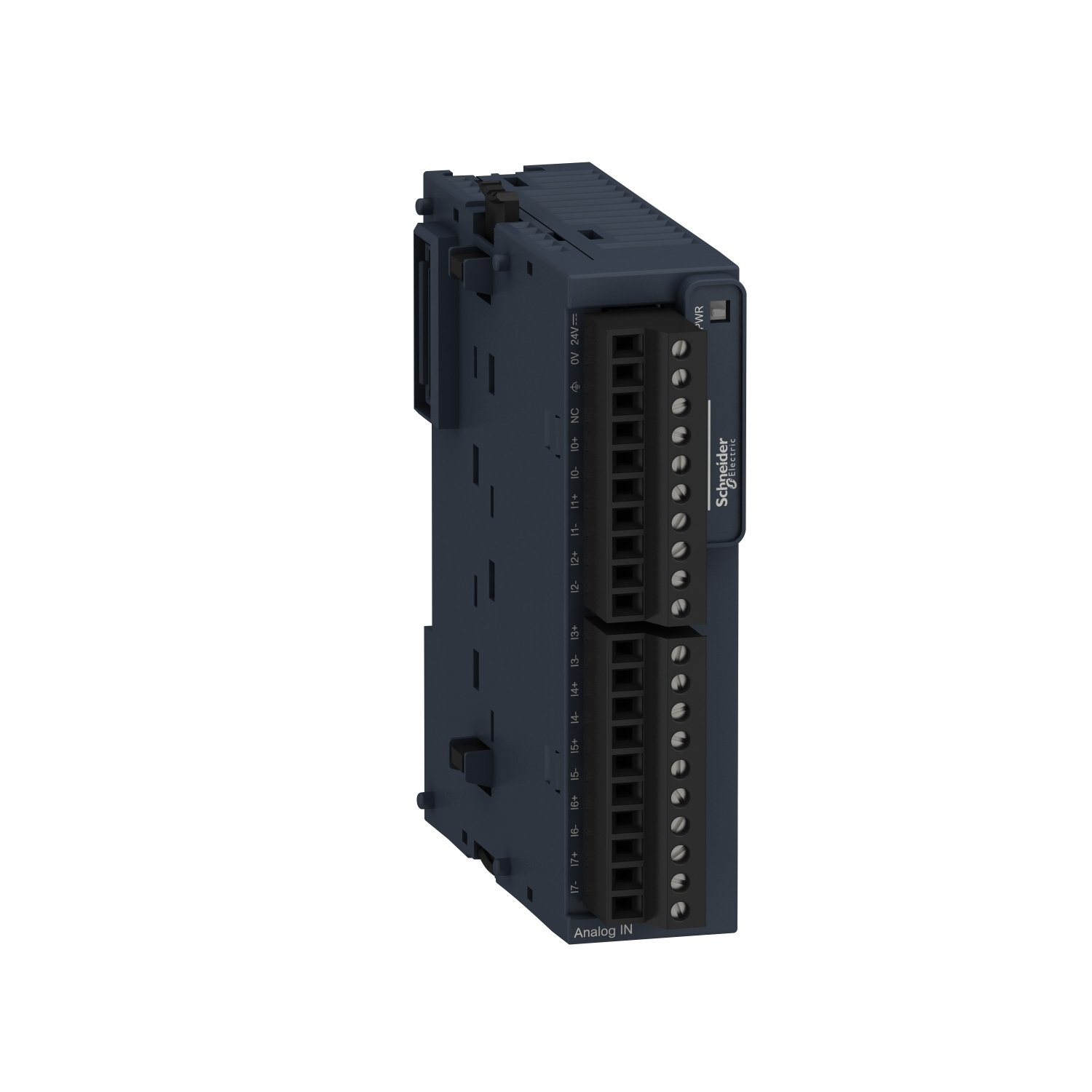

Schneider TM3AI8 | Modicon TM3 – 8 analog inputs (screw) 24Vdc

Technical Specifications:

1. Number of Inputs: The TM3AI8 provides 8 analog inputs, making it suitable for applications where multiple analog signals need to be monitored simultaneously.

2. Input Type: It accepts analog signals from external sensors and devices. These inputs can typically be configured for voltage (0-10V) or current (4-20mA), depending on the application and connected devices.

3. Operating Voltage: The module operates on a 24V DC supply voltage, which is standard in many industrial systems.

4. Connection Type: The module uses screw terminals for secure and easy wiring connections, ensuring a stable and reliable interface with external sensors or measurement equipment.

5. Signal Processing: The module is capable of processing analog signals with high accuracy, ensuring precise measurements for industrial processes that require constant monitoring.

6. Compact Design: Like other modules in the Modicon TM3 series, the TM3AI8 is compact, making it ideal for systems where space is limited, such as control panels or automation enclosures.

Features:

1. High-Precision Analog Input: The TM3AI8 provides precise and high-resolution analog inputs, enabling the system to monitor continuous values like temperature, pressure, flow, or other physical quantities. This ensures reliable readings for process control.

2. Screw Terminal Connections: The screw terminals allow for secure wiring, which is essential in industrial environments where mechanical stress, vibrations, or other factors can impact connection stability.

3. Flexible Input Configurations: The module can be used with both voltage (e.g., 0-10V) and current (e.g., 4-20mA) input types, providing flexibility for different types of industrial sensors and equipment.

4. 24V DC Operation: Operating at 24V DC, the module is compatible with standard industrial sensors and control systems that use this voltage, making it easy to integrate into existing automation setups.

5. Compact and Space-Saving: The TM3AI8 module’s compact design is well-suited for applications with limited panel space or where a modular, scalable system is needed.

6. Reliable Performance: The module is designed to deliver reliable and accurate analog signal measurements, even in demanding industrial environments where temperature fluctuations, electrical noise, and other conditions may be present.

Applications:

The Schneider TM3AI8 module is ideal for industrial applications that require the monitoring of multiple analog signals. Some typical applications include:

• Process Monitoring: Used for monitoring variables such as temperature, pressure, flow, or level in industrial processes like water treatment, HVAC, or chemical processing.

• Machine Monitoring: Suitable for monitoring machinery or equipment where analog signals, such as vibration or position, need to be measured.

• Automation and Control Systems: The module can be used in PLC-based control systems to measure the output of sensors and provide real-time feedback for control algorithms.

• Data Acquisition Systems: It is ideal for use in systems where real-time data acquisition from analog devices is required to maintain optimal operational performance.
