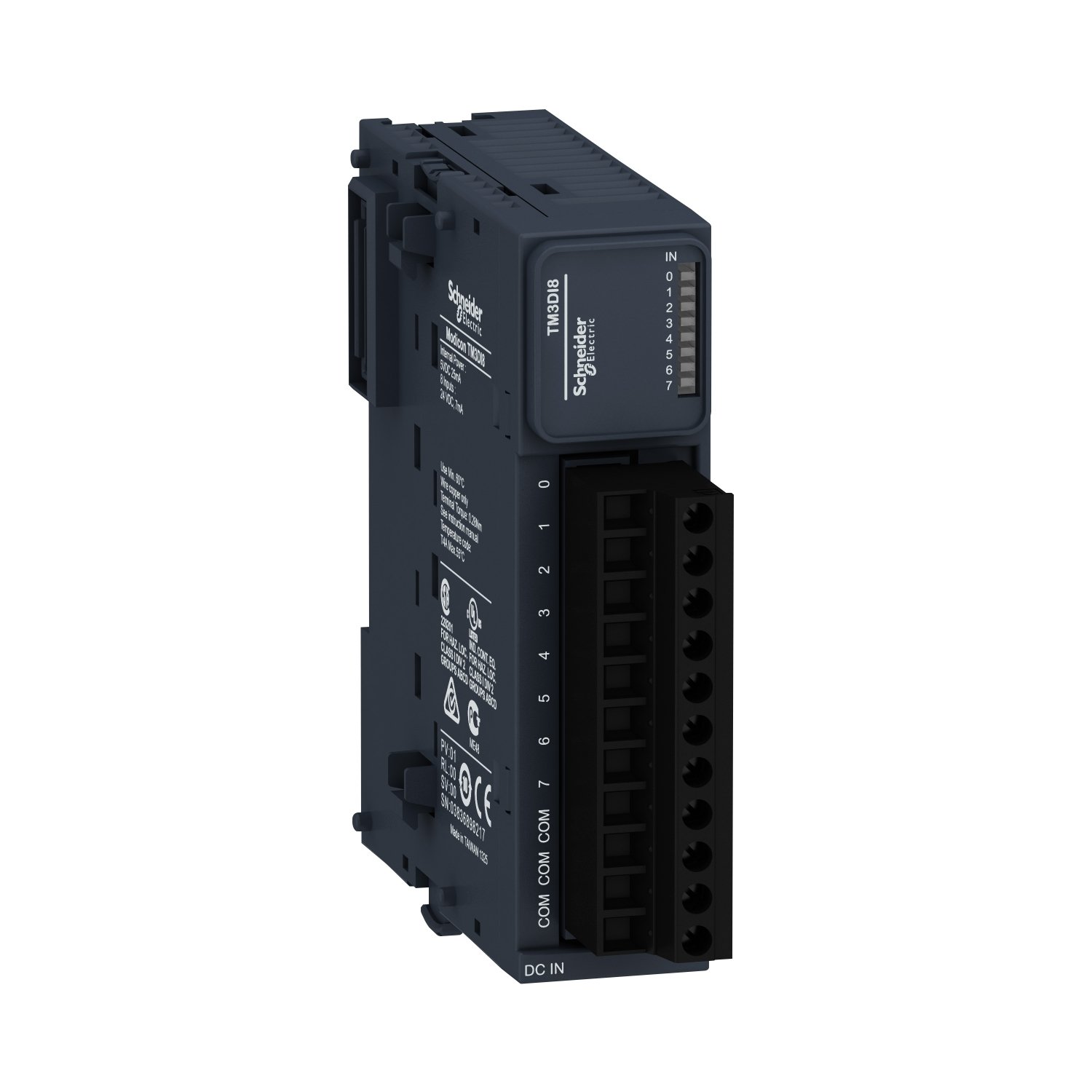

Schneider TM3DI8 | Modicon TM3 – 8 inputs (screw) 24Vdc

Technical Specifications:

1. Number of Inputs: The module features 8 digital inputs, designed for receiving binary signals from external devices.

2. Input Voltage: It operates on a 24V DC supply voltage, which is a common standard in industrial automation systems.

3. Input Type: The module supports digital inputs, which are ideal for applications where discrete (on/off) signals need to be monitored, such as reading states from push buttons, limit switches, or proximity sensors.

4. Connection Type: The module utilizes screw terminals for wiring, providing a secure and reliable connection to external devices. This method of connection is robust and widely used in industrial applications.

5. Operating Conditions: The unit is designed to operate in typical industrial environments, offering reliability in harsh conditions such as high vibrations, temperature fluctuations, and exposure to electrical noise.

6. Compact Design: As part of the Modicon TM3 series, the TM3DI8 features a compact form factor, making it ideal for applications where space is limited or when a more compact I/O module is required.

Features:

1. Flexible Digital Input Control: The TM3DI8 provides 8 digital inputs, which can be used for a wide range of industrial sensors and devices, enabling easy integration into automated systems for monitoring binary states.

2. Secure Screw Terminals: The use of screw terminals ensures a stable and secure connection, which is critical in industrial settings to prevent accidental disconnections or loose wiring.

3. 24V DC Operation: The module operates on a 24V DC supply, ensuring compatibility with most industrial control systems and sensors that also use 24V DC.

4. Compact and Space-Saving: The compact design of the module makes it well-suited for control panels with limited space, helping to optimize panel layouts and minimize system footprint.

5. Reliable Performance: The module is designed to offer reliable performance under a wide range of operating conditions, ensuring durability and stability in industrial environments.

6. Modular Integration: The TM3DI8 is part of the Modicon TM3 family, meaning it can be easily integrated with other Modicon I/O modules to create a fully modular automation system that is both scalable and flexible.

Applications:

The Schneider TM3DI8 module is ideal for applications in industrial automation systems where monitoring of binary signals is required. Some common applications include:

• Machine Control: Used to monitor the state of switches, sensors, or other binary devices in a machine control system.

• Process Control: Ideal for reading signals from limit switches or emergency stop buttons in process control systems.

• Monitoring Systems: It can be used for monitoring the status of various on/off states from external devices such as safety relays, door contacts, or pressure switches.
