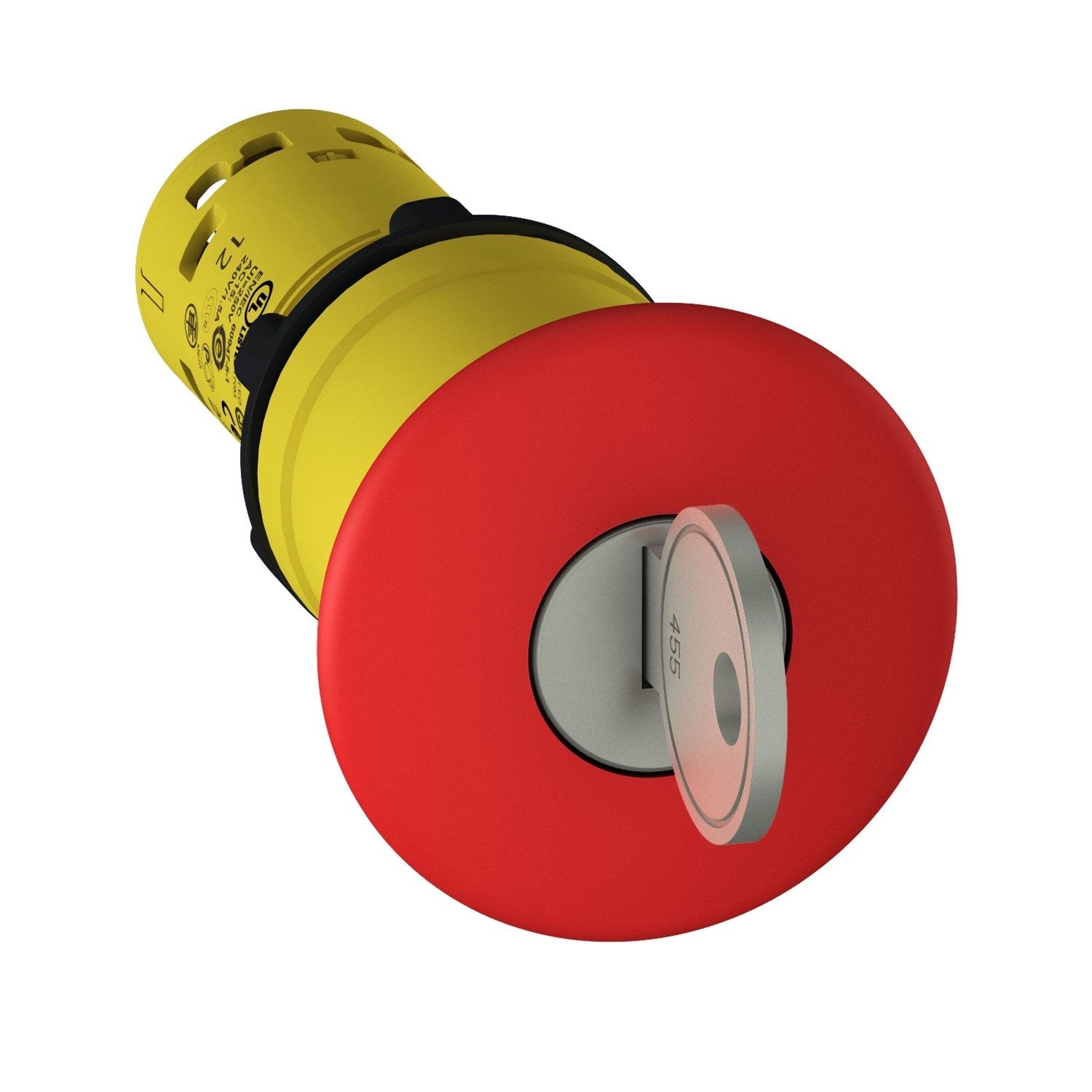

Schneider XB7NS9445 | Emergency stop push button, Harmony XB7, 22mm, red mushroom 40mm, trigger key release, 1NO + 1NC

Technical Specifications:

• Model: Schneider XB7NS9445 | Emergency Stop Push Button

• Series: Harmony XB7

• Button Type: Red Mushroom, 40mm diameter

• Mounting Size: 22mm

• Contact Configuration: 1NO + 1NC (1 Normally Open, 1 Normally Closed)

• Action Type: Trigger key release

• Operating Mechanism: Push to stop / turn to release

• IP Rating: Typically IP65 (ensures protection against dust and water jets)

• Material: Durable plastic construction for long-lasting performance in industrial settings

• Operating Temperature: Designed for use in a standard industrial temperature range (specific limits may vary)

• Certifications: Compliant with international standards for safety (such as IEC, UL, CE)

Features:

1. Emergency Stop Functionality:
   The XB7NS9445 push button is designed for emergency stop applications, ensuring rapid disconnection of electrical power or machinery in hazardous situations, reducing the risk of injury or damage.

2. High Visibility Red Mushroom Head:
   The red mushroom-shaped head with a 40mm diameter ensures that the emergency stop button is highly visible and easy to locate in emergency situations, even from a distance.

3. Trigger Key Release Mechanism:
   This emergency stop button features a trigger key release, which requires a key or tool to reset the button, preventing accidental or unauthorized resetting. This added safety feature ensures that machinery can only be restarted deliberately after an emergency stop.

4. 1NO + 1NC Contact Configuration:
   The 1NO + 1NC contact configuration provides both normally open and normally closed contacts. This allows the button to interrupt or establish circuits depending on the system’s design and wiring, enhancing safety by controlling both the stopping action and the resetting of the system.

5. 22mm Mounting Size:
   The 22mm size is a standard dimension, allowing the XB7NS9445 to fit into a wide variety of panel cutouts, making it easy to integrate into existing control systems and installations.

6. IP65 Protection:
   The push button is rated IP65, meaning it is dust-tight and can withstand water jets from any direction. This level of protection ensures that the button will remain functional in challenging environments, such as factories, workshops, or outdoor settings.

7. Durable Construction:
   Made from high-quality materials, the XB7NS9445 is designed to withstand harsh industrial conditions, ensuring reliability and long service life even in high-use environments.

Applications:

• Industrial Machines and Equipment:
  The XB7NS9445 is ideal for use in industrial machines and equipment where safety is crucial, allowing operators to immediately stop machinery in emergency situations to prevent harm or damage.

• Control Panels:
  This emergency stop button can be installed in control panels to ensure that operators can quickly stop equipment in the event of a malfunction or hazard.

• Manufacturing and Automation Systems:
  It is commonly used in automated systems and conveyor systems, providing a quick way to shut down operations when an emergency arises, helping to protect both workers and machinery.

• Emergency Safety Systems:
  In facilities where safety is critical, such as chemical plants, oil refineries, or high-risk manufacturing environments, the XB7NS9445 ensures that emergency shutdown procedures can be activated quickly and safely.

• Material Handling:
  The button is suitable for material handling systems where immediate stopping capability is needed to protect workers and prevent accidents in case of malfunction or hazard detection.
