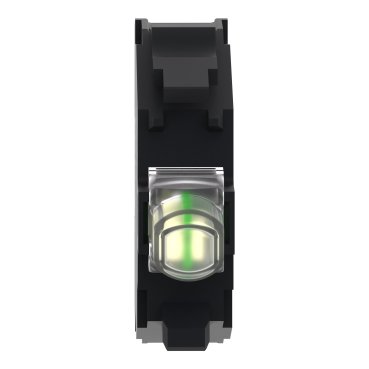

Schneider ZBVB1 | Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 24V AC DC
Original price was: EGP 2,937.00.EGP 1,704.00Current price is: EGP 1,704.00.
Description
Schneider ZBVB1 Description
The Schneider ZBVB1 is a component from the Harmony XB4 range of modular metal control and signaling units. This series is known for its robust design and high performance in demanding industrial environments. The ZBVB1, specifically, is a contact block that plays a crucial role in the reliable operation of control circuits.
Key Features and Benefits
- High Reliability: The ZBVB1 contact block is designed to provide dependable performance, ensuring the consistent operation of control circuits in various applications.
- Durable Construction: Made from high-quality materials, the ZBVB1 is built to withstand harsh industrial environments, offering long-lasting durability and resistance to mechanical wear.
- Easy Installation: The modular design of the ZBVB1 allows for easy installation and integration into control panels. It can be quickly attached to compatible devices, minimizing downtime during setup or maintenance.
- Compact Design: Its compact size makes it suitable for use in space-constrained applications, allowing for efficient use of control panel real estate.
- Versatile Application: The ZBVB1 is compatible with a wide range of Harmony XB4 series control and signaling devices, making it a versatile component for various industrial applications.
- Standards Compliance: The ZBVB1 meets international standards for safety and performance, ensuring reliable operation in compliance with industry regulations.
Applications
- Industrial Automation: Ideal for use in automated control systems, providing reliable contact for various control functions.
- Manufacturing: Suitable for use in manufacturing environments where robust and reliable control components are required.
- Machine Control: Effective in machine control panels, ensuring consistent and reliable operation of machinery.
Technical Specifications
- Component Type: Contact block
- Range: Harmony XB4
- Material: High-quality, durable construction
- Mounting Type: Easy and secure attachment to compatible devices
- Standards Compliance: Meets international safety and performance standards
Conclusion
The Schneider ZBVB1 contact block is an essential component for reliable and efficient control circuits. Its high reliability, durable construction, and ease of installation make it an excellent choice for industrial automation, manufacturing, and machine control applications. Trust the ZBVB1 to provide consistent performance and enhance the overall functionality of your control systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XB5 Harmony XB4 |
|---|---|
| Product or Component Type | Light block |
| Device short name | ZBV |
| Sale per indivisible quantity | 5 |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Signalling type | Steady |
| Light source | Universal LED |
| Bulb base | Integral LED |
| Light block supply | Direct |
| Light source colour | White |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Net Weight | 0.037 lb(US) (0.017 kg) |
|---|---|
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Supply voltage limits | 19.2…30 V DC 21.6…26.4 V AC |
| Current Consumption | 15 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 |
| Mounting of block | Front mounting |
| Electrical composition code | M1 M2 M3 M4 M5 M6 M10 MF1 P1 P2 PF1 |
| device presentation | Basic element |
| protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| IP degree of protection | IP20 IEC 60529 |
| Standards | JIS C8201-5-1 IEC 60947-1 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-5 IEC 60947-5-4 UL 508 JIS C8201-1 |
| Product Certifications | UL Listed CSA |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
| [Us] rated supply voltage | 24 V |
| Category | US10CS222469 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110089615 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.394 in (1.000 cm) |
| Package 1 Width | 1.299 in (3.300 cm) |
| Package 1 Length | 1.575 in (4.000 cm) |
| Package 1 Weight | 0.310 oz (8.800 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 1.575 in (4.000 cm) |
| Package 2 Width | 2.165 in (5.500 cm) |
| Package 2 Length | 2.165 in (5.500 cm) |
| Package 2 Weight | 1.764 oz (50.000 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 11.811 in (30.000 cm) |
| Package 3 Width | 11.811 in (30.000 cm) |
| Package 3 Length | 15.748 in (40.000 cm) |
| Package 3 Weight | 19.152 lb(US) (8.687 kg) |
| Warranty | 18 months |
|---|
