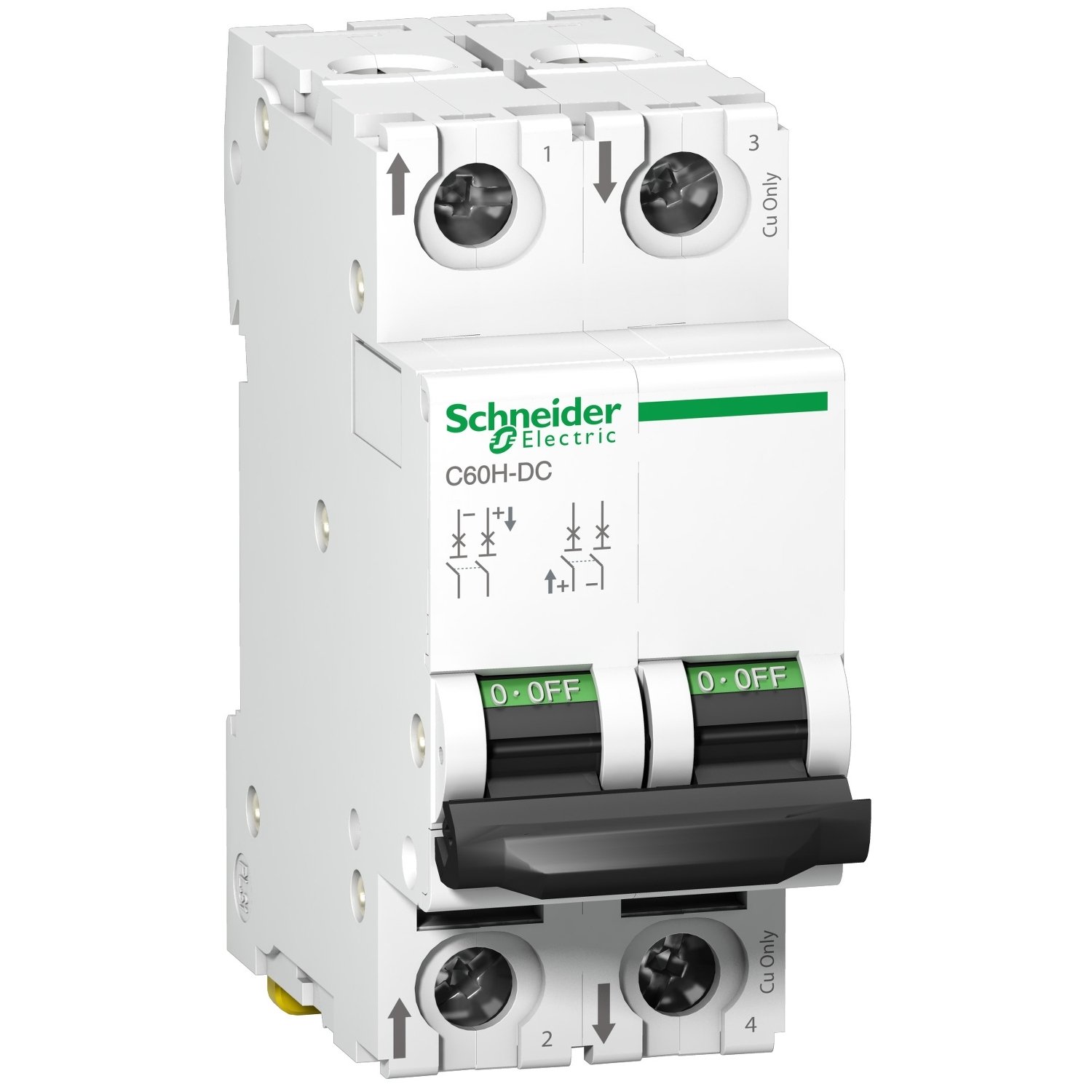

Schnieder A9N61539 | miniature circuit breaker – C60H – 2 poles – 63 A – C curve
Schnieder A9N61539 | miniature circuit breaker – C60H – 2 poles – 63 A – C curve
Original price was: EGP 45,678.00.EGP 29,919.00Current price is: EGP 29,919.00.
Description
Schnieder A9N61539 | miniature circuit breaker – C60H – 2 poles – 63 A – C curve
Technical Specifications
-
Model Number: A9N61539
-
Product Series: C60H
-
Device Type: Miniature Circuit Breaker (MCB)
-
Number of Poles: 2 (Double Pole)
-
Rated Current: 63 Amps
-
Tripping Curve: C Curve
-
Operating Voltage: 230/400V AC
-
Frequency: 50/60 Hz
-
Breaking Capacity: Up to 6 kA
-
Mounting: DIN Rail
-
Degree of Protection: IP20 (when used in an appropriate enclosure)
-
Standards: IEC 60898-1 compliant
Key Features and Benefits
-
Provides reliable protection against overload and short-circuit conditions
-
C curve tripping allows tolerance for temporary current surges typically caused by motor startups
-
Double-pole mechanism ensures complete disconnection for enhanced safety
-
Thermal-magnetic trip unit offers dual protection
-
Clear visual indicator for ON/OFF/TRIPPED status
-
Compact design suitable for space-constrained distribution boards
-
Manual reset function simplifies maintenance and troubleshooting
-
Built to last, with high mechanical and electrical endurance
Applications
Residential:
-
Protection of high-demand circuits such as water heaters, air conditioners, and electric ovens
-
Ideal for use in main or sub-distribution boards
Commercial:
-
Power protection for HVAC systems, lighting panels, and high-power appliances in offices, shops, or restaurants
-
Ensures stable operation of electrical distribution in buildings
Industrial:
-
Suitable for protecting motors, pumps, and other inductive loads in manufacturing environments
-
Used in control panels, machinery feeds, and production lines
Backup Power Systems:
-
Effective in generator output circuits or uninterruptible power supply (UPS) systems
-
Offers secure switching and protection in high-load emergency systems
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Acti9 |
|---|---|
| Product name | Acti9 C60H-DC |
| Product or component type | Miniature circuit-breaker |
| Device short name | C60H-DC |
| Device application | Distribution |
| Poles description | 2P |
| Number of protected poles | 2 |
| [In] rated current | 63 A at 25 °C |
| Network type | DC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 10 kA Icu at 440 V DC conforming to EN 60947-2 10 kA Icu at 440 V DC conforming to IEC 60947-2 6 kA Icu at 500 V DC conforming to EN 60947-2 6 kA Icu at 500 V DC conforming to IEC 60947-2 20 kA Icu at 220 V DC conforming to GB 14048.2 20 kA Icu at 220 V DC conforming to IEC 60947-2 20 kA Icu at 250 V DC conforming to GB 14048.2 20 kA Icu at 250 V DC conforming to IEC 60947-2 |
| Utilisation category | Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 Yes conforming to EN 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 500 V DC |
| [Ics] rated service breaking capacity | 15 kA 75 % conforming to EN 60947-2 - 220 V DC 15 kA 75 % conforming to IEC 60947-2 - 220 V DC 15 kA 75 % conforming to EN 60947-2 - 250 V DC 15 kA 75 % conforming to IEC 60947-2 - 250 V DC 4.5 kA 75 % conforming to EN 60947-2 - 500 V DC 4.5 kA 75 % conforming to IEC 60947-2 - 500 V DC 7.5 kA 75 % conforming to EN 60947-2 - 440 V DC 7.5 kA 75 % conforming to IEC 60947-2 - 440 V DC |
| [Ui] rated insulation voltage | 500 V DC conforming to IEC 60947-2 500 V DC conforming to EN 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| control type | Toggle |
| local signalling | ON/OFF indication |
| Mounting mode | Fixed |
| mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: standard |
| 9 mm pitches | 4 |
| Net weight | 0.256 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 3000 cycles L/R = 2 ms |
| Provision for padlocking | Padlockable |
| Locking options description | In position O |
| Tightening torque | Power circuit: 2.5 N.m top or bottom |
| earth-leakage protection | Without |
| Standards | EN 60947-2 IEC 60947-2 |
|---|---|
| Pollution degree | 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-2 |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.3 cm |
| Package 1 Width | 3.2 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 251 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 9 cm |
| Package 2 Width | 8 cm |
| Package 2 Length | 23 cm |
| Package 2 Weight | 1.555 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 19.147 kg |
| Warranty | 18 months |
|---|
