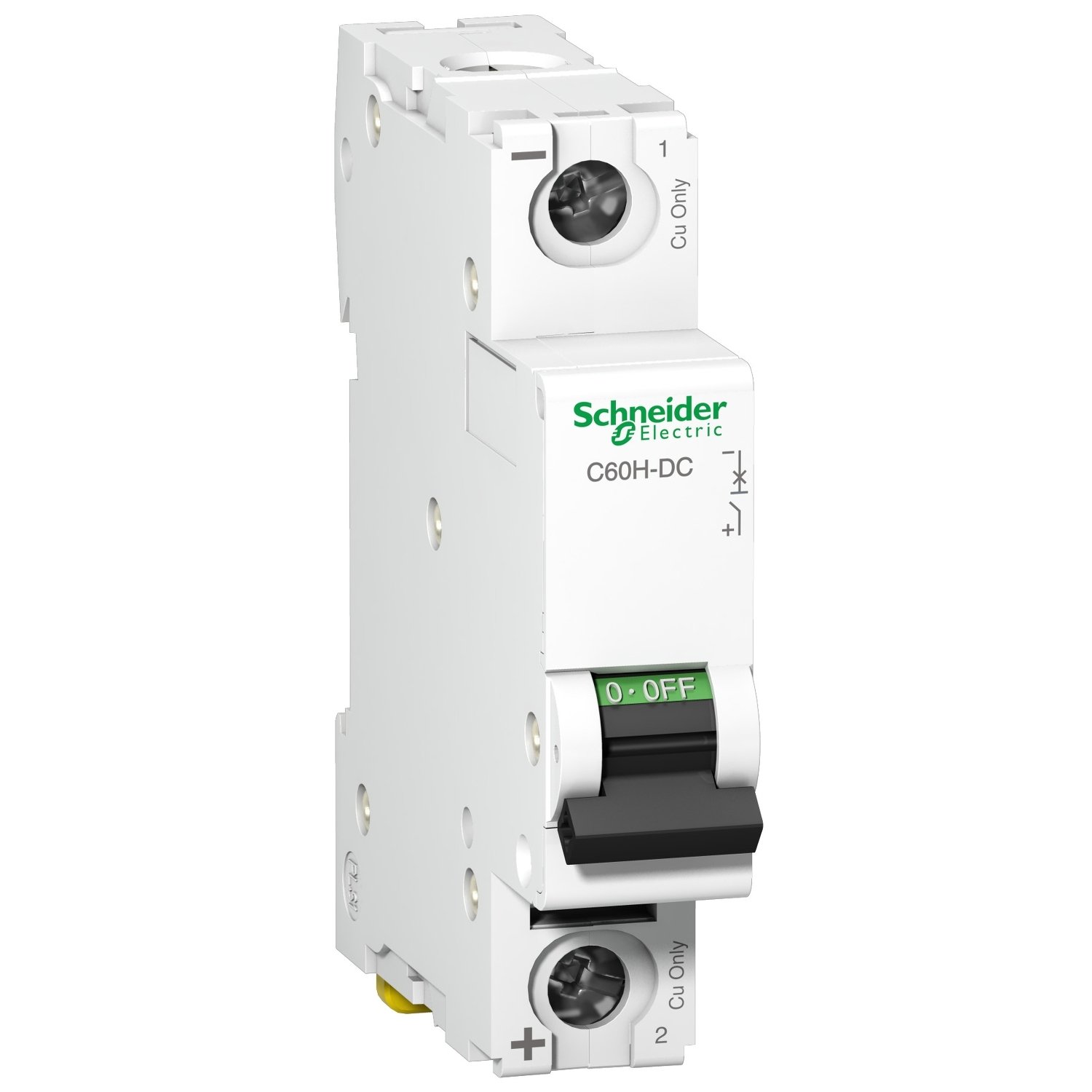

Schneider A9N61513 | miniature circuit breaker – C60H – 1 pole – 25 A – C curve

Technical Specifications A9N61513

• Brand: Schneider Electric

• Product Code: A9N61513

• Series: Acti9 C60H

• Device Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 1 Pole

• Rated Current (In): 25 Amperes

• Tripping Curve: Type C (trips at 5 to 10 times the rated current)

• Rated Voltage: 230/400 V AC

• Frequency: 50/60 Hz

• Breaking Capacity: 6 kA (IEC/EN 60898-1)

• Standard Compliance:

  • IEC/EN 60898-1

  • IEC/EN 60947-2

• Mounting: DIN rail (35 mm standard rail)

• Terminal Type: Screw clamp terminals (top and bottom)

• Protection Degree: IP20 (when mounted inside an enclosure)

• Ambient Temperature Range: -25°C to +60°C

• Mechanical Endurance: Over 20,000 operations

• Electrical Endurance: Over 10,000 operations

Key Features:

• Efficient 25 A Circuit Protection
  Provides safe disconnection during overloads or short circuits to protect downstream circuits and equipment.

• C Curve Tripping Characteristics
  Ideal for general-use circuits that occasionally experience moderate inrush currents, such as from lighting or motor startup.

• High Breaking Capacity (6 kA)
  Capable of safely interrupting fault currents in residential and commercial environments.

• Modular & Compact Design
  Easily integrates with other modular protection and control devices in the Acti9 system.

• Fast Installation & Maintenance
  DIN rail mounting with accessible screw terminals allows for quick and secure setup.

• Longevity and Reliability
  Built for long-term use with durable internal components and rigorous Schneider quality control.

Applications:

Residential Use:

• Electrical circuit protection for lighting, sockets, and appliances.

• Integration in apartment and house distribution boards.

Commercial Installations:

• Office circuits, lighting systems, data centers, HVAC control panels.

• Secure protection for systems with frequent usage.

Light Industrial Settings:

• Equipment panels, small machinery, and automation controls.

• Suitable for non-inductive loads and light motor applications.

Public Sector and Infrastructure:

• Electrical circuits in schools, hospitals, hotels, and public facilities.

• Safe operation of emergency lighting and critical power circuits.
